Start of work
11

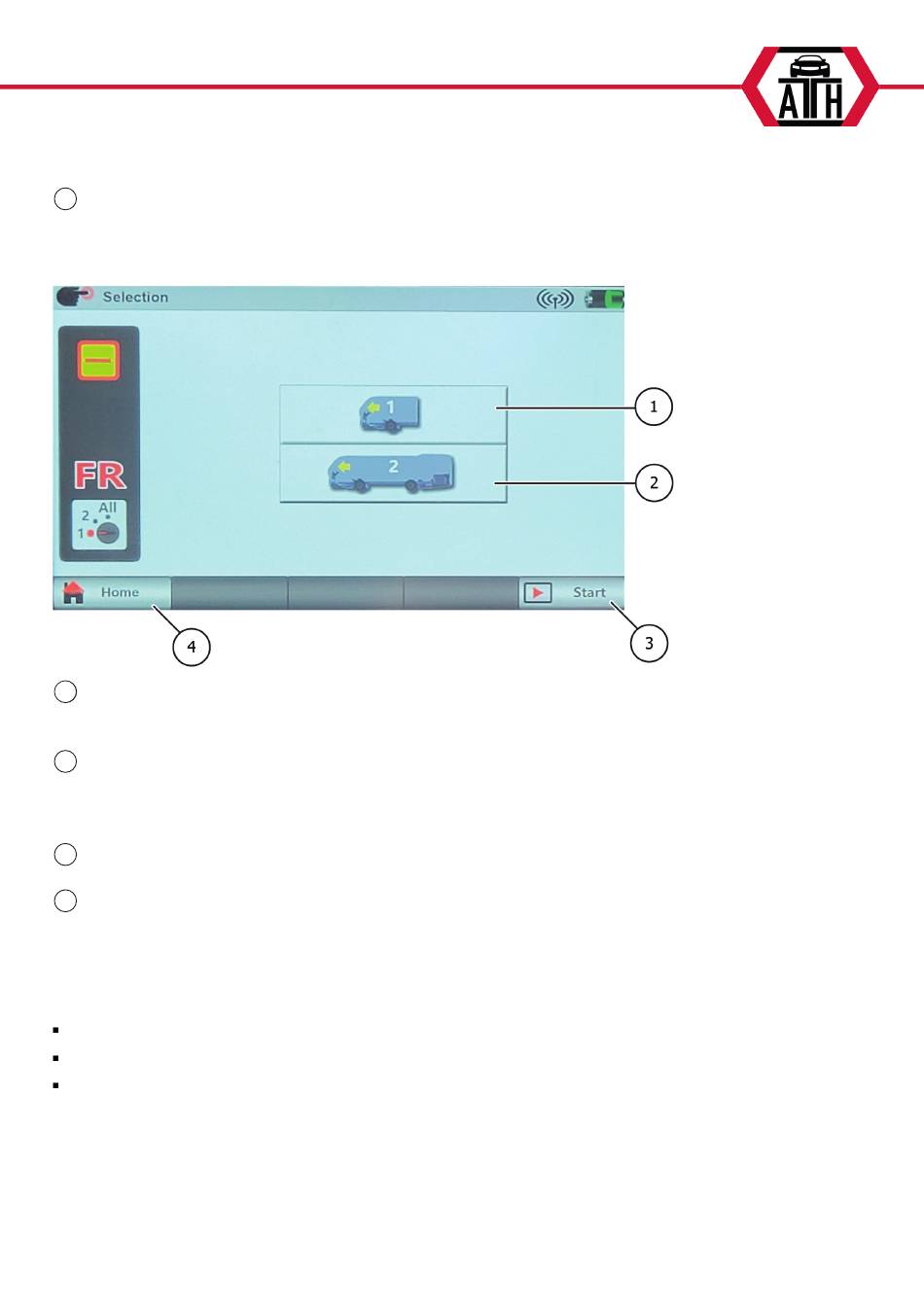

If the operating page is called up with this key, you can select whether you want to work in mode 1, 2 or group mode
Selection page
Symbol 1 Axis
1
Press this key to call up the operating page
If the operating page is called up with this symbol, the wheel gripper can only work in mode 2
Symbol 2 or more axes
2
Press this key to enter the operation page.
The number on the icon indicates the number of axes.
When the operation page is called up with this symbol, the column can only work in ALL mode
Start working
3
Press this key to enter the operation page
Return to the main page
4
Press this key to return to the main page
Operating pages
There are three types of operation pages:
Individual operation page, where you can operate the current wheel gripper
Axis operation page, where you can operate the current and the opposite wheel gripper
Group operation page, on which you can control all wheel grippers
