Description - ATH RG 5.5 WG Bedienungsanleitung

1.2

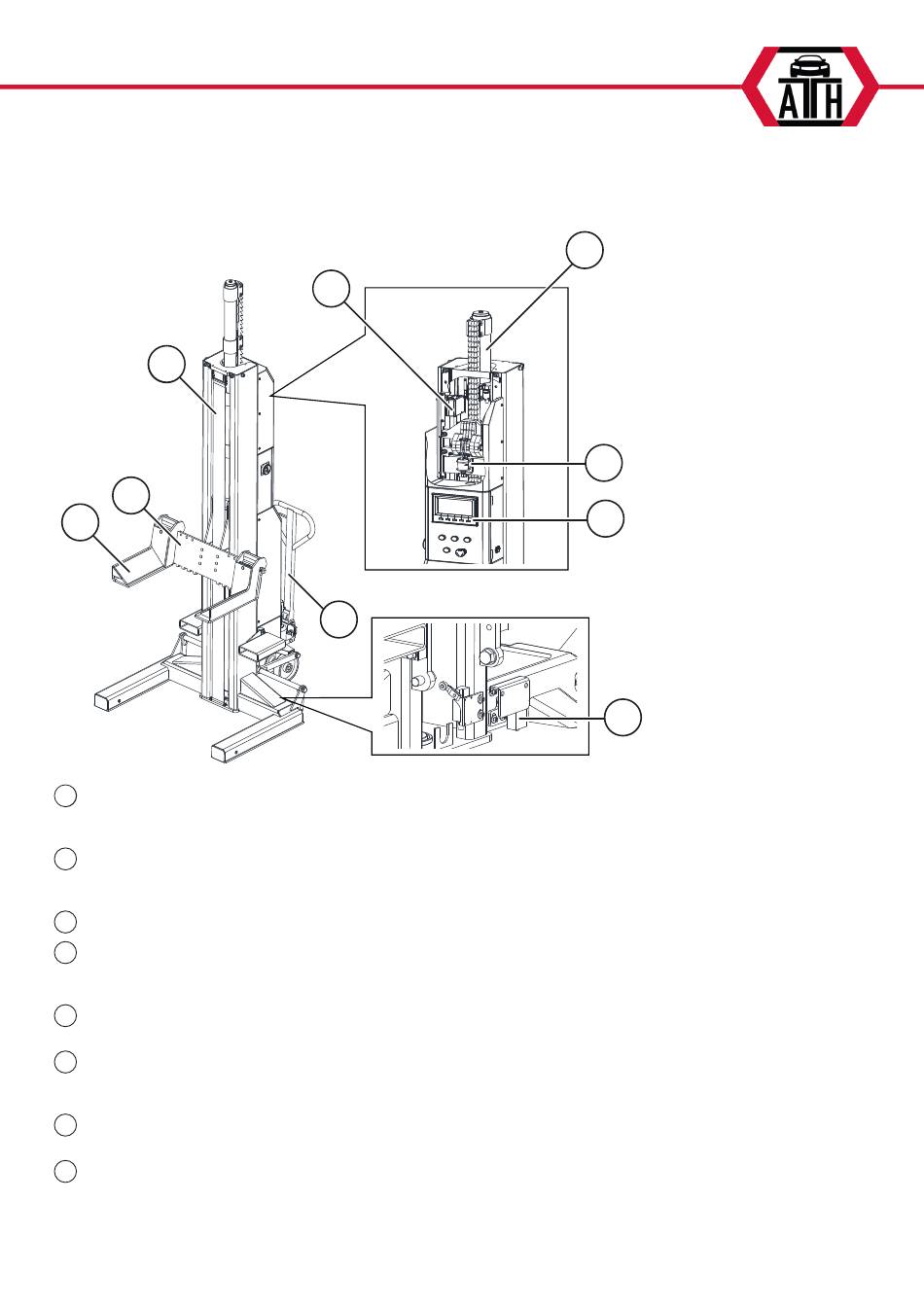

Description

1
4
5
Lifting column
1
In the lifting column, the lift truck is guided by rollers during the up and down movement. The hydraulic lifting cylinder is
also located here.
Unlocking magnet
2
Electromagnet for unlocking the safety catch during the lowering process. The safety detent prevents independent lowering
of the platform in the event of an error
Hydraulic cylinder
3
Lifting carriage
4
The lifting carriage carries the boom (load handling device). It is moved up and down by the hydraulic cylinder, the
guidance in the column is done by rollers.
Gripping arms
5
This is where the adjustable gripping arms and support plates are located. The gripper arms are adjustable in width.
Control box
6
The complete electrical control system is located here. All pushbuttons are protected by a front ring to prevent unintentional
actuation. Furthermore, all movements are immediately interrupted when the pushbuttons are released (dead-man control).
Displacement sensor
7
Draw-wire displacement sensors measure linear movements via a highly flexible steel cable
Travel set
8
Used to move and position the lifting platform. Traversing may only take place when empty and without load
® Copyright ATH-Heinl GmbH & CO.KG, All rights reserved / Misprints and technical changes reserved
7
8
Release date: 10-2022 / Product manufacturer ATH-Heinl GmbH & CO. KG
3
2
6
9
5
