Operation - ATH RG 5.5 WG Bedienungsanleitung

1.3

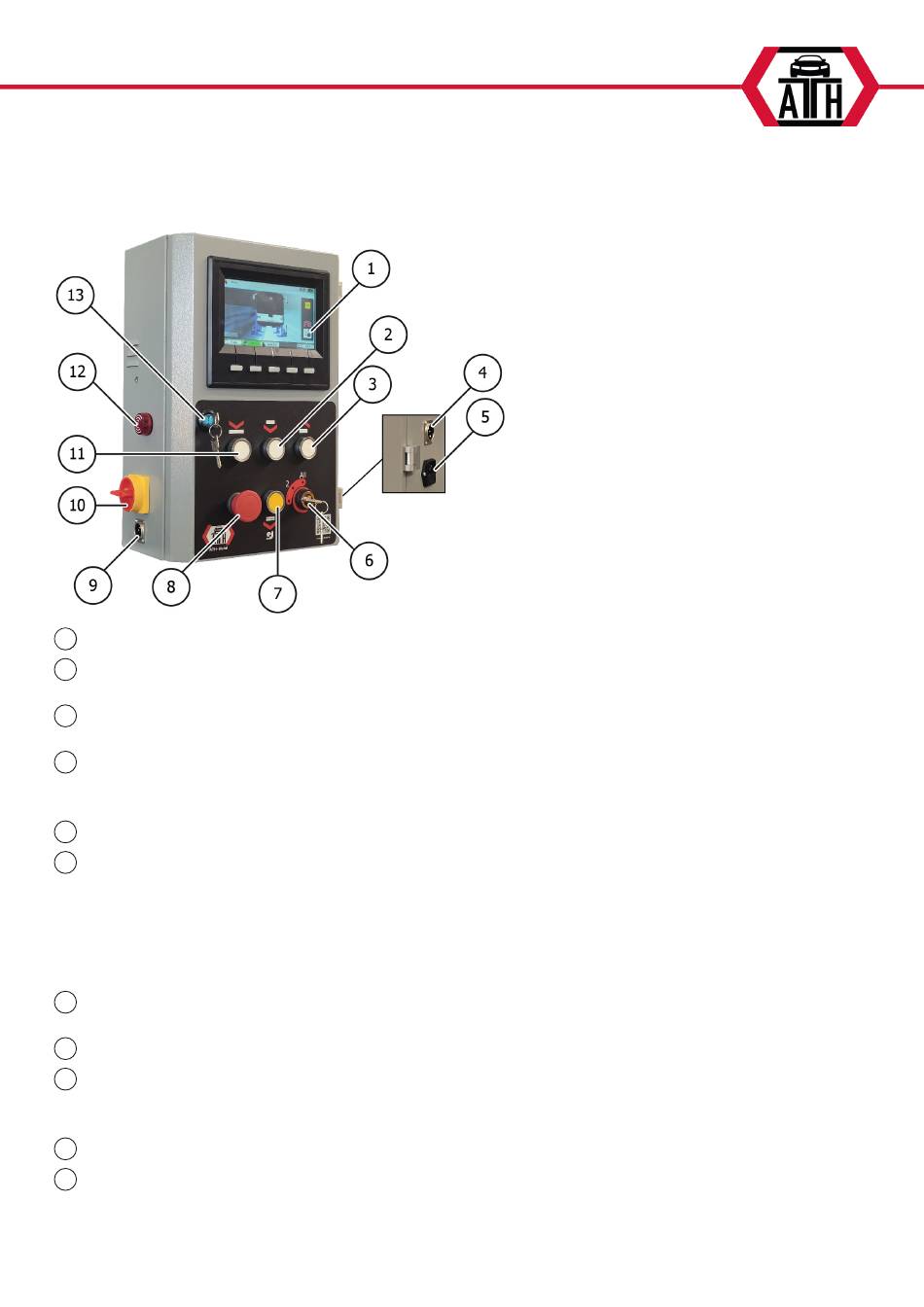

Operation

Display
1
Lowering button 1
2
to lower the wheel gripper (detents and lowering valve are opened)
Lift button
3
to lift the wheel gripper
Socket for communication cable
4
When the communication cable is connected, the system can be switched to wired communication
The communication cable is NOT included in the delivery
Charging cable connection (230V)
5
Mode selection switch
6
The mode selection switch can be set in three positions:
Position 1: Only the current column can be operated.
Position 2: Only the columns on the current axis can be operated
Position All: All columns can be operated
Note: The mode selection switch must be set to the corresponding position on all columns!
Lowering button 2
7
This has the same function as button Lower 1, but the lowering process is slower.
Emergency stop switch
8
Socket for communication cable
9
When the communication cable is connected, the system can be switched to wired communication
The communication cable is NOT included in the scope of delivery
Main switch
10
Button Parking (Lock)
11
to lower the wheel gripper into the notch (only the lowering valve is opened)
