5. Release the lift button when the vehicle is raised to the desired height
6. Park the carriages on the locks using the lock button
Lowering
1. Set the mode selection switches on all columns to the correct position
2. Make sure the vehicle area is clear of people and objects
3. Lower the vehicle using the lowering button and check the screen while doing so to ensure that all
carriages are lowered synchronously
4. When the vehicle is lowered to 100 mm above the ground, the system stops and you should check if the
wheels are handled correctly.
5. If so, continue lowering the vehicle with the Lower button until it is completely lowered.
Manual lowering
In case of emergency it is possible to lower the vehicle manually:
1. Lock the main switch
2. Remove the rear cover of the column
3.

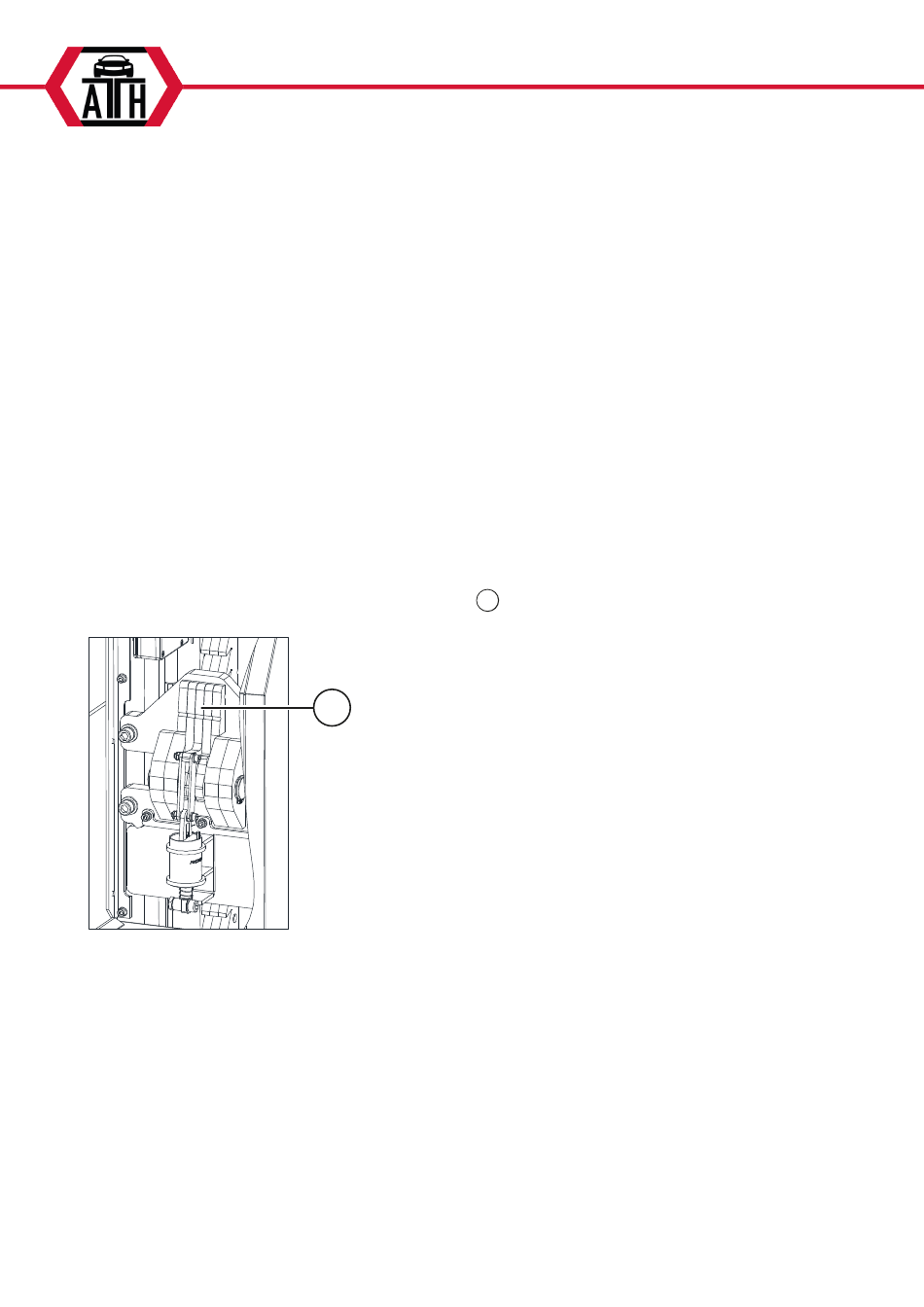

If the mechanical lock is activated, release the hook
4. Turn the emergency lowering screw on the hydraulic pump counterclockwise to lower the fork. Make
sure that you never lower the fork more than 3 times (each locking height is about 30 mm).
5. Make sure the lock is re-engaged before attempting to lower another fork.
6. Repeat the above procedure to lower all wheel grabs completely
7. Retighten the emergency lowering screw by turning it clockwise. The wheel gripper cannot be lowered
when the lowering valve is open
3.4

Display

Home page
Pressing the function keys below the display has the same function as touching the respective key on the
screen.
