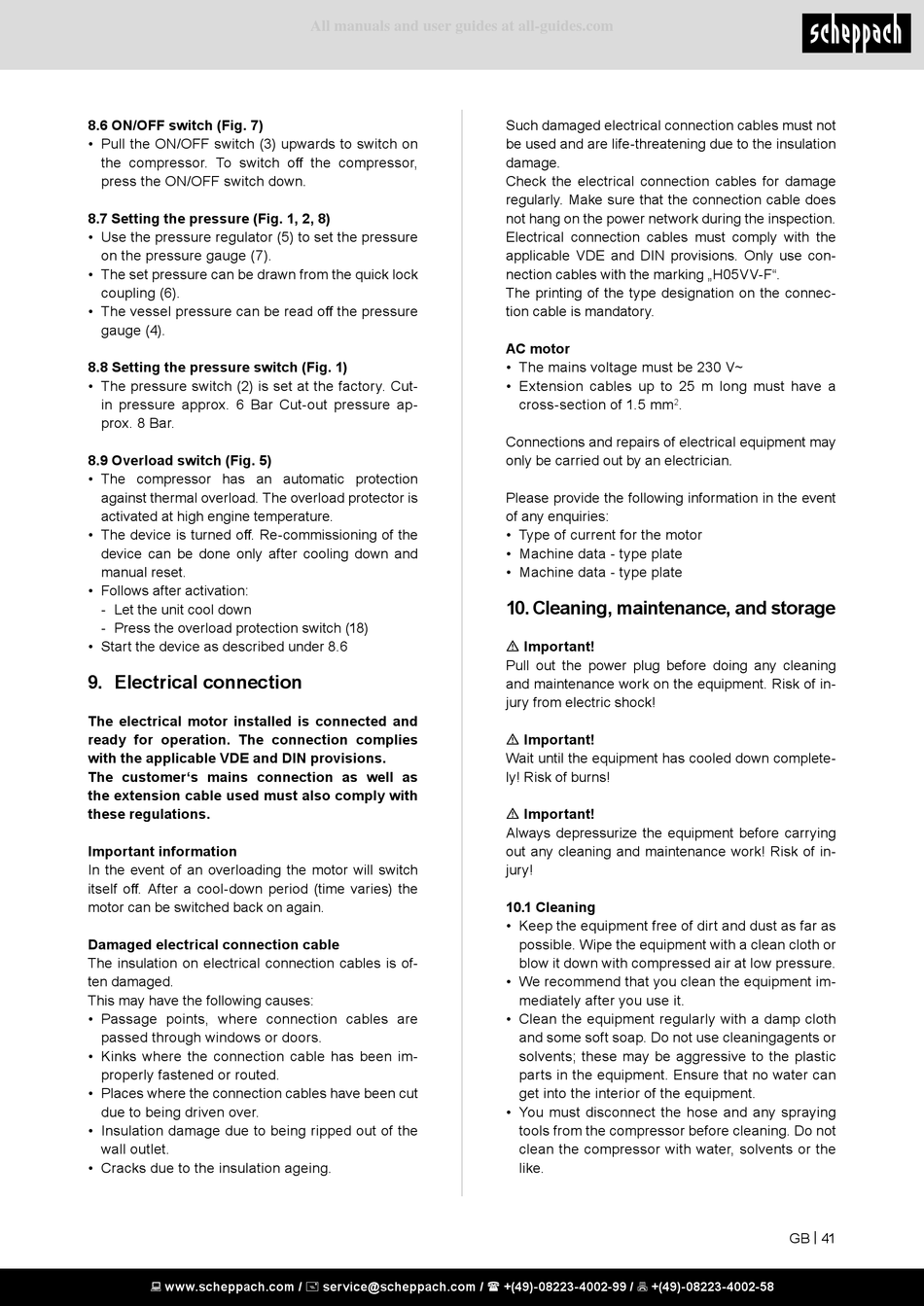

8.6 ON/OFF switch (Fig. 7)
• Pull the ON/OFF switch (3) upwards to switch on
the compressor. To switch off the compressor,
press the ON/OFF switch down.
8.7 Setting the pressure (Fig. 1, 2, 8)
• Use the pressure regulator (5) to set the pressure
on the pressure gauge (7).
• The set pressure can be drawn from the quick lock
coupling (6).
• The vessel pressure can be read off the pressure
gauge (4).
8.8 Setting the pressure switch (Fig. 1)
• The pressure switch (2) is set at the factory. Cut-
in pressure approx. 6 Bar Cut-out pressure ap-
prox. 8 Bar.
8.9 Overload switch (Fig. 5)
• The compressor has an automatic protection
against thermal overload. The overload protector is
activated at high engine temperature.
• The device is turned off. Re-commissioning of the
device can be done only after cooling down and
manual reset.
• Follows after activation:
- Let the unit cool down
- Press the overload protection switch (18)
• Start the device as described under 8.6

9. Electrical connection

The electrical motor installed is connected and
ready for operation. The connection complies
with the applicable VDE and DIN provisions.
The customer's mains connection as well as
the extension cable used must also comply with
these regulations.
Important information
In the event of an overloading the motor will switch
itself off. After a cool-down period (time varies) the
motor can be switched back on again.
Damaged electrical connection cable
The insulation on electrical connection cables is of-
ten damaged.
This may have the following causes:
• Passage points, where connection cables are
passed through windows or doors.
• Kinks where the connection cable has been im-
properly fastened or routed.
• Places where the connection cables have been cut
due to being driven over.
• Insulation damage due to being ripped out of the
wall outlet.
• Cracks due to the insulation ageing.
