CONNECTIONS

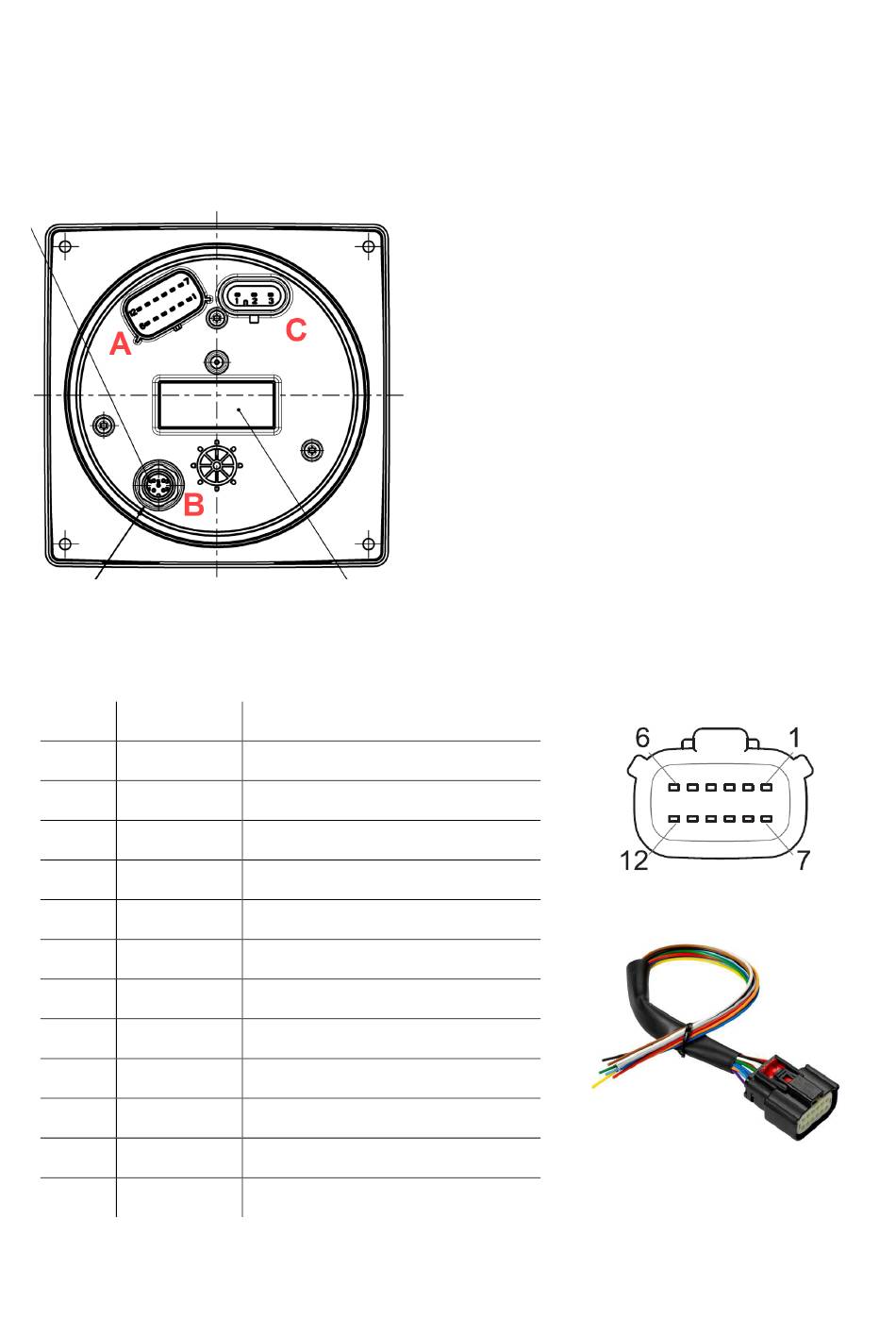

ENGINE CONNECTOR [A]
Pin No. Wire color
1 Red
2 Black
3 White
4 Green
5 Blue
6 Blue / White
7 Yellow
8 Grey
9 Brown
10 Orange
11 Light Blue
12 Violet
Description
KL. 30 – Battery power 12 / 24 V
KL. 31 - Ground
Alarm output
Frequency sensor signal - RPM
SAE J1939 – CAN L
SAE J1939 – CAN H
KL. 15 – Ignition positive
Resistive sensor input
Resistive sensor input
KL.58 – Illumination Day/Night
4-20 mA sensor input
4-20 mA sensor input
CONNECTIONS
Molex MX150 12-poles connector, cable view
and wire harness A2C1507870001 (included)
A2C15587600
