PANEL MOUNTING

•
Do not drill holes or installation openings in supporting or stabilizing beams!
•
The mounting location must have sufficient clearance behind the mounting holes or openings.
•
Drill small holes with the drill, if necessary, enlarge them using a conical cutter, scroll saw, tail saw or file and finish
them. Deburr the edges. It is essential to observe the safety instructions of the tool manufacturer.

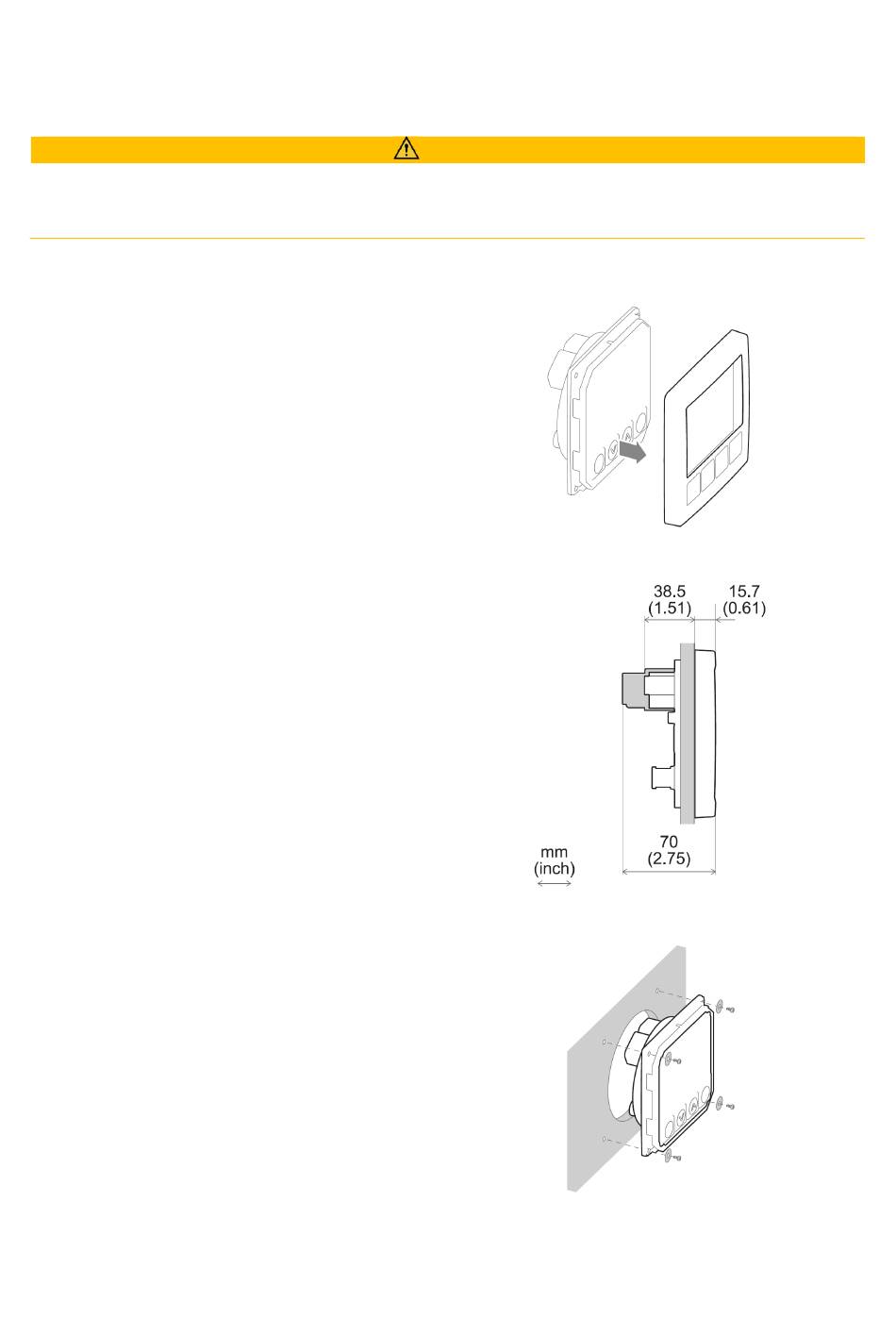

1. If installed, remove the bezel [A].
2. Drill a hole in the panel using the drilling
template (see next page of this
document) and considering the device
dimensions [B].
3. Thread the cables through the hole and
connect the connectors.
NOTE: screw in M12 connectors with care.
If they screw with difficulty, remove and
screw them back in.
4. Insert the device from the front and
tighten the four screws [C].
5. Remove the protection film from the
display and make sure it is clean and dry.
6. Install the bezel with the sun cover.
WARNING
A
B
C
INSTALLATION
A2C15587600
