Veratron OCEANLINK 4.3 Benutzerhandbuch Seite 10

NMEA 2000® CONNECTOR [B]
Pin No. Description
1 Shield
2 NET-S (V+)
3 NET-C (V-)
4 NET-H (CAN H)
5 NET-L (CAN L)
EASYLINK CONNECTOR [C]
Pin No. Description
1 12V Power
2 EasyLink Data
3 GND

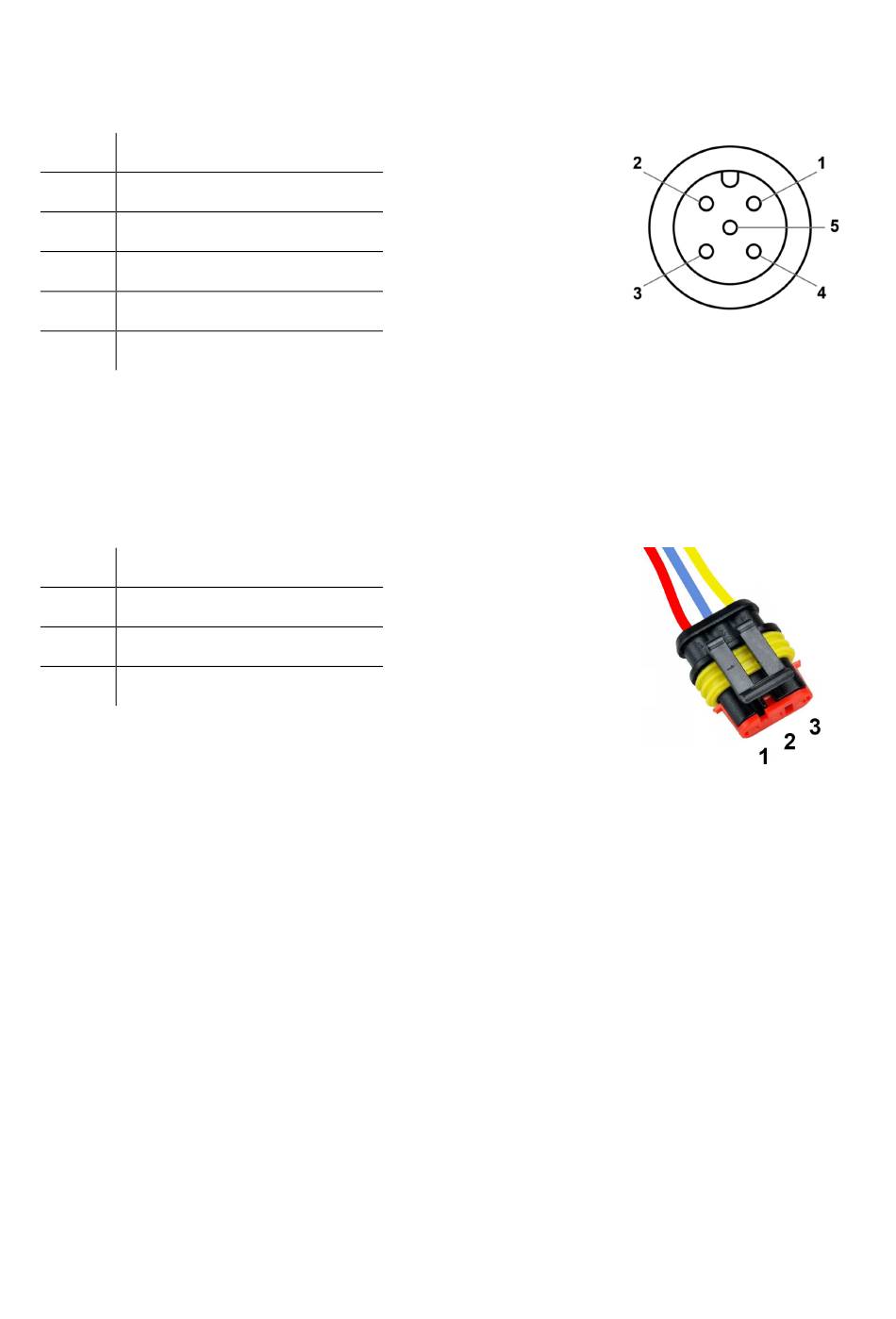

CONNECTIONS
Micro-C M12 5 poles plug
male, cable view
AMP SuperSeal 1.5 3 poles plug
female, cable view
A2C15587600
