SCREENS
CONFIGURATION

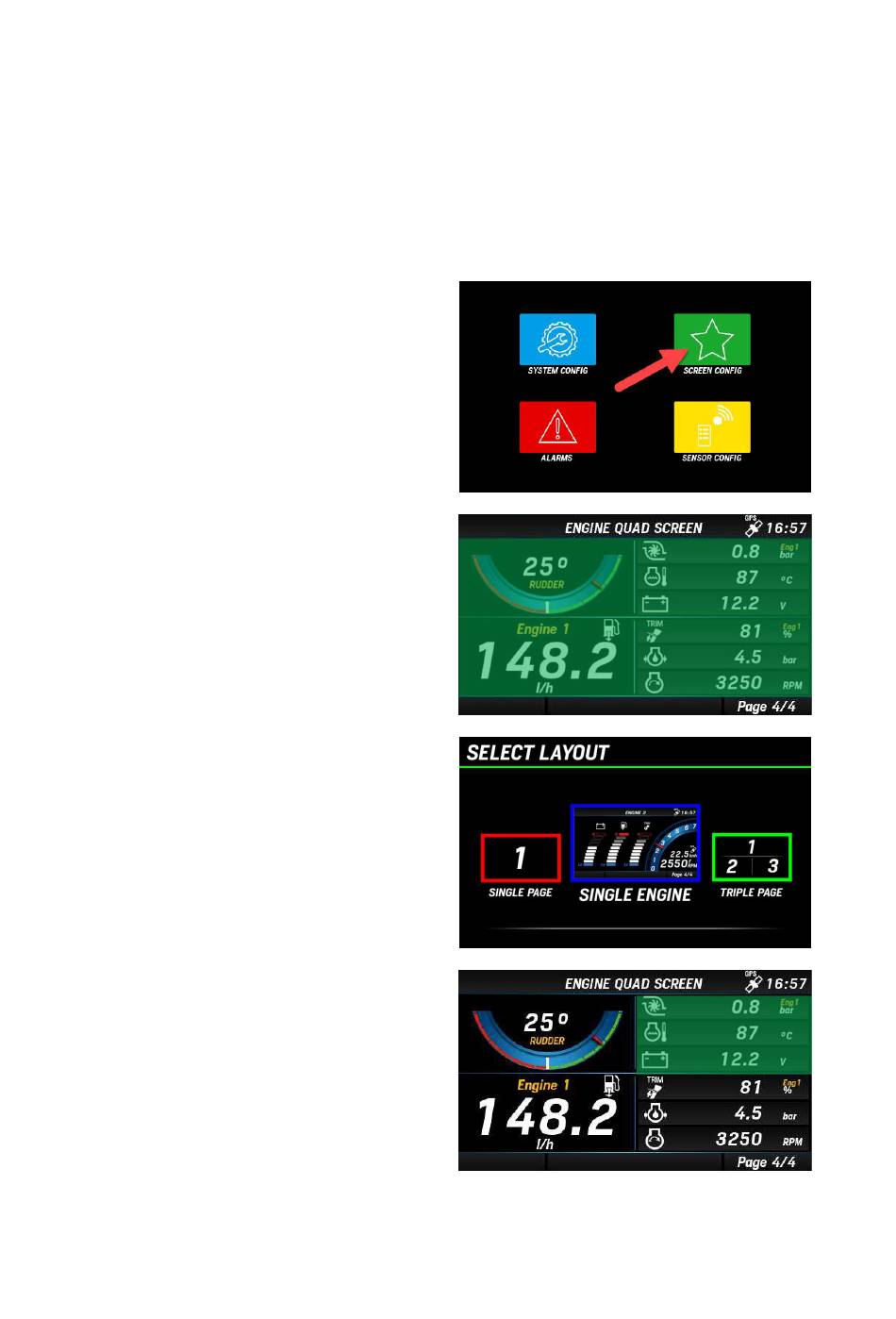

1. Access the HOME screen by pressing the
MENU button and select SCREEN CONFIG
to enter the screens' configuration.
2. Scroll the favorite screens until the one to be
customized (or deleted) is displayed and
press ENTER to confirm.
To add a new screen at the end of the
favorites, just scroll until an empty screen
slot is selected.
3. Choose the screen layout for the new screen
among the ones described in "Screens
layouts".
To delete the selected screen, select
REMOVE PAGE.
4. Depending on the chosen layout it is
possible to customize some parts of the
screen like data fields or bar graphs.
The currently selected item is highlighted in
green color.
Scroll through the customizable items by
pressing the UP and DOWN buttons.
Press ENTER to select the item to be
customized.
▲ ▼
Press or to select the next field
SCREENS CONFIGURATION
