8. Recommendations for a proper access to the model

Access
8.1 Remove R1 drain connection.
8.2 Verify that drain pan L1 is free from ice build-up before removing it by unfastening the screws "A".
8.3 Loosen self-threading screws "B", without removing them completely, then slip off the side panel L5.
Reassembling
8.4 Reposition the side panel L5 and fasten with screws "B".
8.5 Reposition drain pan L1, ensuring that the side panels are placed on the inside and fasten with screws "A".
8.6 Reconnect R1 drain connection.
L1 = Drain pan
L2 = Inner drip tray
L3 = Fan shroud
L4 = Supports
L5 = Side panel
R1 = Drain connection
SD = Junction boxes (fans and heaters)
= Ground pole

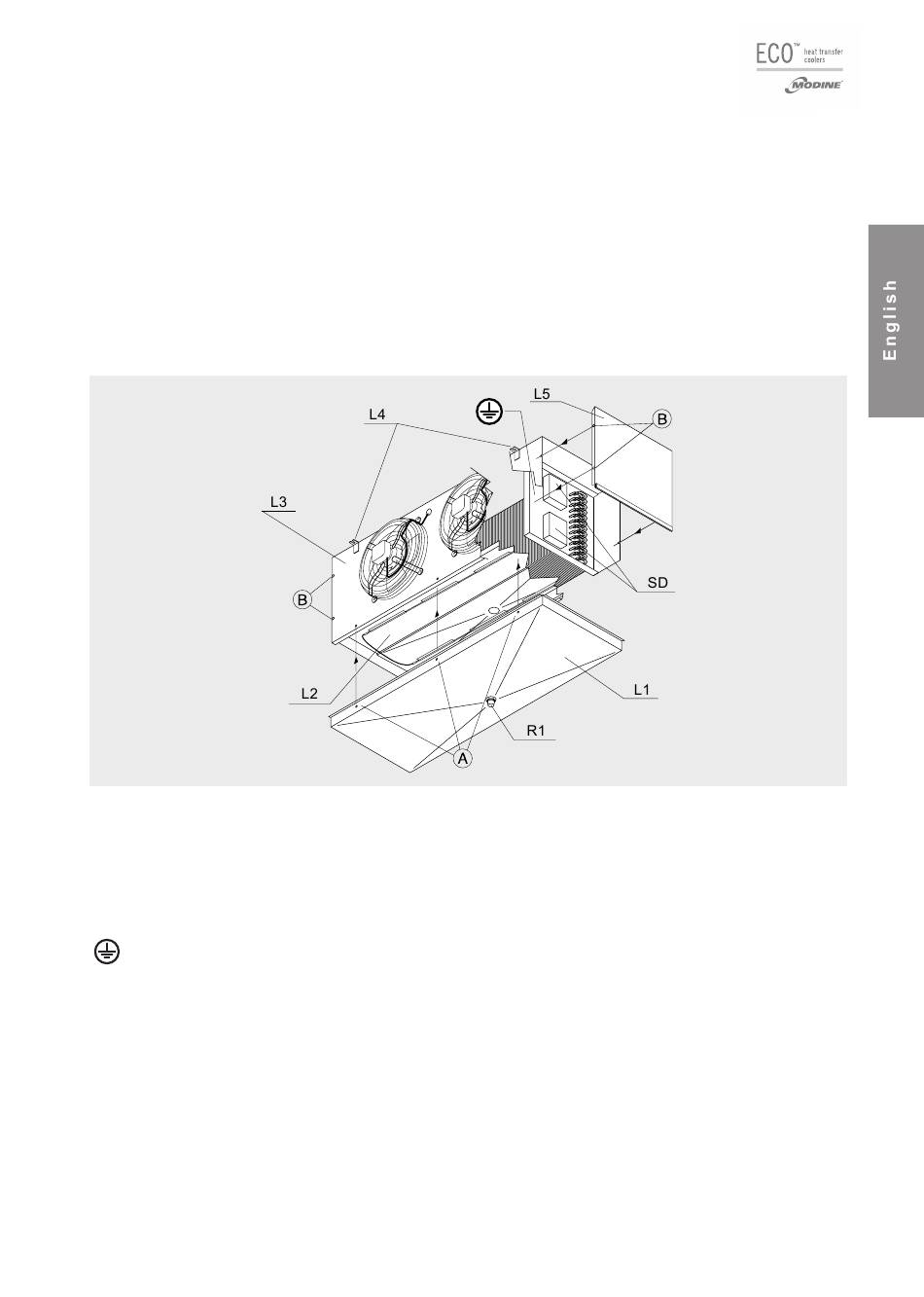

Figure 6
