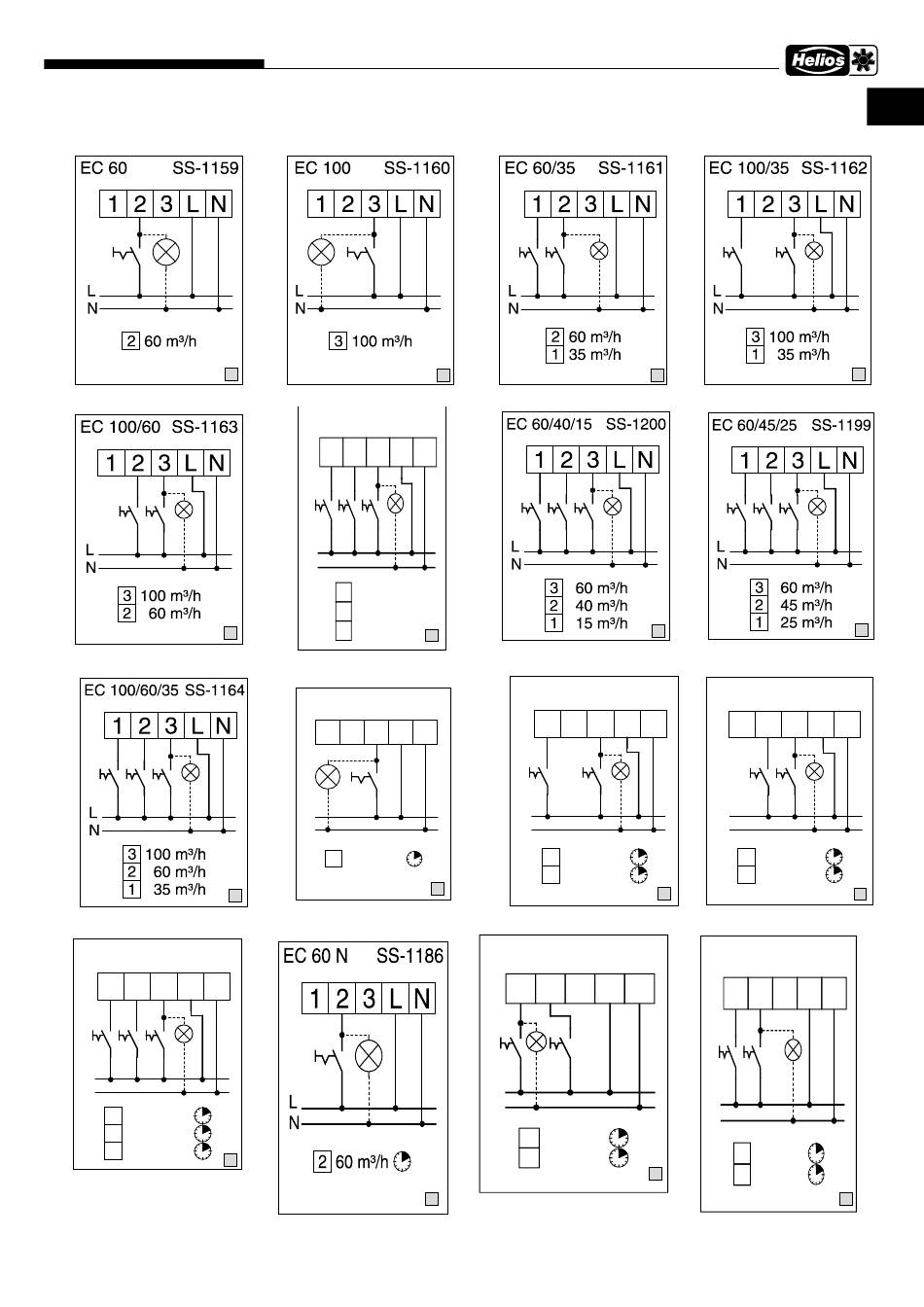

5�2 Wiring diagram overview for ELS EC�� fan series
(please mark applicable wiring diagram for the intended fans!)
EC 100/60/35 N SS-1191
1 2 3 L N
L
N
3
100 m³/h
2
60 m³/h
1
35 m³/h
Casing type ELS-GU
EC 40/20/60 SS-1477
1 2 3 L N
L
N
3
60 m³/h
2
40 m³/h
1 20 m³/h
EC 100 N SS-1187
1 2 3 L N
L
N
3
100 m³/h
17
EC 100/35 N SS-1189
1 2 3 L N
L
N
3
100 m³/h
1
35 m³/h
EC 40/60 N
SS-1398
1 2 3 L N
L
N
2
60 m³/h
1
40 m³/h
EN
EC 100/60 N SS-1190
1 2 3 L N
L
N
3
100 m³/h
2
60 m³/h
EC 60/15 N
SS-1459
1 2 3 L N
L
N
2
60 m³/h
1
15 m³/h
