Installation and Operating Instructions
Casing type ELS-GU

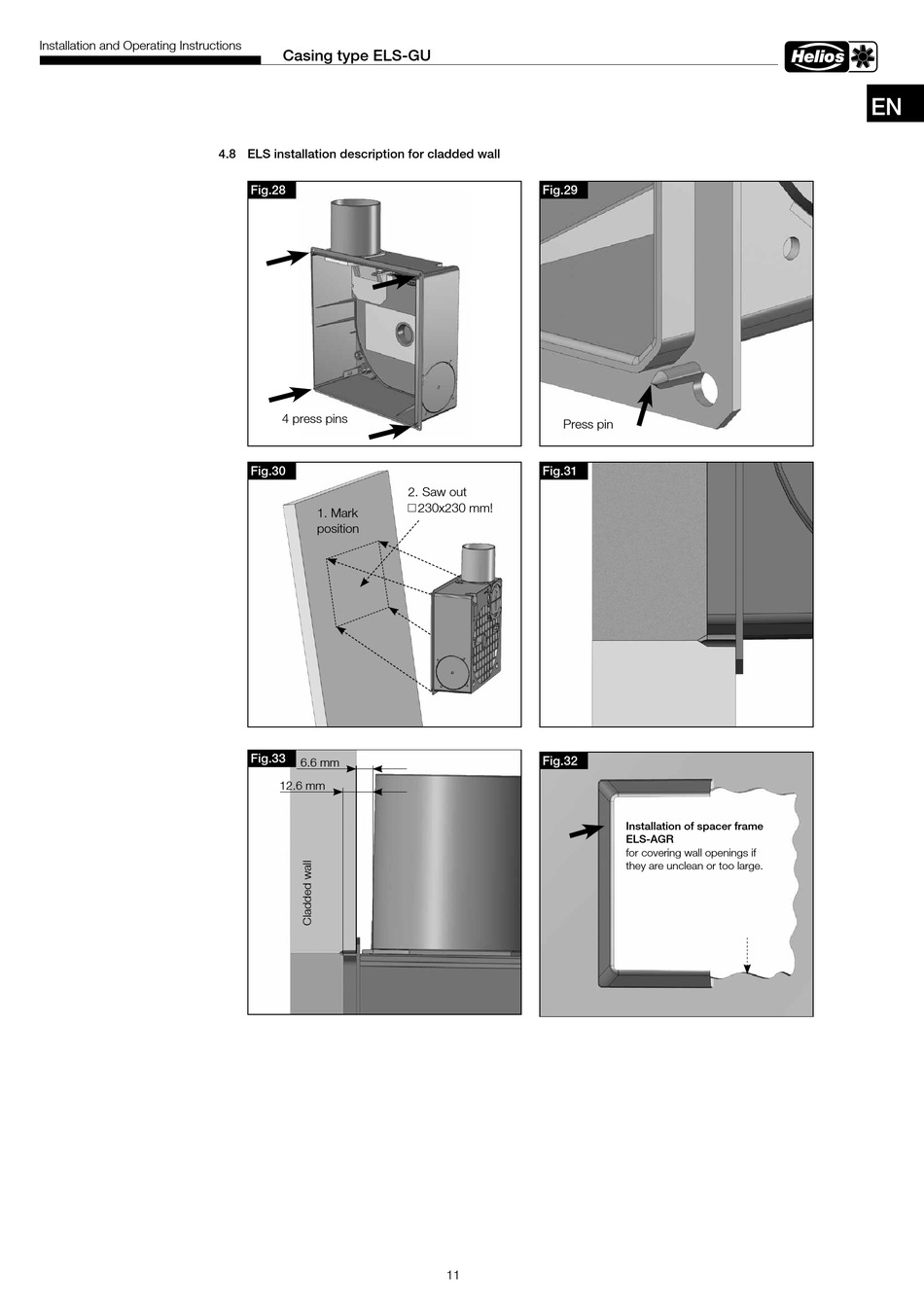

4�8 ELS installation description for cladded wall
Fig�28
4 press pins
Fig�30
1. Mark
position
Fig�33
6.6 mm
12.6 mm
Fig�29
Press pin
Fig�31
2. Saw out
230x230 mm!
c
Fig�32
11
Installation of spacer frame
ELS-AGR
for covering wall openings if
they are unclean or too large.
EN
