2.4. Function of the machine

The function of the machine is the cutting of stones like nature stone, granite, concrete, as well
as basalt (with a special basalt-blade)
Machine equipped with triangular blade (see Figure 2.4-1) is able to cut stones up to 4 mm
unevenness.
Machine equipped with basalt blade (see Figure 2.4-2) is able to cut stones up to 6 mm
unevenness.

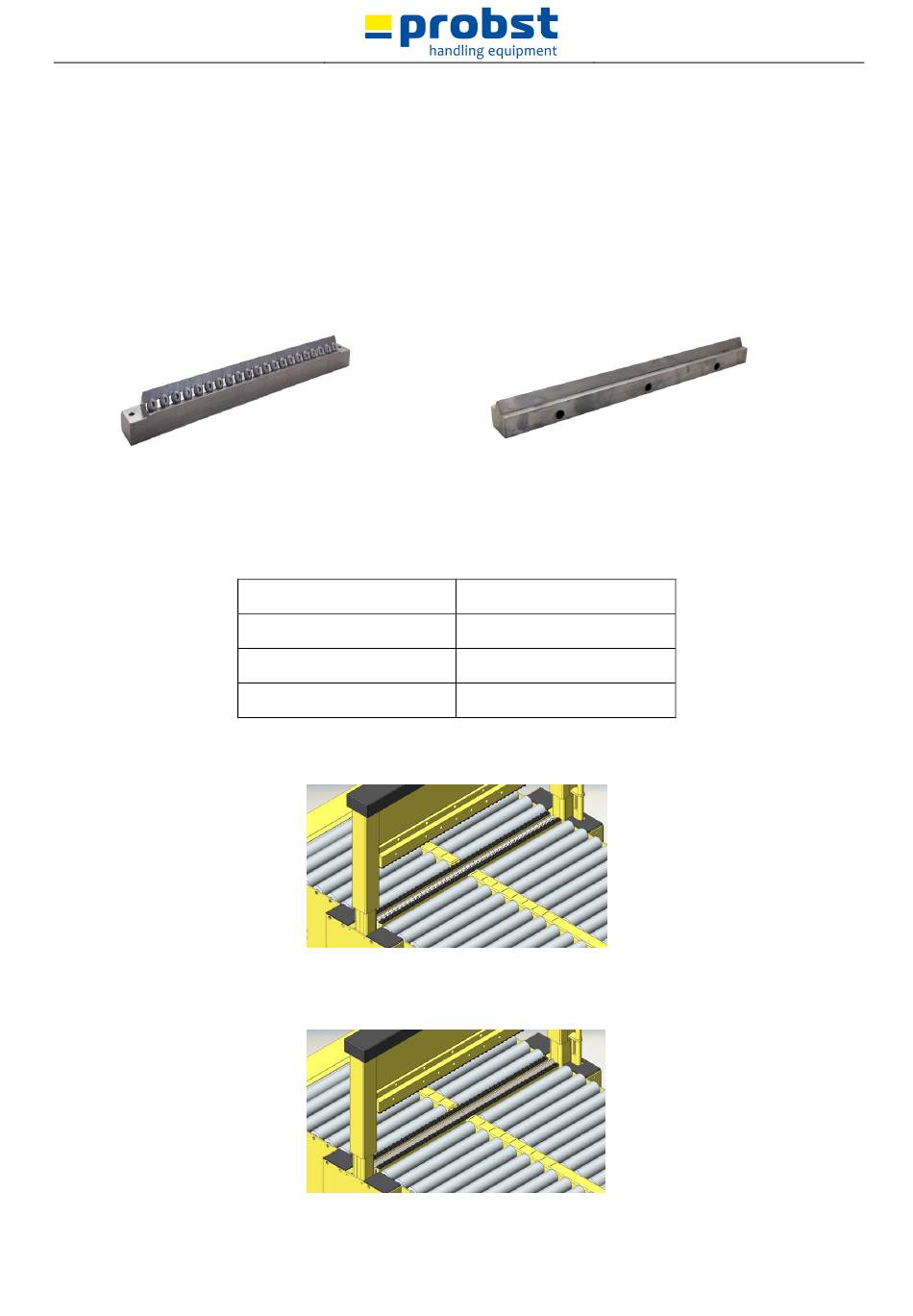

Figure 2.4-1: Triangular blade

The machine must not be used otherwise than for cutting stone products.
Following dimensions of the stone products are allowed:
There are several clamping opportunities performable. 2 triangular blades spread over the
entire width of the block cutter, see Figure 2.4-3.
2 basalt blades spread over the entire width of the block cutter, see Figure 2.4-4.
Min. width stone
Max. width stone
Min. hight stone
Max. hight stone

Figure 2.4-3: Triangular blades spread

Figure 2.4-4: Basalt blades spread

Figure 2.4-2: Basalt blade

40 cm (15¾")
90 cm (35½")
4 cm (1½")
37 cm (14½")
