Adjustments
3.1.3

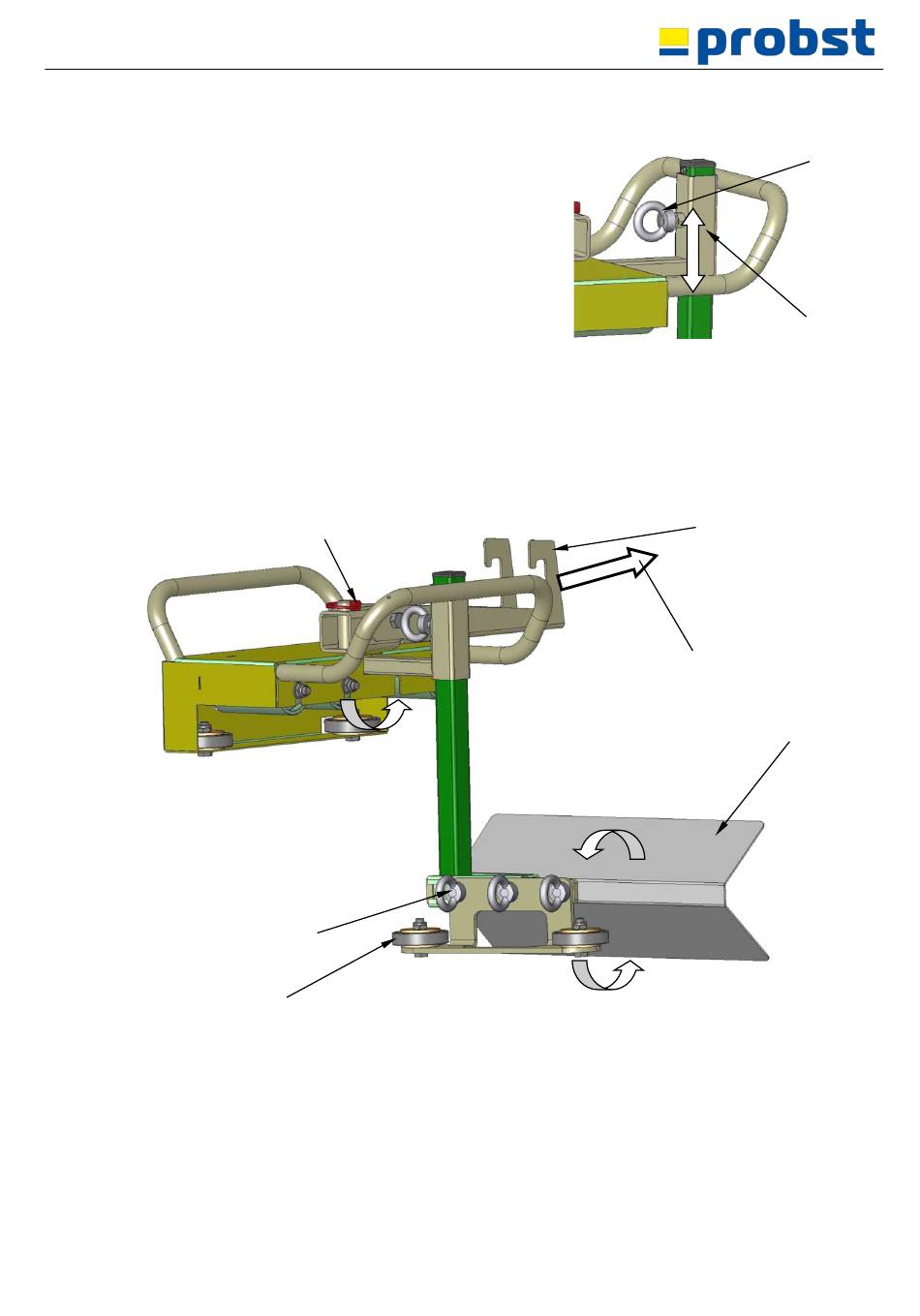

Adjustment of the pull-off height (concrete subgrade)

•
Loosen the eyebolt (6).
•
Set the desired height of the concrete level by pushing up or
pulling down the height adjustment (7).
•
Tighten the eyebolt (6) again.
3.1.4

Changing the pull-off direction

The unit (RF-H) must be modified accordingly if the concrete subgrade is to be constructed on the other side of
the kerb:
•
Remove linch pin (8) and move bucket hitch (9) 180° and secure again with linch pin (8).
•
Loosen eyebolts (10) of support wheel (11) and pull-off plate (12).
51000064
8
10
11
8 / 11
6
4
9
Pulling direction
12
