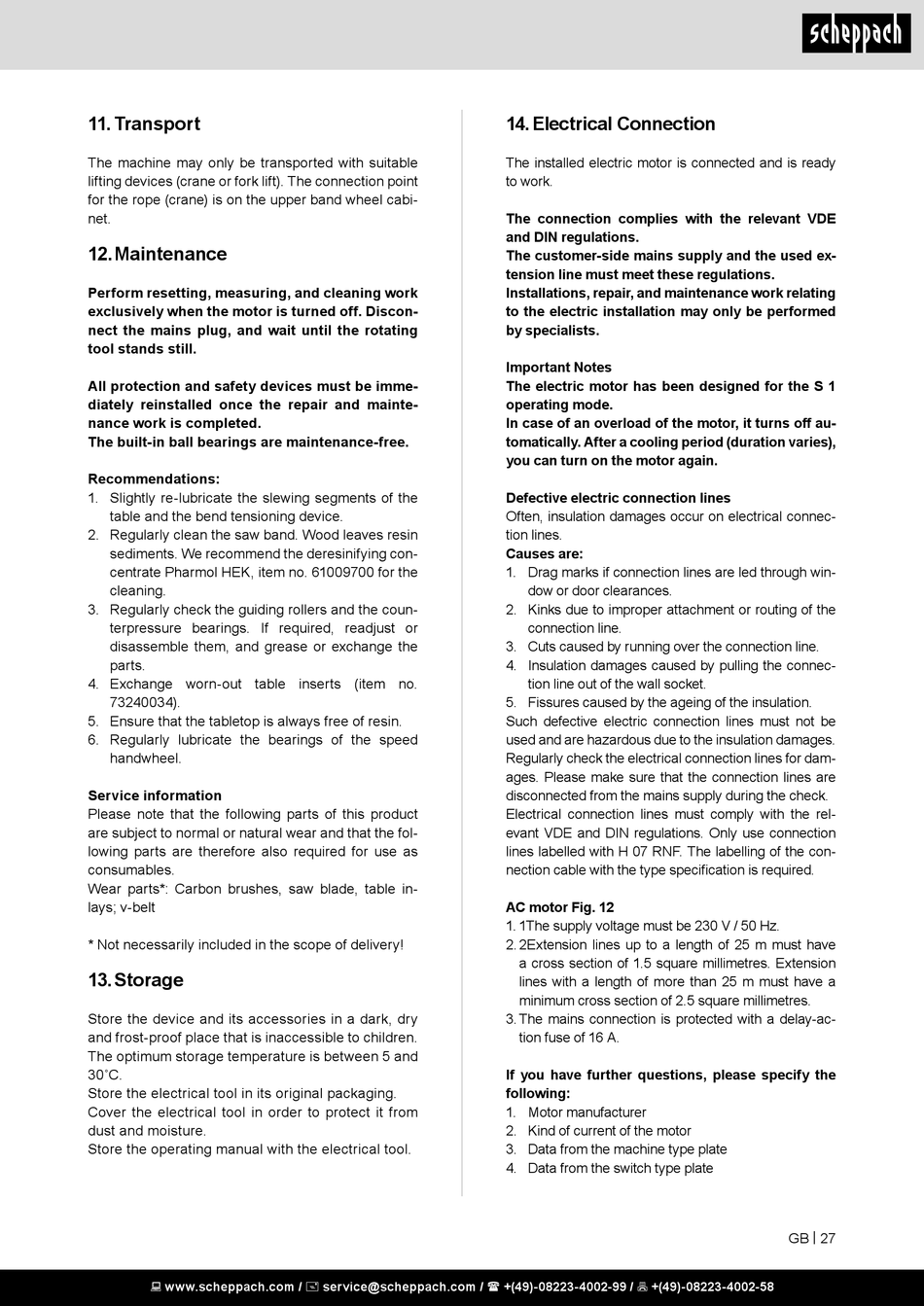

11. Transport

The machine may only be transported with suitable
lifting devices (crane or fork lift). The connection point
for the rope (crane) is on the upper band wheel cabi-
net.

12. Maintenance

Perform resetting, measuring, and cleaning work
exclusively when the motor is turned off. Discon-
nect the mains plug, and wait until the rotating
tool stands still.
All protection and safety devices must be imme-
diately reinstalled once the repair and mainte-
nance work is completed.
The built-in ball bearings are maintenance-free.
Recommendations:
1. Slightly re-lubricate the slewing segments of the
table and the bend tensioning device.
2. Regularly clean the saw band. Wood leaves resin
sediments. We recommend the deresinifying con-
centrate Pharmol HEK, item no. 61009700 for the
cleaning.
3. Regularly check the guiding rollers and the coun-
terpressure bearings. If required, readjust or
disassemble them, and grease or exchange the
parts.
4. Exchange worn-out table inserts (item no.
73240034).
5. Ensure that the tabletop is always free of resin.
6. Regularly lubricate the bearings of the speed
handwheel.
Service information
Please note that the following parts of this product
are subject to normal or natural wear and that the fol-
lowing parts are therefore also required for use as
consumables.
Wear parts*: Carbon brushes, saw blade, table in-
lays; v-belt
* Not necessarily included in the scope of delivery!

13. Storage

Store the device and its accessories in a dark, dry
and frost-proof place that is inaccessible to children.
The optimum storage temperature is between 5 and
30˚C.
Store the electrical tool in its original packaging.
Cover the electrical tool in order to protect it from
dust and moisture.
Store the operating manual with the electrical tool.
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58

14. Electrical Connection

The installed electric motor is connected and is ready
to work.
The connection complies with the relevant VDE
and DIN regulations.
The customer-side mains supply and the used ex-
tension line must meet these regulations.
Installations, repair, and maintenance work relating
to the electric installation may only be performed
by specialists.
Important Notes
The electric motor has been designed for the S 1
operating mode.
In case of an overload of the motor, it turns off au-
tomatically. After a cooling period (duration varies),
you can turn on the motor again.
Defective electric connection lines
Often, insulation damages occur on electrical connec-
tion lines.
Causes are:
1. Drag marks if connection lines are led through win-
dow or door clearances.
2. Kinks due to improper attachment or routing of the
connection line.
3. Cuts caused by running over the connection line.
4. Insulation damages caused by pulling the connec-
tion line out of the wall socket.
5. Fissures caused by the ageing of the insulation.
Such defective electric connection lines must not be
used and are hazardous due to the insulation damages.
Regularly check the electrical connection lines for dam-
ages. Please make sure that the connection lines are
disconnected from the mains supply during the check.
Electrical connection lines must comply with the rel-
evant VDE and DIN regulations. Only use connection
lines labelled with H 07 RNF. The labelling of the con-
nection cable with the type specification is required.
AC motor Fig. 12
1. 1The supply voltage must be 230 V / 50 Hz.
2. 2Extension lines up to a length of 25 m must have
a cross section of 1.5 square millimetres. Extension
lines with a length of more than 25 m must have a
minimum cross section of 2.5 square millimetres.
3. The mains connection is protected with a delay-ac-
tion fuse of 16 A.
If you have further questions, please specify the
following:
1. Motor manufacturer
2. Kind of current of the motor
3. Data from the machine type plate
4. Data from the switch type plate
