1. Position the inverter bracket, align it with a spirit
level and mark the drill holes.
2. Drill holes according to the markings.
3. Insert heavy-duty anchors into the drilled holes and
hammer them in with a hammer.
4. Fasten the inverter bracket with the heavy-duty
anchors – or select equivalent fastening material.
5. Tighten all screws of the heavy-duty anchors cross-
wise

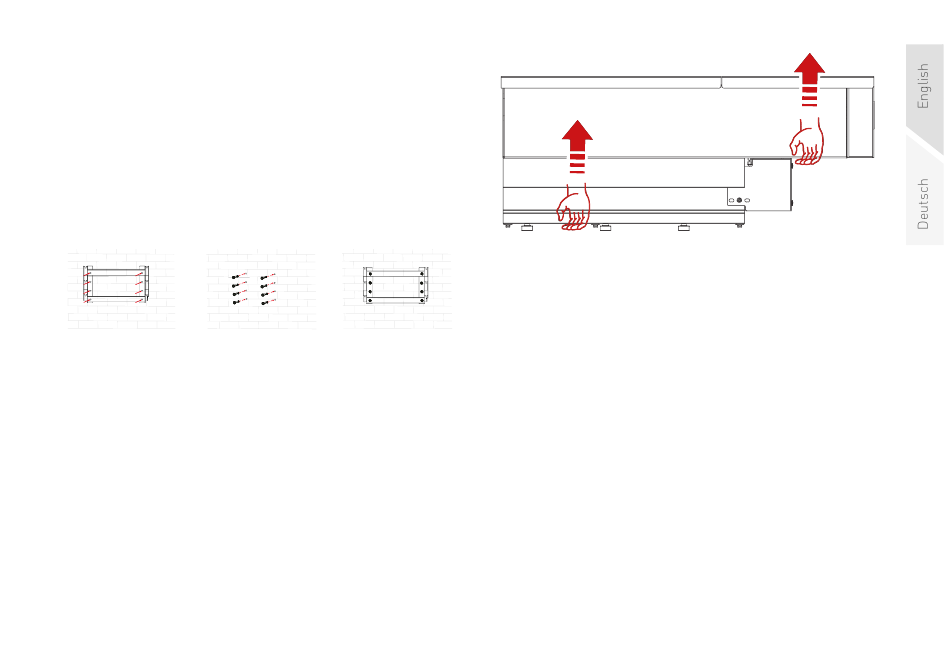

Fig. 33: Mounting the inverter bracket
4.6

Remove the Inverter from the Packaging

✅ Inverter packaging is ready at the installation site.
▷ With two people, grasp the inverter at the following
positions and lift it out of the packaging.
REFUsol 50K-3T
982081 | 03 | 2021-03
Fig. 34: Handle options on the inverter
4.7

Mount Inverter

1. With two people, align the inverter on the inverter
bracket with the recesses and hook it in.
2. To secure the inverter, tighten the M6 hexagon
socket screw on the inverter bracket.
3. If necessary, use a lock to prevent theft.
Remove the Inverter from the Packaging
Installation 33
