Supplying Compressed Air

Connection to an External
Exhaust System
6
AbraPol-10
Instruction Manual
Connect the compressed air supply with the inlet on the rear,
left side of the machine by means of the air hose and the hose
connection delivered with the machine.
Fasten the air hose with a hose clamp.
The pressure supply should be 6-10 bar and should be supplied
either from a central compressor, portable compressor with
compressed air reservoir or compressed-air bottle. A capacity of 20
l/min at atmospheric pressure is sufficient.
Please refer to the section on Technical Data for recommended air
quality.
An exhaust system can be connected when using alcohol based
suspensions or lubricants.

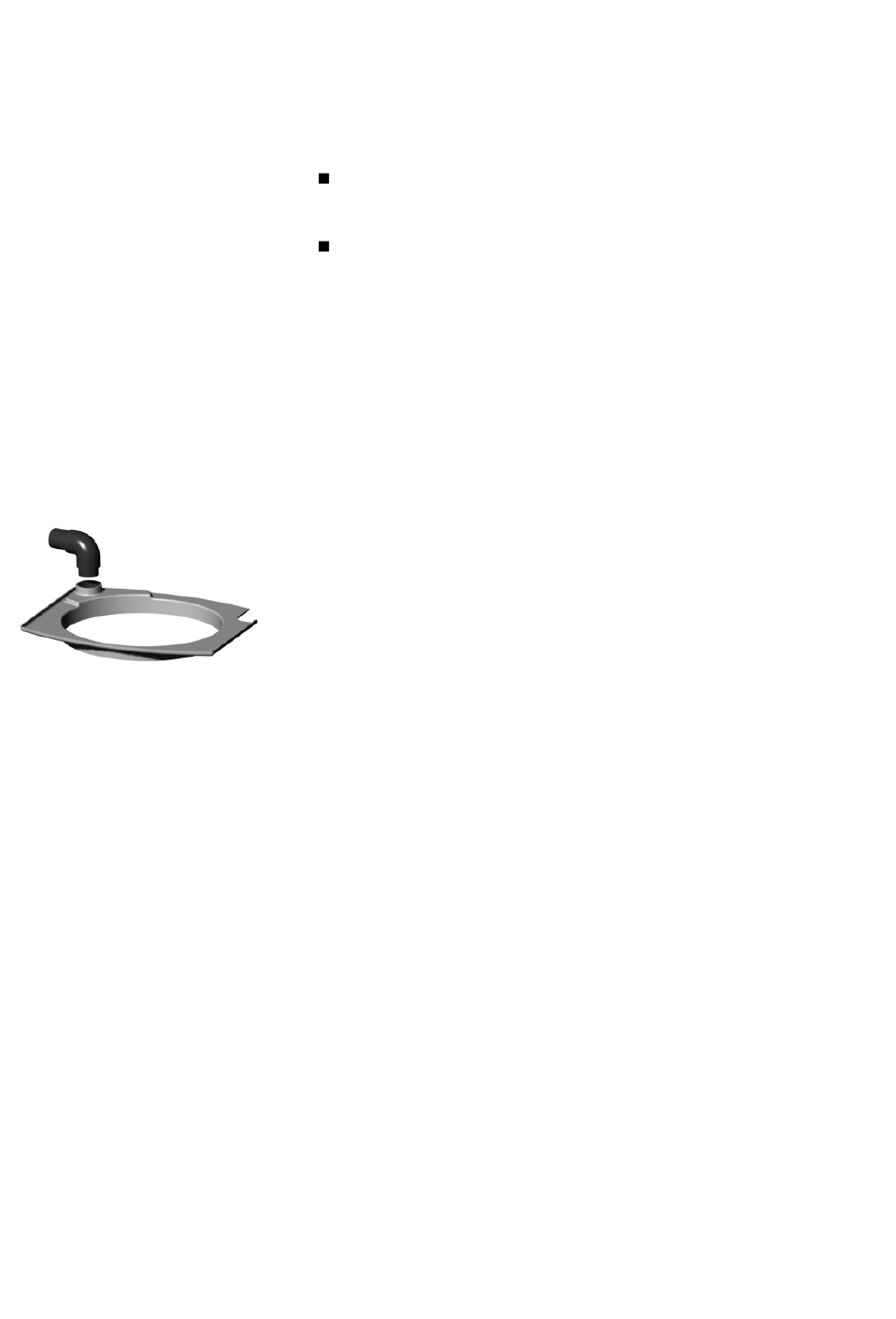

Slot the 50 mm pipe angle connection into the hole on the left
hand side of the splash guard and connect to the exhaust system.
Recommended capacity for exhaust system: 180m
water gauge.
/h at 0mm
3
