• The tree cuttings should be preceded with preparation of the
work place consisting of the removal of lower interfering branches
and clearing the area around the tree trunk.
• Do not work in strong wind, which may influence the predicted
tree falling direction and cause its uncontrolled felling.
• Do not carry out cuttings in conditions of limited visibility, when it
is foggy, rains or snows.
• Do not overreach and do not cut above your shoulder height, or
when standing on a tree, ladder, scaffold, trunk, etc.
• A well-equipped first aid kit should be available near the work
place.
To prevent saw recoil follow below instructions:
• Never start or guide a cut with the tip of the guide bar!
• Always start cutting with saw previously switched on!
• Ensure the cutting chain is sharp.
• Never cut more than one branch at a time. When cutting off, watch
out for surrounding branches. When cutting a tree through, watch
out for nearby tree trunks.

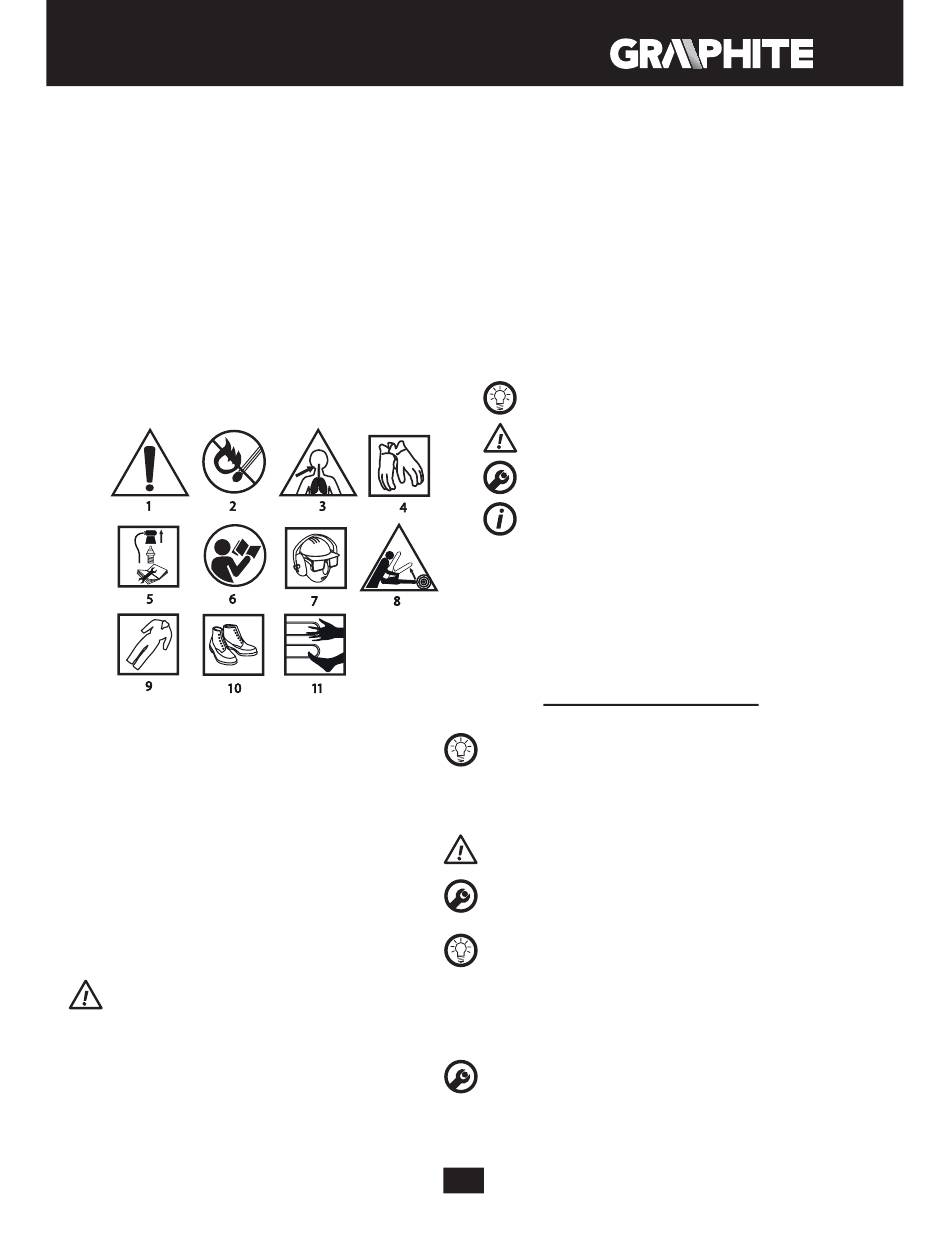

Explanation of used symbols
Caution, use precaution measures
1.
Fire hazard
2.
Exhaust gas poisoning hazard
3.
Use protective gloves
4.
Switch off the engine and remove wire from the ignition plug
5.
before commencing any maintenance or repair
Read instruction manual, observe warnings and safety
6.
conditions therein!
Use head, eyes and ears protection
7.
Danger of recoil
8.
Use protective clothes
9.
Use protective shoes
10.
Do not put your hands or legs close to cutting parts
11.
CONSTRUCTION AND USE
Petrol chain saw is a hand-held tool. It is driven by an air cooled, two-
stroke combustion engine. Tool of this type is designed for tasks in
home garden. The saw can be used for cutting down trees, cutting
branches, firewood, wood for fireplace and other tasks where cutting
wood is necessary. Petrol chain saw is a tool for amateur use only.
Use the device according to the manufacturer's instructions only.
DESCRIPTION OF DRAWING PAGES
Below enumeration refers to the device elements depicted on the
drawing pages of this manual.
Throttle lever lock
1.
Choke cable
2.
Knob for air filter lid
3.
Air filter lid
4.
Front handle
5.
Brake lever
6.
All manuals and user guides at all-guides.com
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
* Differences may appear between the product and drawing.
MEANING OF SYMBOLS
EQUIPMENT AND ACCESSORIES
1.
2.
3.
4.
5.
6.
7.
8.
CARRYING THE CHAIN SAW
Prior to carrying the chain saw slide chain cover onto guide bar
and chain. When carrying the chain saw, hold it by front handle.
Do not carry the saw when holding main handle. If several
cuttings are to be made, switch off the chain saw with the ignition
switch between consecutive tasks.
INSTALLING THE BUMPER SPIKE
The bumper spike should be attached to the chain saw at all times
due to safety reasons. The bumper spike is a support point and
reduces the kickback risk.
• Fasten the bumper spike (19) to the chain saw case using bolts
(included).
INSTALLATION OF GUIDE BAR AND SAW CHAIN
Prior to guide bar installation remove plastic transport spacer,
placed on guide fixing screws under the guard. Use pin and
adjustment screw for adjustment of chain tension. It is very
important that the bolt located on adjustment screw falls into
hole in the guide bar during installation of the guide bar.
You can move the bolt to the front and back by turning the
adjustment screw. Those parts must be set appropriately prior to
starting guide bar installation in the saw.
Guide bar and chain are supplied separately.
• Brake lever (6) must be in the upper (vertical) position (fig. A).
• Unscrew the guide bar fixing nuts (7) and remove the casing (10).
• Put the chain (21) onto driving chain wheel located behind the
clutch.
15
Guide bar fixing nuts
Chain tension adjustment screw
Oil feed adjustment screw
Casing
Throttle lever
Main handle
Starter line
Ignition switch
Fuel filler plug
Carburettor adjustment screws, L and H
Low speed adjustment screw T
Oil filler plug
Bumper spike
Guide bar
Chain
Guide bar chain wheel
CAUTION
WARNING
ASSEMBLY/SETTINGS
INFORMATION
Guide bar guard
Guide bar
Cutting chain
Bumper spike + bolts
Fuel and oil mix tank
Sparking plug wrench with screwdriver - 1 pc
Screwdriver
Hexagonal key

PREPARATION FOR OPERATION

- 1 pc
- 1 pc
- 1 pc
- 1 set
- 1 pc
- 1 pc
- 2 pcs
