EN

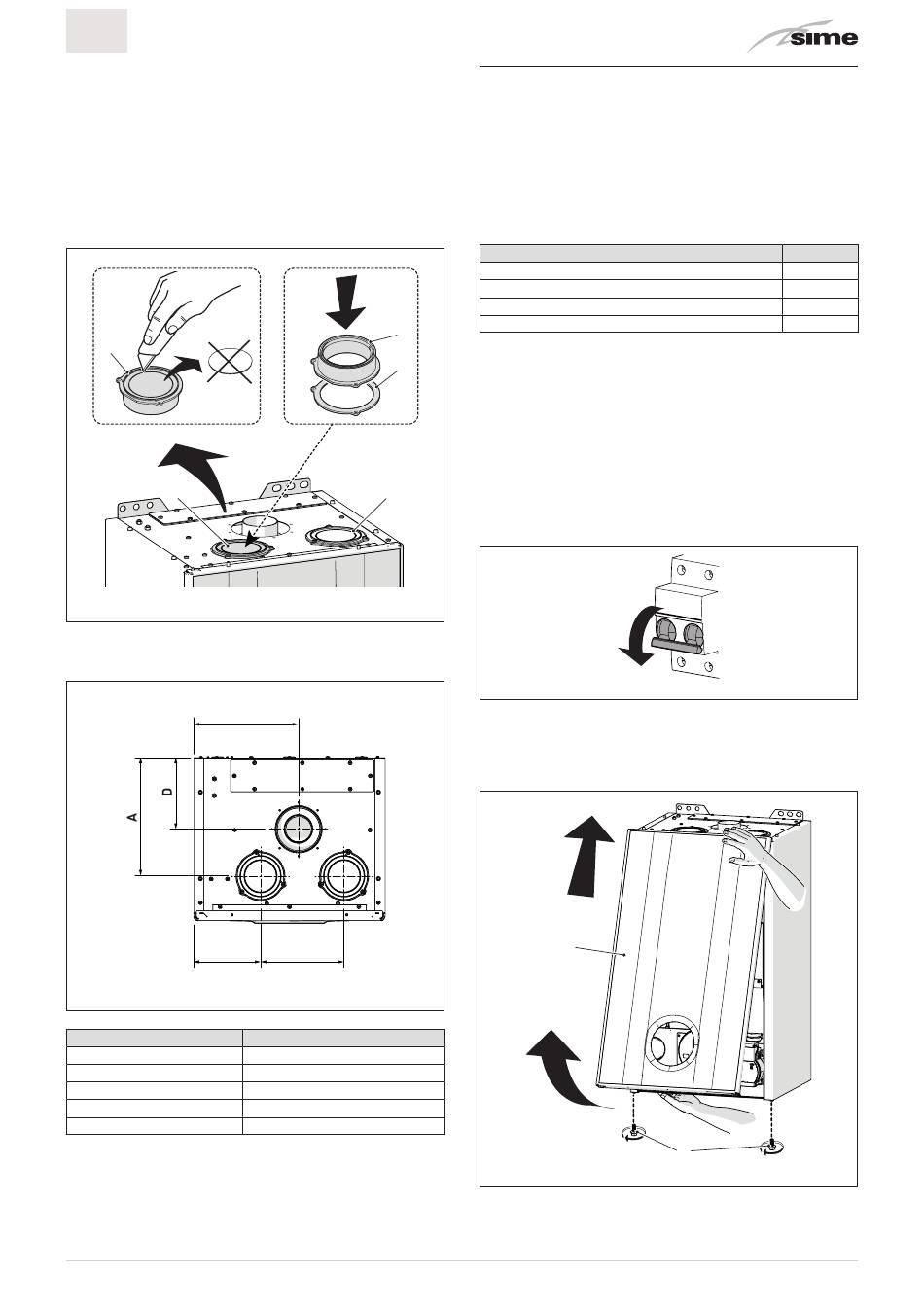

Combustion air inlet
The combustion air inlet, with separate ducts, is assembled as
follows:
– remove the air outlet cap (5); choose your preferred outlet
– cut the bottom of the cap (5) using a suitable tool (a)
– turn over the cap (5) as shown (b) and refit it on the air outlet,
inserting the new seal (6) provided in the kit
– fix everything in place with the screws removed previously.
The overturned cap (5) is now the attachment for the first com-
ponent on the air inlet duct
a
5
5
Smoke outlet and combustion air inlet fittings
B
Description
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
b
5
6
5
Fig. 26
E
C
Fig. 27
UNIQA REVOLUTION 25
248
140
175
180
220
6.12
Electrical connections
The power cable must be connected to a 230V (±10%) ~ 50 Hz
network, observing L-N polarity and the earth connection. The
network must have an omnipolar switch with category III over-
voltage, in compliance with the installation rules.
If this cable needs to be replaced, an original spare must be re-
quested from Sime .
Therefore only the connections of the original components as
shown in the table are needed. These are to be ordered sepa-
rately from the boiler.
DESCRIPTION
External sensor kit (ß=3435, NTC 10KOhm at 25°C)
Power cable (dedicated)
Remote control HOME (open therm)
Remote control HOME PLUS (open therm)
m
CAUTION
The maintenance interventions described must ONLY
be carried out the professionally qualified personnel.
a
WARNING
Before carrying out any interventions described:
– set the main system switch to "OFF"
– close the gas valve
– make sure that no hot parts inside the appliance are
touched.
OFF
To facilitate introduction of the connection wires of the optional
components into the boiler:
– remove the screws (1), pull the front panel (2) forwards and
release it from the top by lifting it
2
CODE
8094101
6329400
8092280
8092281
Fig. 28
1
Fig. 29
29
