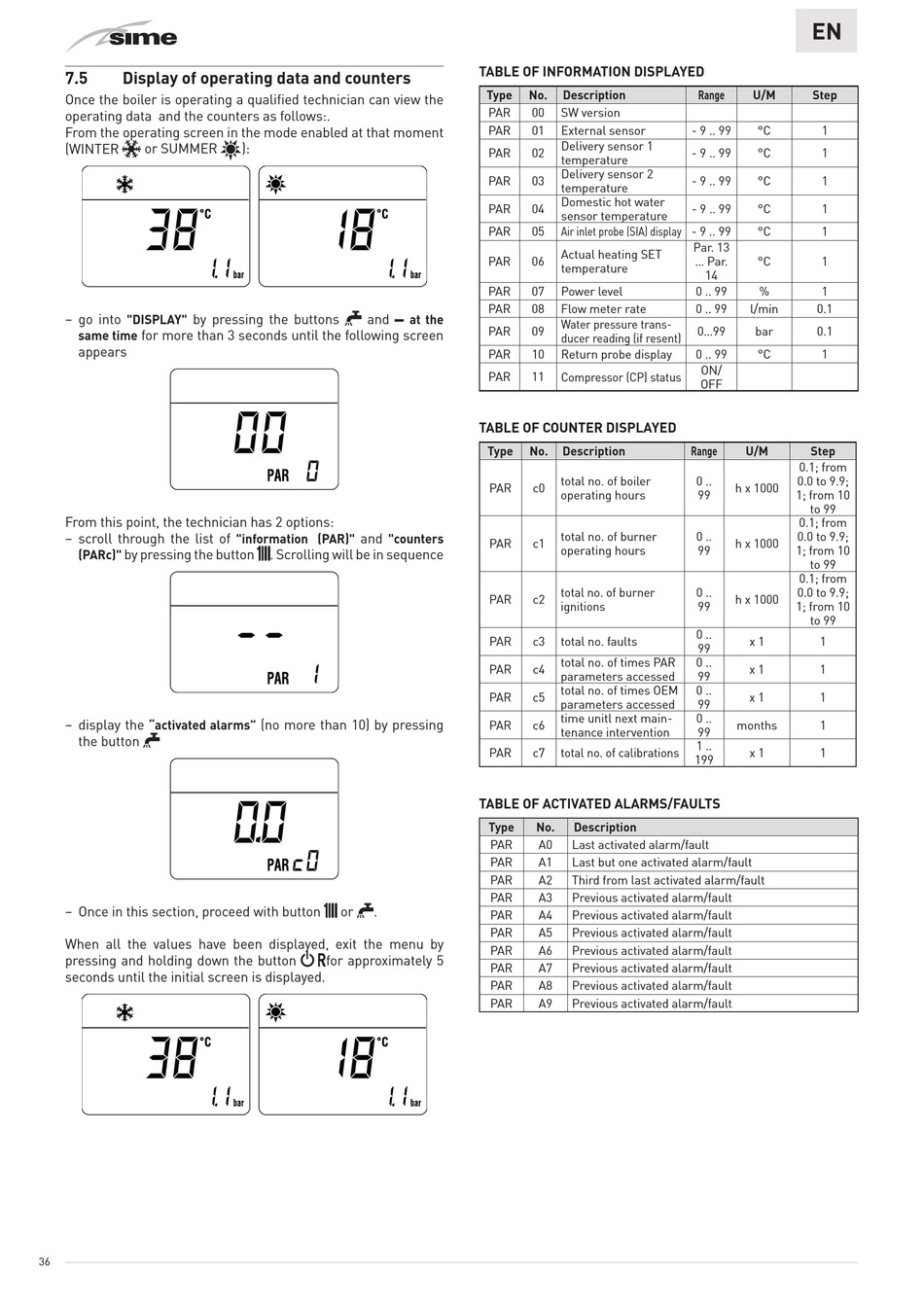

Display of operating data and counters

Once the boiler is operating a qualified technician can view the
operating data and the counters as follows:.
From the operating screen in the mode enabled at that moment
(WINTER n or SUMMER
– go into "DISPLAY" by pressing the buttons
for more than 3 seconds until the following screen
same time
appears
From this point, the technician has 2 options:
– scroll through the list of "information (PAR)" and "counters
by pressing the button
(PARc)"
– display the "activated alarms" (no more than 10) by pressing
the button r
– Once in this section, proceed with button
When all the values have been displayed, exit the menu by
pressing and holding down the button
seconds until the initial screen is displayed.
36
l ):
r and <
t . Scrolling will be in sequence
t or r .
y for approximately 5
TABLE OF INFORMATION DISPLAYED
Type No. Description
PAR 00 SW version
PAR 01 External sensor
Delivery sensor 1
PAR 02
temperature
Delivery sensor 2
PAR 03
temperature
Domestic hot water
PAR 04
sensor temperature
PAR 05 Air inlet probe (SIA) display - 9 .. 99
Actual heating SET
PAR 06
temperature
PAR 07 Power level
PAR 08 Flow meter rate
at the
Water pressure trans-
PAR 09
ducer reading (if resent)
PAR 10 Return probe display
PAR 11 Compressor (CP) status
TABLE OF COUNTER DISPLAYED
Type No. Description
total no. of boiler
PAR c0
operating hours
total no. of burner
PAR c1
operating hours
total no. of burner
PAR c2
ignitions
PAR c3 total no. faults
total no. of times PAR
PAR c4
parameters accessed
total no. of times OEM
PAR c5
parameters accessed
time unitl next main-
PAR c6
tenance intervention
PAR c7 total no. of calibrations
TABLE OF ACTIVATED ALARMS/FAULTS
Type No. Description
PAR A0 Last activated alarm/fault
PAR A1 Last but one activated alarm/fault
PAR A2 Third from last activated alarm/fault
PAR A3 Previous activated alarm/fault
PAR A4 Previous activated alarm/fault
PAR A5 Previous activated alarm/fault
PAR A6 Previous activated alarm/fault
PAR A7 Previous activated alarm/fault
PAR A8 Previous activated alarm/fault
PAR A9 Previous activated alarm/fault
EN
Range U/M Step
- 9 .. 99 °C 1
- 9 .. 99 °C 1
- 9 .. 99 °C 1
- 9 .. 99 °C 1
°C 1
Par. 13
... Par. °C 1
14
0 .. 99 % 1
0 .. 99 l/min 0.1
0...99 bar 0.1
0 .. 99 °C 1
ON/
OFF
Range U/M Step
0.1; from
0 .. 0.0 to 9.9;
h x 1000
99 1; from 10
to 99
0.1; from
0 .. 0.0 to 9.9;
h x 1000
99 1; from 10
to 99
0.1; from
0 .. 0.0 to 9.9;
h x 1000
99 1; from 10
to 99
0 ..
x 1 1
99
0 ..
x 1 1
99
0 ..
x 1 1
99
0 ..
months 1
99
1 ..
x 1 1
199
