EN
– keep the button t pressed and scroll through the parameters
until reaching parameter "03"
– press the > button and select "0" (METHANE) or "1" (LPG)

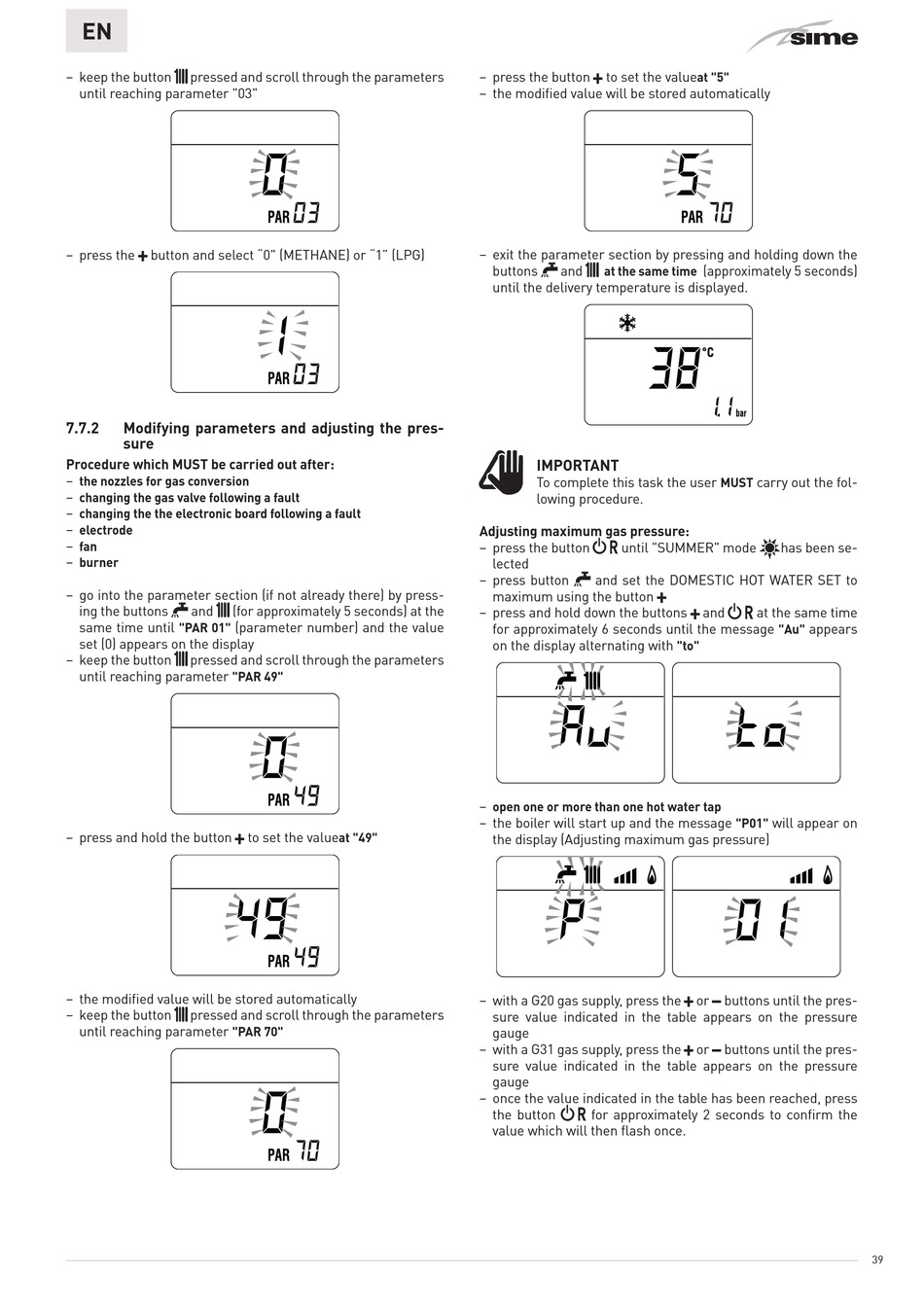

7.7.2 Modifying parameters and adjusting the pres-
sure
Procedure which MUST be carried out after:
– the nozzles for gas conversion
– changing the gas valve following a fault
– changing the the electronic board following a fault
– electrode
– fan
– burner
– go into the parameter section (if not already there) by press-
ing the buttons r and t (for approximately 5 seconds) at the
same time until "PAR 01" (parameter number) and the value
set (0) appears on the display
– keep the button t pressed and scroll through the parameters
until reaching parameter "PAR 49"
– press and hold the button >
– the modified value will be stored automatically
– keep the button t pressed and scroll through the parameters
until reaching parameter "PAR 70"
to set the value at "49"
– press the button > to set the value at "5"
– the modified value will be stored automatically
– exit the parameter section by pressing and holding down the
buttons r and t at the same time
until the delivery temperature is displayed.
m
IMPORTANT
To complete this task the user MUST carry out the fol-
lowing procedure.
Adjusting maximum gas pressure:
– press the button y until "SUMMER" mode
lected
– press button r and set the DOMESTIC HOT WATER SET to
maximum using the button
– press and hold down the buttons
for approximately 6 seconds until the message "Au" appears
on the display alternating with "to"
– open one or more than one hot water tap
– the boiler will start up and the message "P01" will appear on
the display (Adjusting maximum gas pressure)
– with a G20 gas supply, press the
sure value indicated in the table appears on the pressure
gauge
– with a G31 gas supply, press the
sure value indicated in the table appears on the pressure
gauge
– once the value indicated in the table has been reached, press
the button y for approximately 2 seconds to confirm the
value which will then flash once.
(approximately 5 seconds)
l has been se-
>
> and y at the same time
> or < buttons until the pres-
> or < buttons until the pres-
39
