6 .1

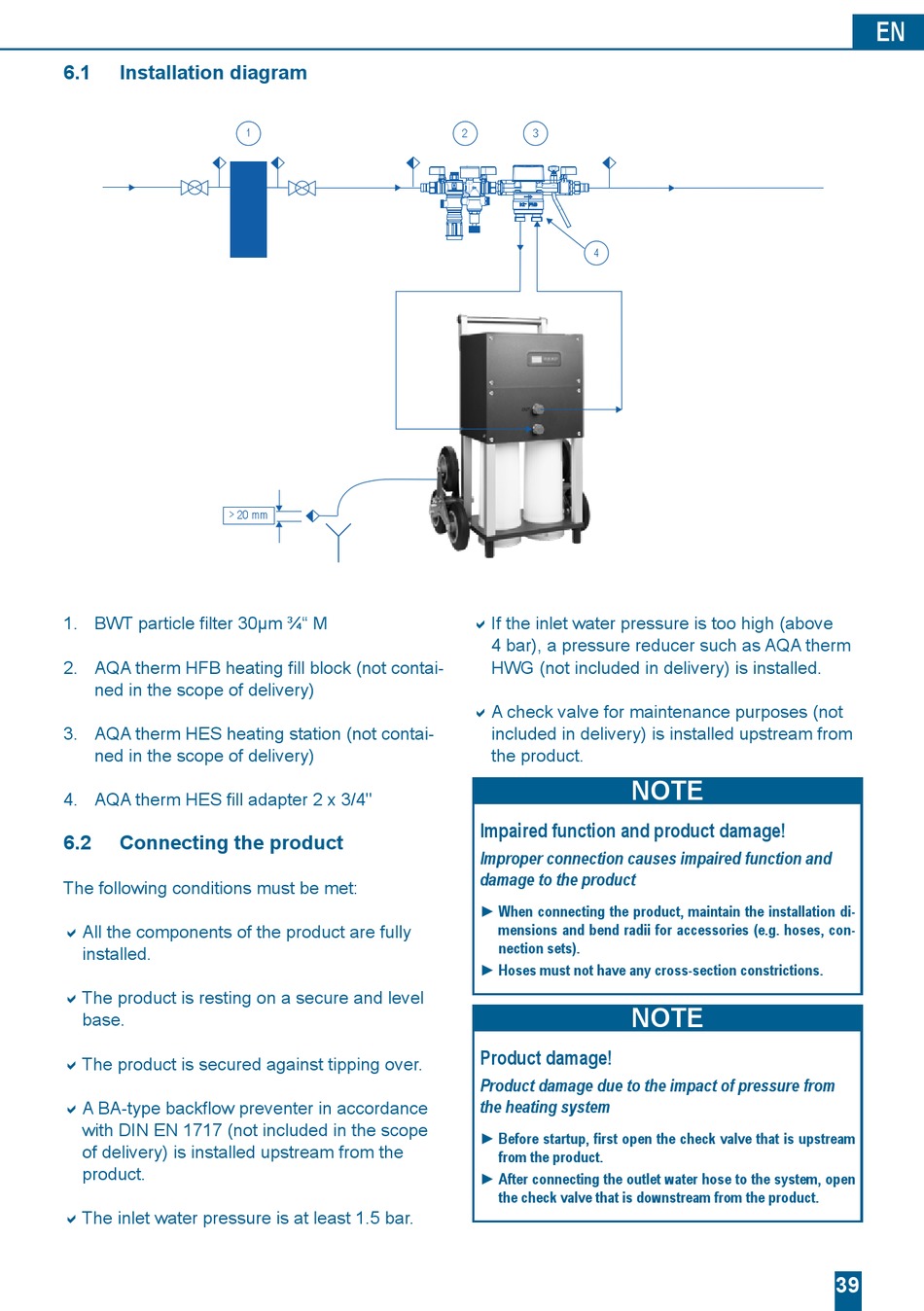

Installation diagram

> 20 mm
1. BWT particle filter 30µm ¾" M
2. AQA therm HFB heating fill block (not contai-
ned in the scope of delivery)
3. AQA therm HES heating station (not contai-
ned in the scope of delivery)
4. AQA therm HES fill adapter 2 x 3/4"
6 .2

Connecting the product

The following conditions must be met:
DAll the components of the product are fully
installed.
DThe product is resting on a secure and level
base.
DThe product is secured against tipping over.
DA BA-type backflow preventer in accordance
with DIN EN 1717 (not included in the scope
of delivery) is installed upstream from the
product.
DThe inlet water pressure is at least 1.5 bar.
1
2 3
4
DIf the inlet water pressure is too high (above
4 bar), a pressure reducer such as AQA therm
HWG (not included in delivery) is installed.
DA check valve for maintenance purposes (not
included in delivery) is installed upstream from
the product.
NOTE
Impaired function and product damage!
Improper connection causes impaired function and
damage to the product
► When connecting the product, maintain the installation di-
mensions and bend radii for accessories (e.g. hoses, con-
nection sets).
► Hoses must not have any cross-section constrictions.
NOTE
Product damage!
Product damage due to the impact of pressure from
the heating system
► Before startup, first open the check valve that is upstream
from the product.
► After connecting the outlet water hose to the system, open
the check valve that is downstream from the product.
