7 General operation and dis-
play
7 .1

Operating concept

All the product operating parameters are shown on
the display. You can configure all the settings that
are relevant to operation using the display buttons.
7 .2

Control unit

7 .2 .1 Display buttons

You operate the product using the four display
buttons:
Start/stop the pump
Change the display value
Change the operating parameter
Go to the information pages and input key
7 .3 View and settings on the product
display
Press any button on the display to activate the
main screen. If no action is performed on the dis-
play for more than 10 minutes, the main display
view goes out.

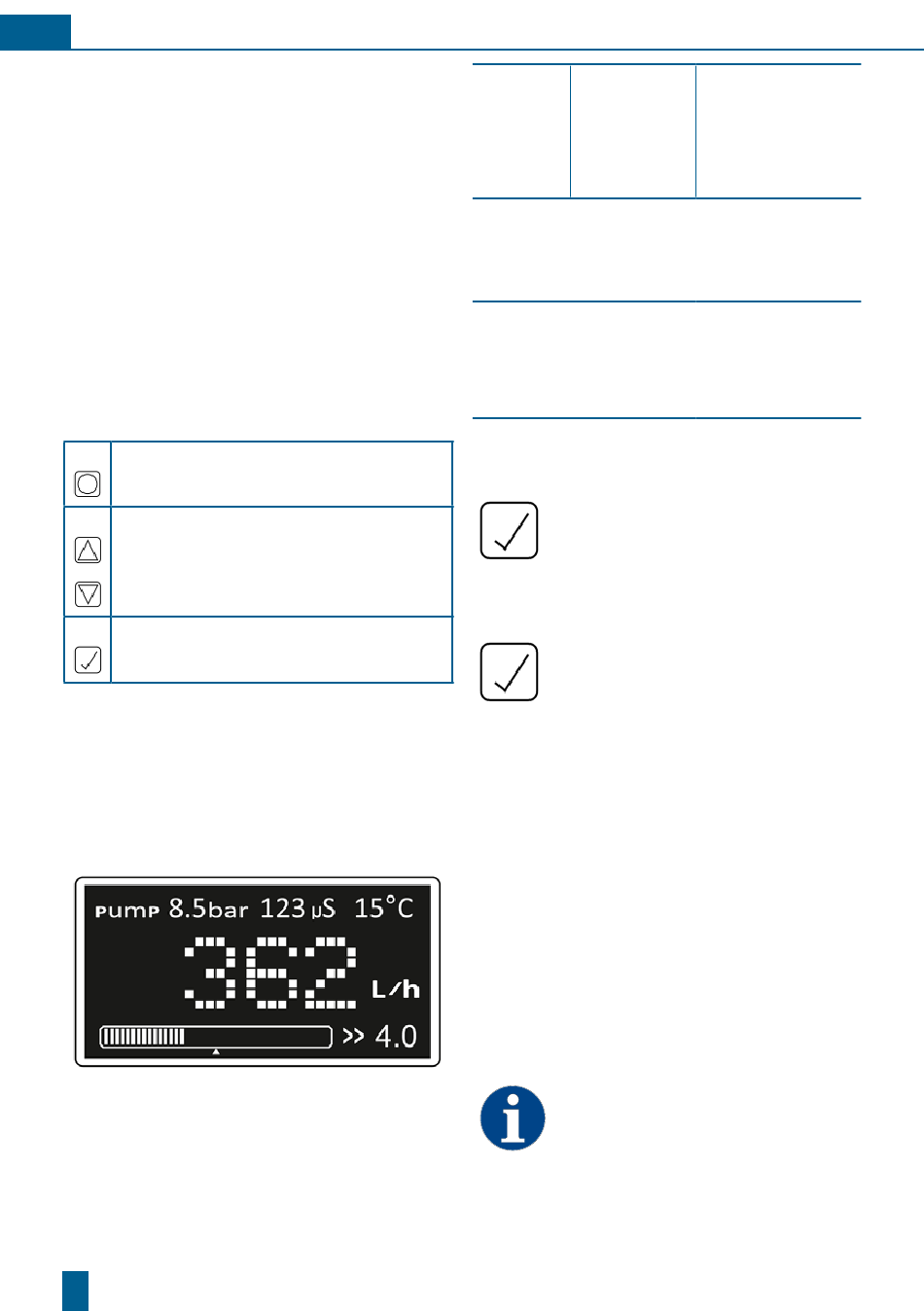

The main display view is divided into three rows:
42
Pump Outlet water
pressure conductivity
(bar) value
(μs/cm) or
(ppm)
C u r r e n t f l o w
You can also use the arrow buttons to select the
counter for the litres per day (l) or system pres-
sure (bar).
System pressure (bar) on the charging bar.
The arrow marking on the charging bar indi-
cates the set switching point for pump pressure
production.
Product information view:
f Press and hold the checkmark button
for three seconds.
The version levels of the software and
firmware are shown on the display.
Operating information view:
f Press the checkmark button again.
The operating information view
appears on the display:
Service DAYS: Days of operation since initial
●
startup
● PUMP HOURS: Pump operating hours
Lt IN: Inlet water counter
●
● Lt OUT: Outlet water counter
● TOT Lt OUT: Amount of outlet water since
first startup (cannot be reset)
● Time and date
7 .4

Calibrating the water counter

To calibrate the water counter (
), contact BWT customer ser-
METER
vice.
Water tempera-
ture (°C)
r a t e ( l / h )
FLOW
