4 Commissioning

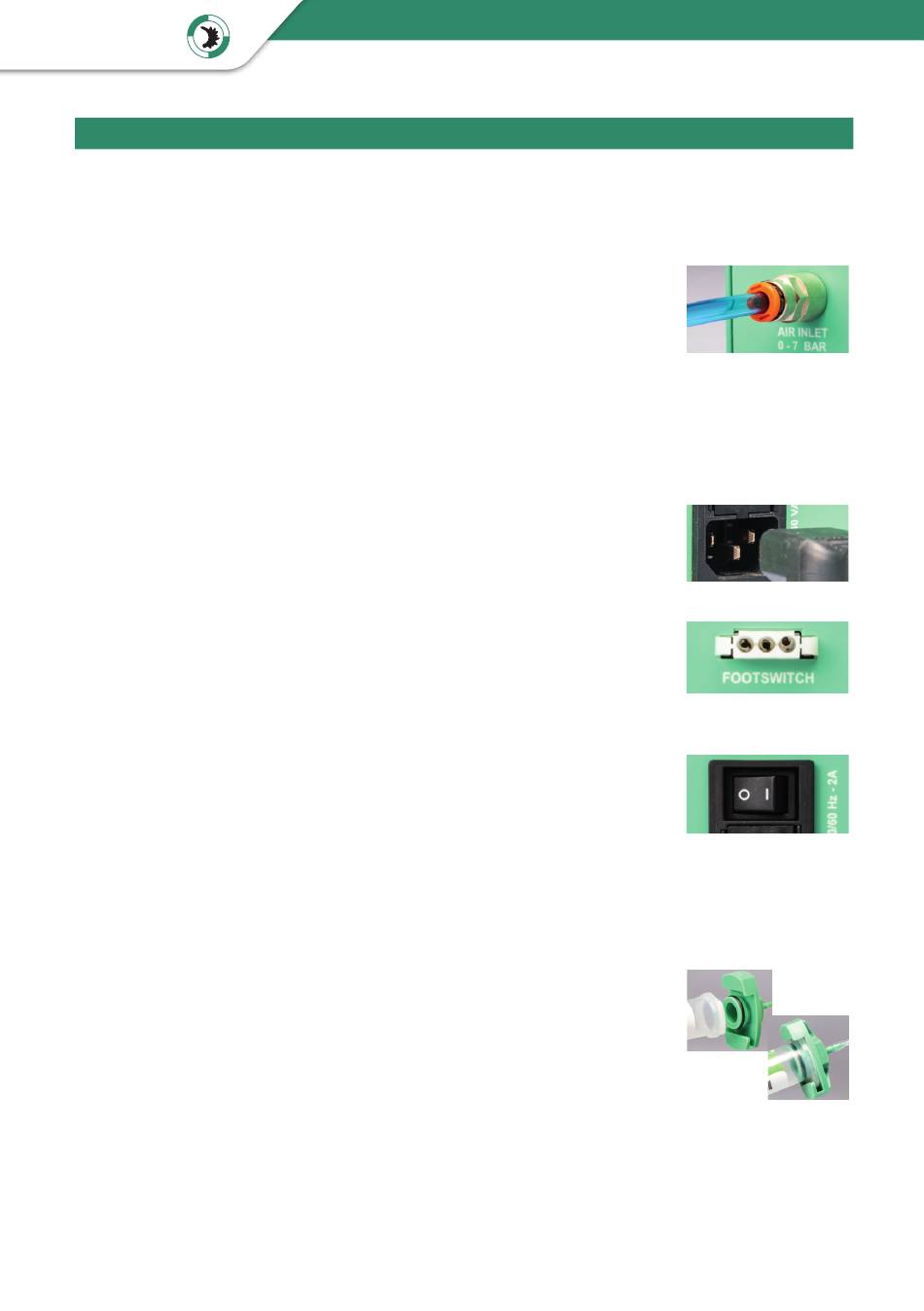

4.1 Connecting the device

• Unpack the dispensing controller and set it up on a
worktable where it will be used . Preferably in a dry location .
• Supply the dispensing unit with compressed air .
Insure that the compressed air supply (5-micron filter must be
used) is dry . Condensation in the airline will damage the unit
and limit the warranty .
• Using the airline hose supplied with the unit, connect the
compressed air inlet on the back of the dispensing unit to
your compressed air supply .
• Connect the power cable to the power connection on back
of the unit .
• The unit can be operated either by finger switch (sold separa-
tely), foot switch or a control cable, if the dispensing controller
is to be integrated with a dispensing robot . All these cables are
inserted into the socket for the foot switch on the back of the
unit .
• Switch on the controller . The display shows the initialisati-
on and the installed software version . After 5 seconds, the
display switches automatically to the standard screen and the
device is ready for operation .
• Check the pressure input (e . g . P-IN: 5 . 6 bar) in the display to
be sure, that the air input pressure is connected .
• Attach a barrel filled with dispensing material using the barrel
adapter by placing the adapter across the barrel and then
locking it with a 90° turn .
