VIEWEG

5 Operating controls

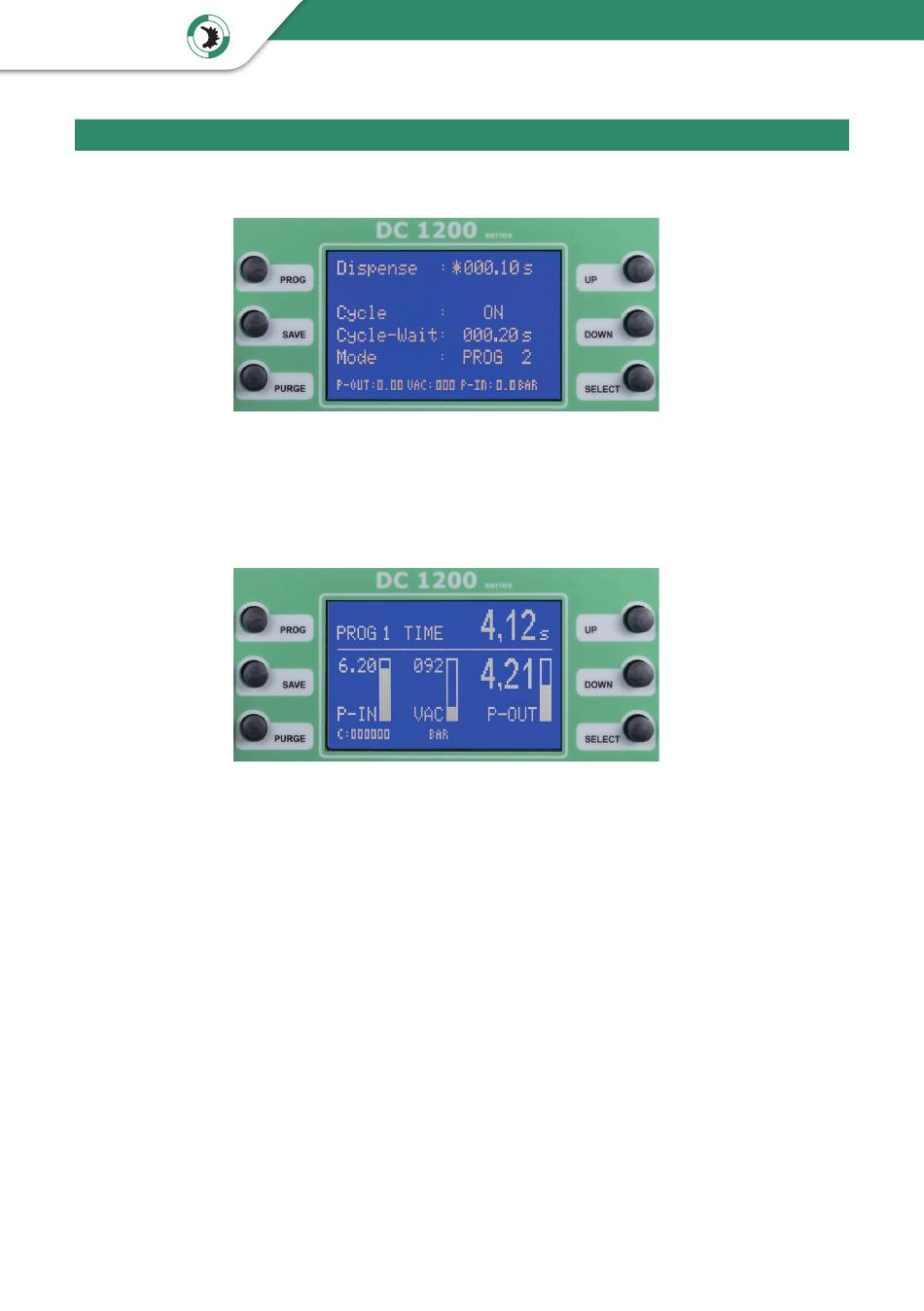

5.1 Start screen

After turning on the device the start screen appears .
After 5 seconds the display returns to the main screen if no action is performed .

5.2 Main screen

The main screen shows clearly all relevant dispensing parameter .
Press the PROG button to go back to the start screen where you can adjust the timer or
to save a dispensing program .

5.3 Status LEDs

The Status-LEDs are located below the graphic display .
DISPENSE
ALARM
The DISPENSE LED lights up when the magnetic valve is opened and
compressed air is present .
The ALARM LED ights up, when one of this happens:
Air pressure Alarm is active
External Alarm signal transmitted by I/O-Port
Operating Instructions DC 1200
26
