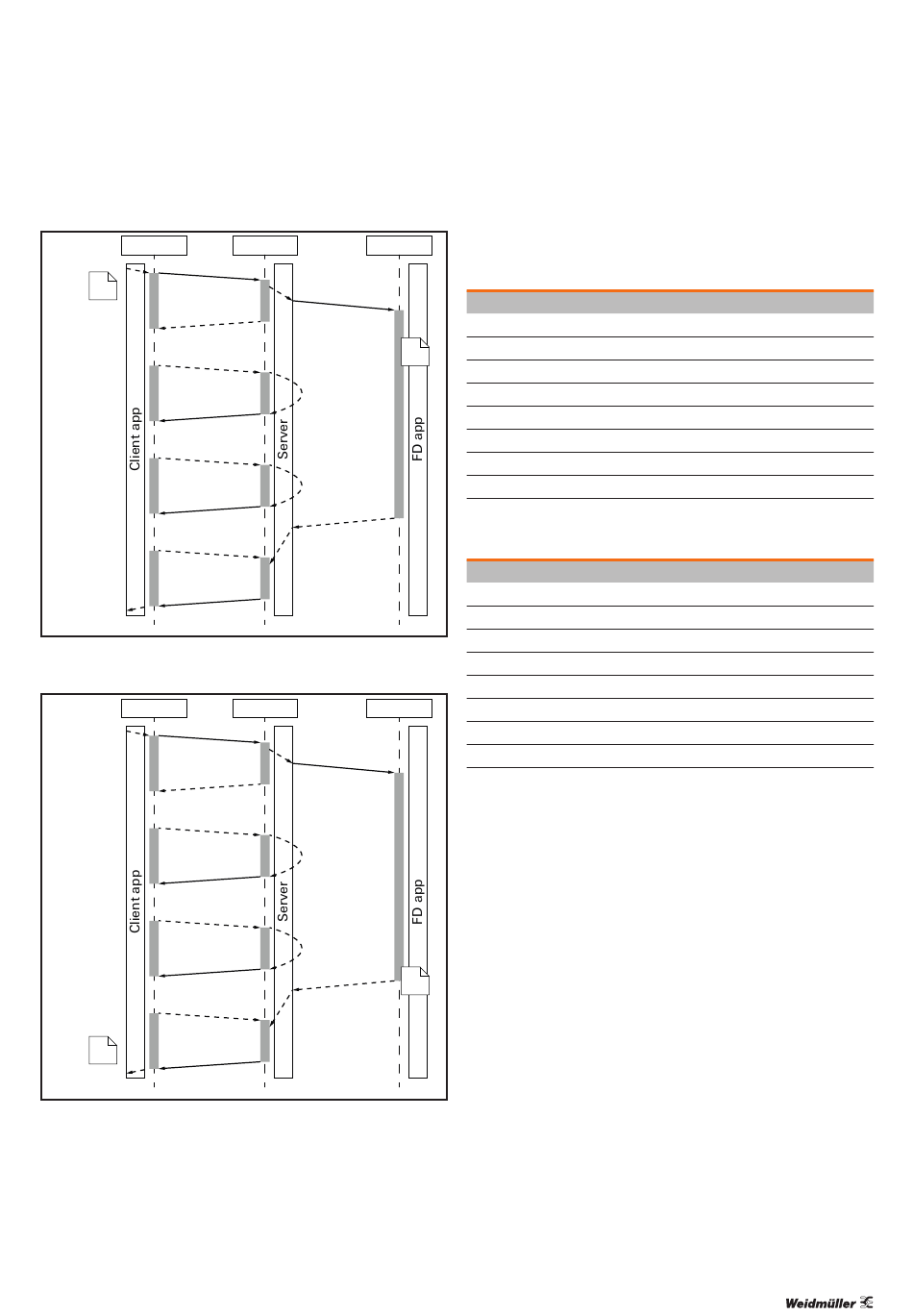

FB_M
write_data.req
acyclic-write.req
data / with data
acyclic-write.res
/ without data
acyclic-read.req
/ without data
acyclic-read.res
/ "resource busy"
acyclic-read.req
/ without data
acyclic-read.res
/ "resource busy"
acyclic-read.req
/ without data
acyclic-read.res
write_data.res
/ with data
Datenobjekt auf IO-Link-Device schreiben
FB_M
read_data.req
acyclic-write.req
/ with data
acyclic-write.res
/ without data
acyclic-read.req
/ without data
acyclic-read.res
/ "resource busy"
acyclic-read.req
/ without data
acyclic-read.res
/ "resource busy"
acyclic-read.req
/ without data
data
acyclic-read.res
read_data.res
/ with data
Datenobjekt auf IO-Link-Device lesen
2547620000/04/03.2021
FBC/IO-M FD
write.req
/ with data
data
/ Resource busy
/ Resource busy
write.conf
/ without data
FBC/IO-M FD
read.req
/ without data
/ Resource busy
/ Resource busy
read.conf
data
/ with data
Handbuch Kommunikationsmodul UR20-4COM-IO-LINK
6 Inbetriebnahme | Datenobjekte auf IO-Link-Devices lesen und schreiben
Adressen für azyklische Zugriffe
Azyklischer Schreibzugriff: Adressierung der Requests (.req)
Protokoll Adresse
PROFIBUS 227 oder 255
PROFINET 227 (0x00E3)
CANopen 0x2200:0
MODBUS-TCP 0x2C00 - 2C7F
EtherCAT 0x4020:1
EtherNet/IP Class 0x64, Instance 1, Attribute 0x78
DeviceNet Class 0x64, Instance 1, Attribute 0x78
POWERLINK 0x2200:0
Azyklischer Lesezugrif: Adressierung der Responses (.res)
Protokoll Adresse
PROFIBUS 227 oder 255
PROFINET 227 (0x00E3)
CANopen 0x2201:0
MODBUS-TCP 0x2D00 - 2D7F
EtherCAT 0x4020:2
EtherNet/IP Class 0x64, Instance 1, Attribute 0x78
DeviceNet Class 0x64, Instance 1, Attribute 0x78
POWERLINK 0x2201:0
