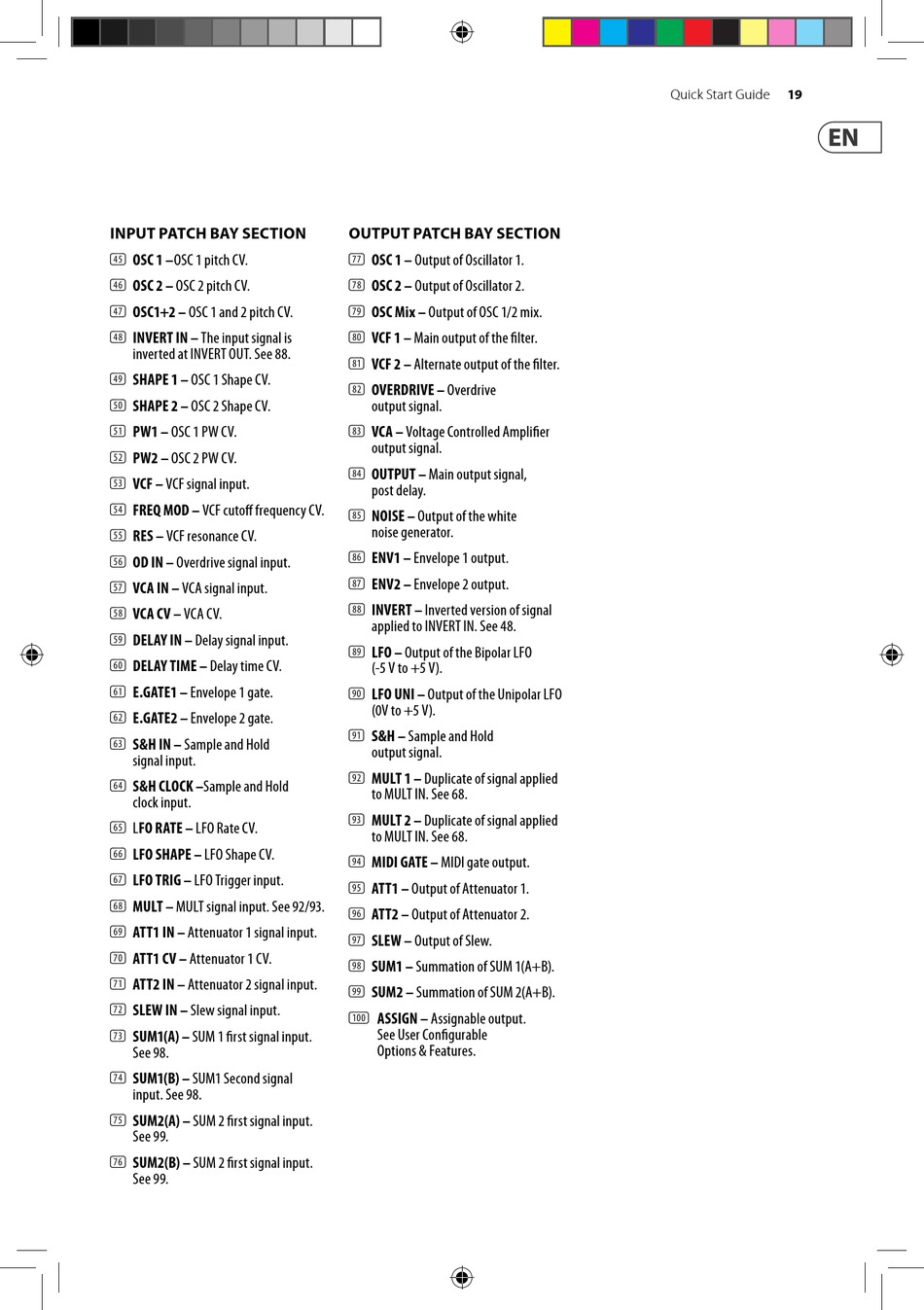

INPUT PATCH BAY SECTION
(45) OSC 1 –OSC 1 pitch CV.
(46) OSC 2 – OSC 2 pitch CV.
(47) OSC1+2 – OSC 1 and 2 pitch CV.
(48) INVERT IN – The input signal is
inverted at INVERT OUT. See 88.
(49) SHAPE 1 – OSC 1 Shape CV.
(50) SHAPE 2 – OSC 2 Shape CV.
(51) PW1 – OSC 1 PW CV.
(52) PW2 – OSC 2 PW CV.
(53) VCF – VCF signal input.
(54) FREQ MOD – VCF cutoff frequency CV.
(55) RES – VCF resonance CV.
(56) OD IN – Overdrive signal input.
(57) VCA IN – VCA signal input.
(58) VCA CV – VCA CV.
(59) DELAY IN – Delay signal input.
(60) DELAY TIME – Delay time CV.
(61) E.GATE1 – Envelope 1 gate.
(62) E.GATE2 – Envelope 2 gate.
(63) S&H IN – Sample and Hold
signal input.
(64) S&H CLOCK –Sample and Hold
clock input.
(65) LFO RATE – LFO Rate CV.
(66) LFO SHAPE – LFO Shape CV.
(67) LFO TRIG – LFO Trigger input.
(68) MULT – MULT signal input. See 92/93.
(69) ATT1 IN – Attenuator 1 signal input.
(70) ATT1 CV – Attenuator 1 CV.
(71) ATT2 IN – Attenuator 2 signal input.
(72) SLEW IN – Slew signal input.
(73) SUM1(A) – SUM 1 first signal input.
See 98.
(74) SUM1(B) – SUM1 Second signal
input. See 98.
(75) SUM2(A) – SUM 2 first signal input.
See 99.
(76) SUM2(B) – SUM 2 first signal input.
See 99.
OUTPUT PATCH BAY SECTION
(77) OSC 1 – Output of Oscillator 1.
(78) OSC 2 – Output of Oscillator 2.
(79) OSC Mix – Output of OSC 1/2 mix.
(80) VCF 1 – Main output of the filter.
(81) VCF 2 – Alternate output of the filter.
(82) OVERDRIVE – Overdrive
output signal.
(83) VCA – Voltage Controlled Amplifier
output signal.
(84) OUTPUT – Main output signal,
post delay.
(85) NOISE – Output of the white
noise generator.
(86) ENV1 – Envelope 1 output.
(87) ENV2 – Envelope 2 output.
(88) INVERT – Inverted version of signal
applied to INVERT IN. See 48.
(89) LFO – Output of the Bipolar LFO
(-5 V to +5 V).
(90) LFO UNI – Output of the Unipolar LFO
(0V to +5 V).
(91) S&H – Sample and Hold
output signal.
(92) MULT 1 – Duplicate of signal applied
to MULT IN. See 68.
(93) MULT 2 – Duplicate of signal applied
to MULT IN. See 68.
(94) MIDI GATE – MIDI gate output.
(95) ATT1 – Output of Attenuator 1.
(96) ATT2 – Output of Attenuator 2.
(97) SLEW – Output of Slew.
(98) SUM1 – Summation of SUM 1(A+B).
(99) SUM2 – Summation of SUM 2(A+B).
(100) ASSIGN – Assignable output.
See User Configurable
Options & Features.
