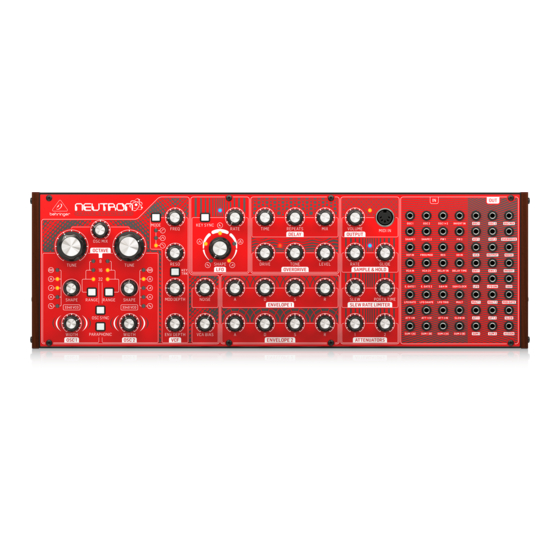

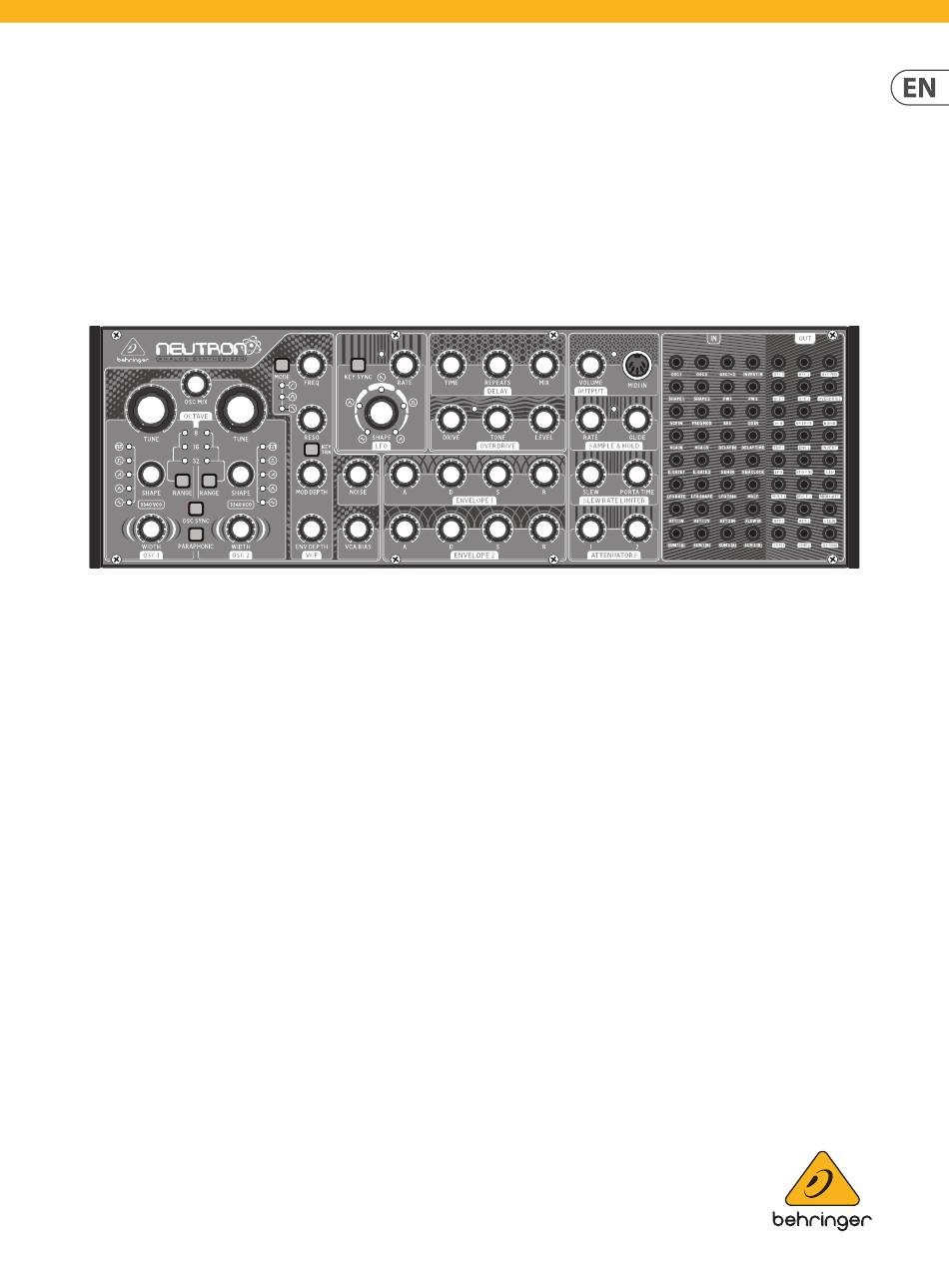

- Seite 1 User Manual NEUTRON Paraphonic Analog and Semi-Modular Synthesizer with Dual 3340 VCOs, Multi-Mode VCF, 2 ADSRs, BBD Delay and Overdrive Circuit in a Eurorack Format...
-
Seite 2: Inhaltsverzeichnis
Thank you Thank you very much for expressing your confidence in Behringer by purchasing the Neutron analog synthesizer - with 2 x 3340 VCOs, analog bucket brigade delay (BBD), soft-clipping overdrive circuit, 5 shape morphing LFO, 12 dB multi-mode 2 pole filter, paraphonic mode, semi-modular... -
Seite 3: Important Safety Instructions
Lab Gruppen, Lake, Tannoy, Turbosound, TC Electronic, manufacturer, or sold with This symbol, wherever it appears, TC Helicon, Behringer, Bugera and Coolaudio are the apparatus. When a cart alerts you to the presence of uninsulated trademarks or registered trademarks of Music Tribe... -
Seite 4: About The Neutron
NEUTRON User Manual About the Neutron • Paraphonic, dual analog VCO design which allows for ingenious music creation. • Semi-modular design requires no patching for immediate performance. • Dual 3340 VCOs authentically recreate the classic sound creation. • 32 in/24 out jack patch bay for sound patching experimentation. -
Seite 5: Introduction
V2.0.0. The Neutron software must be updated start exploring the versatile world of analog music synthesis. to at least V2.0.0 in order to use the new features and Neutron App. You will find an overview of the physical control elements in the next chapter. -
Seite 6: Controls
NEUTRON User Manual 3. Controls 3.1 Top Controls (20) (18) (19) (23) (24) (25) (2) (3) (13) (12) (37) (38) (26) (27) (28) (39) (40) (14) (15) (29) (32) (16) (21) (41) (42) (31) (30) (43) (44) (17) (22) (33) - Seite 7 NEUTRON User Manual 3.1.1 Oscillator Section VCO (Voltage Controlled 3.1.3 LFO Section (Low Frequency Oscillator) Oscillator) (20)(18) (19) (2) (3) (18) SHAPE - Adjusts the shape of the LFO with the ability to blend between waveforms. (19) RATE - Adjusts the speed of the selected LFO waveform.
-
Seite 8: Output Section
NEUTRON User Manual 3.1.7 Envelope Section (43) ATTENUATOR 1 - Used to reduce the amplitude of the input signal. ATT1 can be controlled by a control voltage. See 58. Envelope 1 (44) ATTENUATOR 2 - Passive attenuator, reduces the amplitude of a signal. -
Seite 9: Rear Panel
MIDI INPUT. (96) ATT2 – Output of Attenuator 2. (107) USB PORT – Connects to a computer via standard USB cable. The Neutron will display in your DAW as a class-compliant USB MIDI device, capable of (97) SLEW –... -
Seite 10: Overview
The five oscillator shapes are: 4.1 Connection The Neutron has a ¼" (6.35 mm) mono jack output on the rear of the unit which Tone Mod is also duplicated on the patch bay via a 3.5 mm output. Audio input is via a ¼"... -
Seite 11: Filter Section
4.6 LFO Section The Neutron has a powerful 12 dB filter with three modes available: The Neutron LFO has a frequency range of 0.01 Hz to 10 kHz. This allows low frequency modulation up to audio rate modulation using the LFO. -
Seite 12: Sample And Hold
MIDI note is being played. Try different The Neutron responds to pitch bend messages via USB MIDI or the MIDI IN and combinations of slow and fast settings to create different sounds and textures. -
Seite 13: User Configurable Options & Features
LED is lit. That oscillator will now be playing a 'C'. This enables Use this function to sync the LFO to your DAWs MIDI Clock so the Neutron’s LFO the accurate tuning of intervals. For example, play an 'F' note, then tune as plays in time with your song depending on the chosen settings. - Seite 14 Poly Chain on or off depending on how you would like the MIDI information to be handled. If Poly Chain is on, the last Neutron will act as if it is Setting midi channel (auto disable dip switches)
- Seite 15 NEUTRON User Manual Poly chain system MIDI Keyboard MIDI IN MIDI IN MIDI IN MIDI THRU MIDI THRU MIDI THRU To next Neutron From next Neutron Mixing console Headphones Active Loudspeakers...
- Seite 16 NEUTRON User Manual Poly chain system using Neutron’s audio input MIDI Keyboard MIDI IN MIDI IN MIDI IN OUTPUT INPUT INPUT MIDI THRU MIDI THRU MIDI THRU OUTPUT Mixing console Headphones Active Loudspeakers...
- Seite 17 NEUTRON User Manual Advanced Features Access Action Result Exit Change Assignable Output (ASSIGN) Hold OSC SYNC Use RANGE buttons to change Output function LFO shape displays selected option. Hold OSC SYNC Envelope Retriggering Hold OSC SYNC The KEY TRK button toggles the retriggering mode...
-
Seite 18: Eurorack Installation
NEUTRON User Manual 6. Eurorack Installation The Neutron synthesizer can be taken out of its factory chassis and fitted into a standard Eurorack case (not supplied). We recommend that this procedure is undertaken only by an experienced service technician, to prevent personal injury, or damage to the unit. The Eurorack case will need its own suitable power supply unit to power the Neutron synthesizer. -
Seite 19: Software Update & Calibration
For this, you'll need a 3.5 mm mono patch cable, a digital voltmeter, and MIDI-OX installed on your PC. 6. In the Command Window, enter the SysEx command to be sent to the Neutron. For ASSIGN out calibration at 1 V, the command is: F0 00 20 32 28 7F 10 20 F7 1. - Seite 20 Warning! When completing this procedure please keep the level down low as it may get loud. Open the Neutron by removing the top 8 screws. Lift the top panel carefully from the lower edge to give access to trim pots VR37 and VR38. Take care not to put strain on the ribbon connector.
-
Seite 21: Patch Bay
8. Patch Bay 8.1 Tips and Tricks of the Patch Bay In a patchable semi-modular synthesizer such as the Neutron, inputs and outputs 1. Patch Sample and Hold out into FREQ MOD in. Turn MOD DEPTH to 12 o’clock. are independent from one another. It is up to the user to patch the modules Then Turn the S&H rate to 3 o’clock and the GLIDE to 12 0’clock. -
Seite 22: Neutron Set-Up Examples
NEUTRON User Manual 9. Neutron Set-up Examples Studio System MIDI KEYBOARD USB B (MIDI OUTPUT OVER USB) Audio Output (to be proccessed by Neutron) Audio Input Audio Output MIDI Input MIDI Input Over USB Over USB Power Adaptor USB B... - Seite 23 NEUTRON User Manual Live Set-up MIDI KEYBOARD MIDI OUTPUT MIDI Keyboard MIDI OUT MIDI IN Power Adaptor Mixing console Headphones Active Loudspeakers...
-
Seite 24: Preset Patches
Check if the Neutron MIDI channel is set to the same one as the transmitting device using the DIP switches on the rear. Check that you are using either USB or MIDI. The Neutron may not respond if two Quantum Loop - A Sub Sawtooth sound with VCF squelch. A sample & hold noise sets of MIDI data are being transmitted to it via USB and the MIDI IN port at the loop is added to give some movement to the sound. -
Seite 25: Specifications
Other possible solutions Release: 1.5 ms to 6 s (exponential release) include the use of a DI box to connect the Neutron to your audio mixer or sound Output Section card where the transformer will isolate the audio connections. - Seite 26 NEUTRON User Manual Outputs (TS 3.5 mm) Inputs (TS 3.5 mm) OSC 1 Max. +14 dBu OSC 1 Control voltage: 1 V per octave OSC 2 Max. +14 dBu OSC 2 Control voltage: 1 V per octave OSC Mix Max. +14 dBu OSC 1&2...
-
Seite 27: Appendix A
(SysEx) commands. A MIDI utility such as the popular MIDI OX can be used to send the SysEx command data string to the Neutron by using the USB *note: the device ID is not the same as MIDI channel. The valid range is MIDI connection between a host computer and the Neutron. - Seite 28 NEUTRON User Manual Global Setting Command Sysex Notes Set OSC 1 autoglide F0 00 20 32 28 ID 0A 24 MM F7 MM = 0-24 Range is -12->+12 so 12 is no autoglide. Default:12-No autoglide Set OSC 2 autoglide F0 00 20 32 28 ID 0A 25 MM F7 Default:12-No autoglide...
-
Seite 29: Appendix B Neutron App
2. Power your Neutron and Computer on. 3. Open the Neutron app. 4. Select ‘Neutron’ in the MIDI device list for IN and OUT. It is possible to have multiple Neutrons connected with the same device ID. The input and output will be in corresponding positions in the list if you have multiple devices and have not change the device ID via SysEx. -
Seite 30: Glossary
Specified as the duration of time for an envelope to reach the adjust another parameter. The Neutron uses keyboard tracking to move the filter maximum level after it has been triggered on by a key press or gate signal. - Seite 31 NEUTRON User Manual Overdrive: To push to excess or drive too hard. Slew Rate: The rate of change of a voltage or control signal. Parameter: A setting whose value can be changed. Soft Clipping: is a technique for adding warm harmonic distortion to your audio.
- Seite 32 NEUTRON User Manual...
- Seite 33 NEUTRON User Manual FEDErAL COmmUNICATIONS COmmISSION COmPLIANCE INFOrmATION NEUTrON Responsible Party Name: music Tribe Commercial NV Inc. Address: 5270 Procyon Street Las Vegas, NV 89118 Phone Number: +1 702 800 8290 NEUTrON complies with the FCC rules as mentioned in the following paragraph: This equipment has been tested and found to comply with the limits for a Class B...
