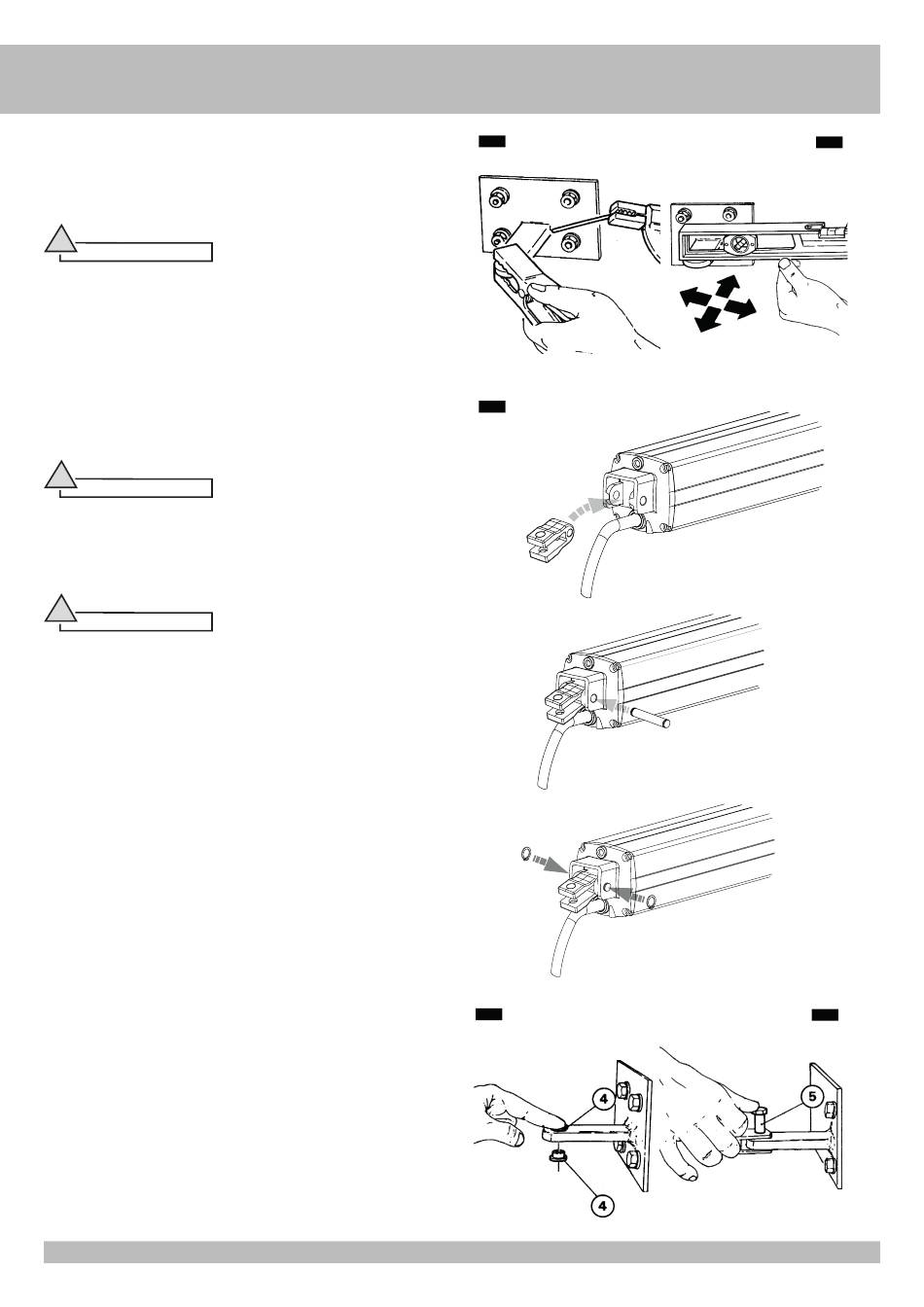

3.2 FIXING THE REAR OPERATOR MOUNTING
Position the rear mounting at the height previously measured and weld it on the anchorage
plate with two weld points (C11).
Check the lengthwise and crosswise alignment of the mounting
Complete the welding and clean away the residues with a wire brush.
!
Warning
• Before welding, ensure that there are no bushes (B4 pos. 5) in the mounting, and
that the fitting hole is properly protected from weld residues.
• When the welded zone has cooled down, apply a coat of anti-rust paint.
3.3 TEMPORARY INSTALLATION OF THE OPERATOR
Temporarily mount the operator to find the correct fixing position of the front mounting.
!
Warning
Handle the operator with care during assembly.
Fit the fork (C13 pos. 1) to the operator bottom. Lock the fork with the special pin (C13 pos.
2) and fix both with the two snap rings (C13 pos. 3).
Fit the two vibration damping bushes
Position the fork of the operator on to the mounting and lock it with the vertical pin (C15 pos.
5) after greasing abundantly.
!
Warning
Grease both the pin and the housings
(C12) with a water level.
(C14 pos. 4) above and below the mounting.
abundantly.
