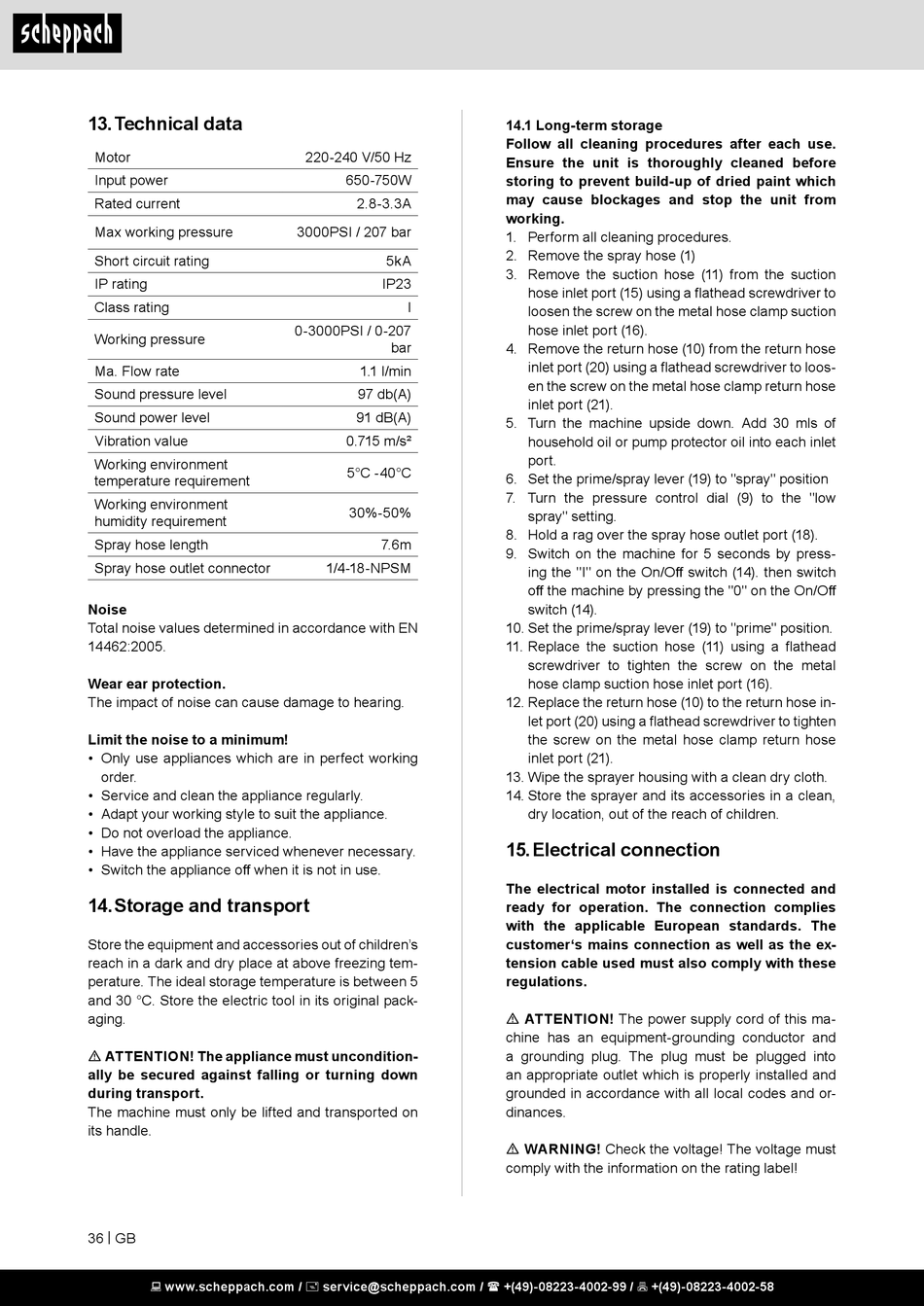

13. Technical data

Motor
Input power
Rated current
Max working pressure
Short circuit rating
IP rating
Class rating
Working pressure
Ma. Flow rate
Sound pressure level
Sound power level
Vibration value
Working environment
temperature requirement
Working environment
humidity requirement
Spray hose length
Spray hose outlet connector
Noise
Total noise values determined in accordance with EN
14462:2005.
Wear ear protection.
The impact of noise can cause damage to hearing.
Limit the noise to a minimum!
• Only use appliances which are in perfect working
order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
• Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.

14. Storage and transport

Store the equipment and accessories out of children's
reach in a dark and dry place at above freezing tem-
perature. The ideal storage temperature is between 5
and 30 °C. Store the electric tool in its original pack-
aging.
m ATTENTION! The appliance must uncondition-
ally be secured against falling or turning down
during transport.
The machine must only be lifted and transported on
its handle.
36 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
220-240 V/50 Hz
650-750W
2.8-3.3A
3000PSI / 207 bar
5kA
IP23
I
0-3000PSI / 0-207
bar
1.1 l/min
97 db(A)
91 dB(A)
0.715 m/s²
5°C -40°C
30%-50%
7.6m
1/4-18-NPSM

14.1 Long-term storage

Follow all cleaning procedures after each use.
Ensure the unit is thoroughly cleaned before
storing to prevent build-up of dried paint which
may cause blockages and stop the unit from
working.
1. Perform all cleaning procedures.
2. Remove the spray hose (1)
3. Remove the suction hose (11) from the suction
hose inlet port (15) using a flathead screwdriver to
loosen the screw on the metal hose clamp suction
hose inlet port (16).
4. Remove the return hose (10) from the return hose
inlet port (20) using a flathead screwdriver to loos-
en the screw on the metal hose clamp return hose
inlet port (21).
5. Turn the machine upside down. Add 30 mls of
household oil or pump protector oil into each inlet
port.
6. Set the prime/spray lever (19) to "spray" position
7. Turn the pressure control dial (9) to the "low
spray" setting.
8. Hold a rag over the spray hose outlet port (18).
9. Switch on the machine for 5 seconds by press-
ing the "I" on the On/Off switch (14). then switch
off the machine by pressing the "0" on the On/Off
switch (14).
10. Set the prime/spray lever (19) to "prime" position.
11. Replace the suction hose (11) using a flathead
screwdriver to tighten the screw on the metal
hose clamp suction hose inlet port (16).
12. Replace the return hose (10) to the return hose in-
let port (20) using a flathead screwdriver to tighten
the screw on the metal hose clamp return hose
inlet port (21).
13. Wipe the sprayer housing with a clean dry cloth.
14. Store the sprayer and its accessories in a clean,
dry location, out of the reach of children.

15. Electrical connection

The electrical motor installed is connected and
ready for operation. The connection complies
with the applicable European standards. The
customer's mains connection as well as the ex-
tension cable used must also comply with these
regulations.
m ATTENTION! The power supply cord of this ma-
chine has an equipment-grounding conductor and
a grounding plug. The plug must be plugged into
an appropriate outlet which is properly installed and
grounded in accordance with all local codes and or-
dinances.
m WARNING! Check the voltage! The voltage must
comply with the information on the rating label!
