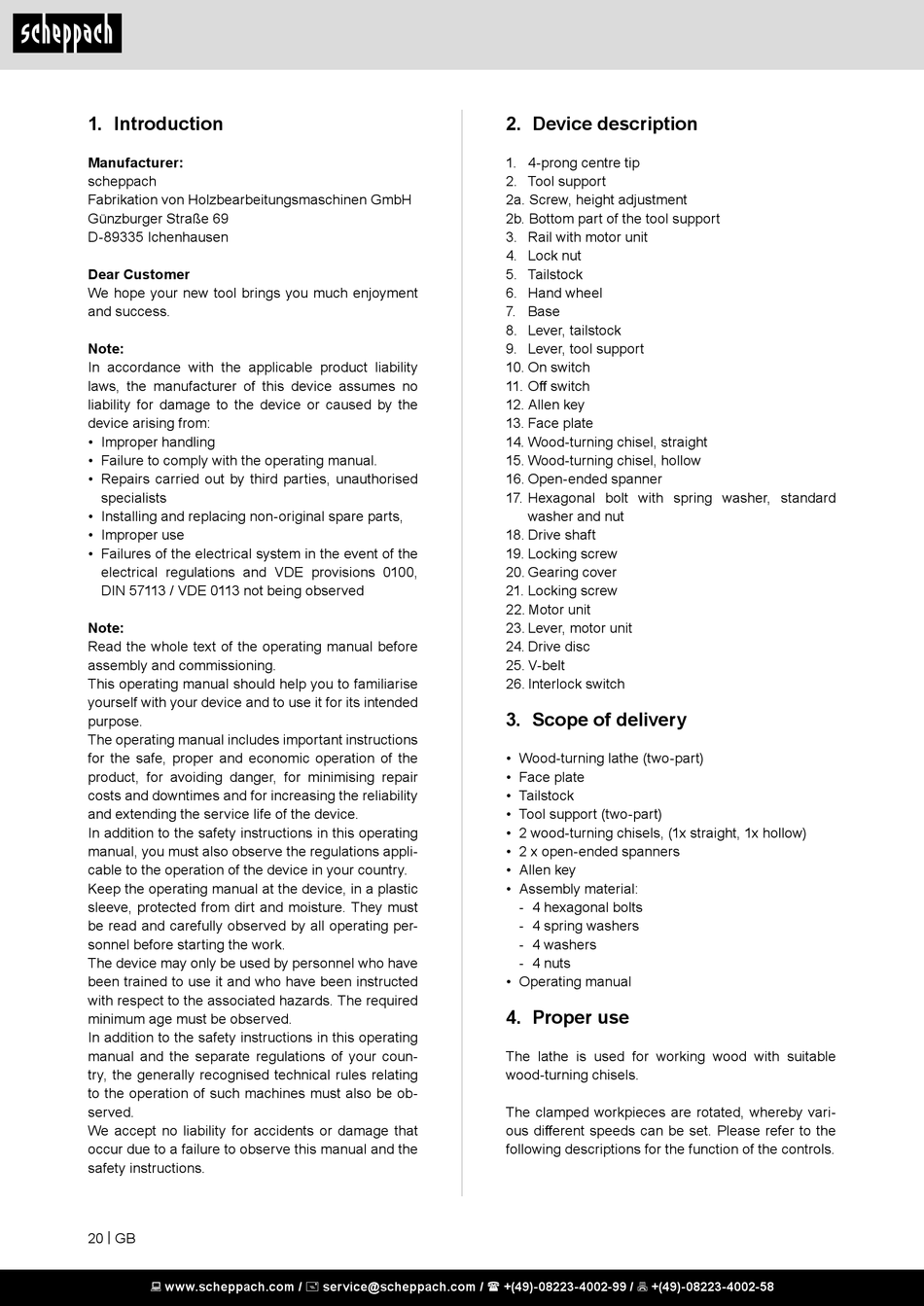

1. Introduction

Manufacturer:
scheppach
Fabrikation von Holzbearbeitungsmaschinen GmbH
Günzburger Straße 69
D-89335 Ichenhausen
Dear Customer
We hope your new tool brings you much enjoyment
and success.
Note:
In accordance with the applicable product liability
laws, the manufacturer of this device assumes no
liability for damage to the device or caused by the
device arising from:
• Improper handling
• Failure to comply with the operating manual.
• Repairs carried out by third parties, unauthorised
specialists
• Installing and replacing non-original spare parts,
• Improper use
• Failures of the electrical system in the event of the
electrical regulations and VDE provisions 0100,
DIN 57113 / VDE 0113 not being observed
Note:
Read the whole text of the operating manual before
assembly and commissioning.
This operating manual should help you to familiarise
yourself with your device and to use it for its intended
purpose.
The operating manual includes important instructions
for the safe, proper and economic operation of the
product, for avoiding danger, for minimising repair
costs and downtimes and for increasing the reliability
and extending the service life of the device.
In addition to the safety instructions in this operating
manual, you must also observe the regulations appli-
cable to the operation of the device in your country.
Keep the operating manual at the device, in a plastic
sleeve, protected from dirt and moisture. They must
be read and carefully observed by all operating per-
sonnel before starting the work.
The device may only be used by personnel who have
been trained to use it and who have been instructed
with respect to the associated hazards. The required
minimum age must be observed.
In addition to the safety instructions in this operating
manual and the separate regulations of your coun-
try, the generally recognised technical rules relating
to the operation of such machines must also be ob-
served.
We accept no liability for accidents or damage that
occur due to a failure to observe this manual and the
safety instructions.
20 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58

2. Device description

1. 4-prong centre tip
2. Tool support
2a. Screw, height adjustment
2b. Bottom part of the tool support
3. Rail with motor unit
4. Lock nut
5. Tailstock
6. Hand wheel
7. Base
8. Lever, tailstock
9. Lever, tool support
10. On switch
11. Off switch
12. Allen key
13. Face plate
14. Wood-turning chisel, straight
15. Wood-turning chisel, hollow
16. Open-ended spanner
17. Hexagonal bolt with spring washer, standard
washer and nut
18. Drive shaft
19. Locking screw
20. Gearing cover
21. Locking screw
22. Motor unit
23. Lever, motor unit
24. Drive disc
25. V-belt
26. Interlock switch

3. Scope of delivery

• Wood-turning lathe (two-part)
• Face plate
• Tailstock
• Tool support (two-part)
• 2 wood-turning chisels, (1x straight, 1x hollow)
• 2 x open-ended spanners
• Allen key
• Assembly material:
- 4 hexagonal bolts
- 4 spring washers
- 4 washers
- 4 nuts
• Operating manual

4. Proper use

The lathe is used for working wood with suitable
wood-turning chisels.
The clamped workpieces are rotated, whereby vari-
ous different speeds can be set. Please refer to the
following descriptions for the function of the controls.
