Audio Connection; Power Supply; How To Switch The Control Unit On/Off - Beyerdynamic MCWDIGITAL 200 Bedienungsanleitung

1.2.3

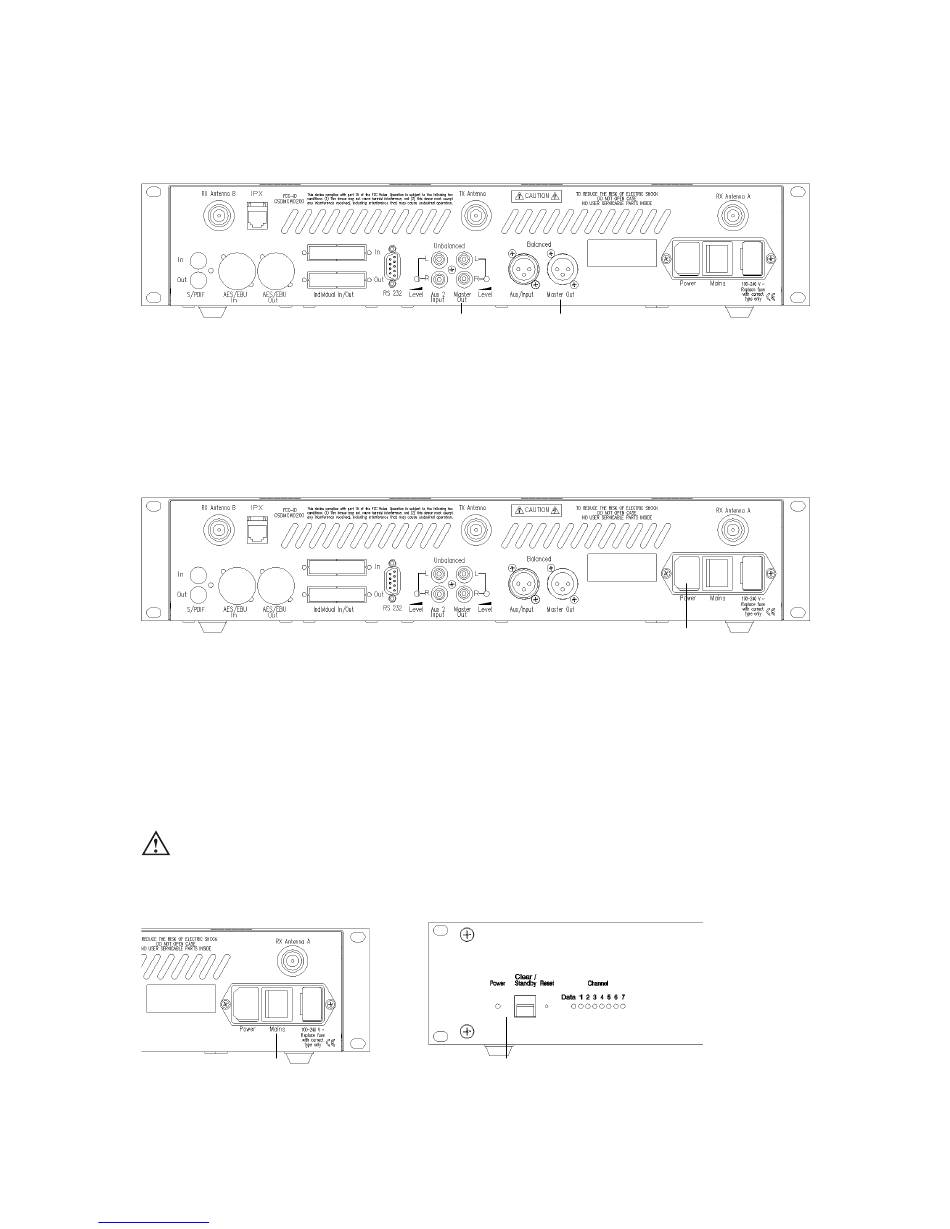

• Connect the XLR (10) or RCA (14) master output to the input of a mixing console/amplifier.
• Always route cables running to the unit where they will not be pinched or cut by heavy or sharp objects.
1.2.4
• Verify that the voltage rating of the unit matches that of the AC mains outlet you are to use. If you connect the unit to the
wrong voltage, you may seriously damage it.
• Always route cables running to the unit where they will not be pinched or cut by heavy or sharp objects.
• Connect the MCW-D 200 control unit to the mains (9). The internal power supply unit of the control unit can adjust auto-
matically between 90 V and 240 V at 50 - 60 Hz.
1.2.5
• Switch on the MCW-D 200 with the On/Off-switch (8) on the rear.
• During the first 15 seconds the MCW-D 200 control unit is started, the Power LED (1) is flashing green and an operation is not
yet possible.
• The Power LED (1) on the front will illuminate green, when the control unit is ready for operation.
•
Rear
42
Downloaded from www.Manualslib.com

Audio Connection

Power Supply

How to switch the Control Unit on/off

CAUTION: Always turn off the power when making input or output connections.
