1.2.6
• Depending on the configuration of the MCW-D 200 control unit 5 or more channel-LEDs (4) will illuminate green
(standard: 5 channels).
Important:
•
1.2.7
• When mounting the MCW-D 200 control unit into a 19"-rack housing leave 1 HU for a ventilation panel above and
under the control unit.
1.2.8
• If you want to operate a media control system and a PC simultaneously, connect the PC to the IPX network connection (5) and
the media control system to the RS 232 connection (17).
• For the connection to the IPX network connection use a crossover cable.
• The IPX adjustments are explained in the protocol.
Downloaded from www.Manualslib.com

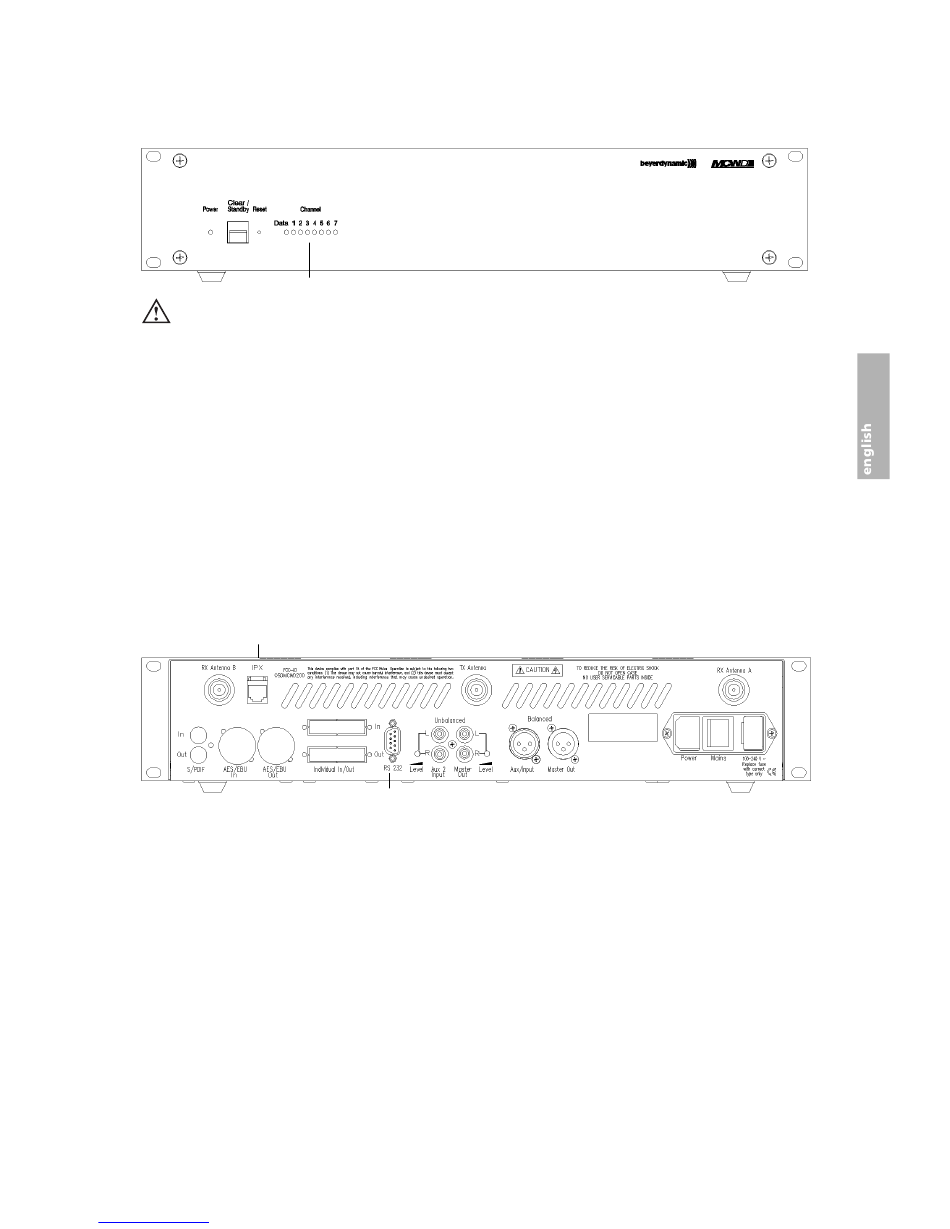

LED Indication

(4)
If less than 5 LEDs are illuminated, it might be that individual channels have been switched off with the MCW-D 200
Editor Software.

Rack Mounting

Simultaneous Operation of Media Control System and PC

(5)
