1.3 Connecting and Positioning of remote Antennae

The MCW-D 200 control unit can also be operated with remote antennae. Low attenuation connecting cables are available
in different lengths. Please note that all three antennae have to be connected remotely. The transmitting antenna should be
mounted in the centre and the receiving antennae on the left and right. The range can be increased by using a directional antenna
(e.g. CA 2413, gain approx. 6 dB).
Depending on the cable attenuation you should use antenna amplifiers if the cables are long.
Installation with remote antennae for normal Meetings
The CA 2413 planar antenna is connected to the MCW-D 200 control unit and mounted onto a stand with the CA 2462 mounting
kit For more information refer to the "MCW-D Design Guide".
Important:
•
• Size of the room:
• Number of participants:
• Antenna position:
• Alignment:
Cable type
Max. cable length
Min. bending radius
44
Downloaded from www.Manualslib.com

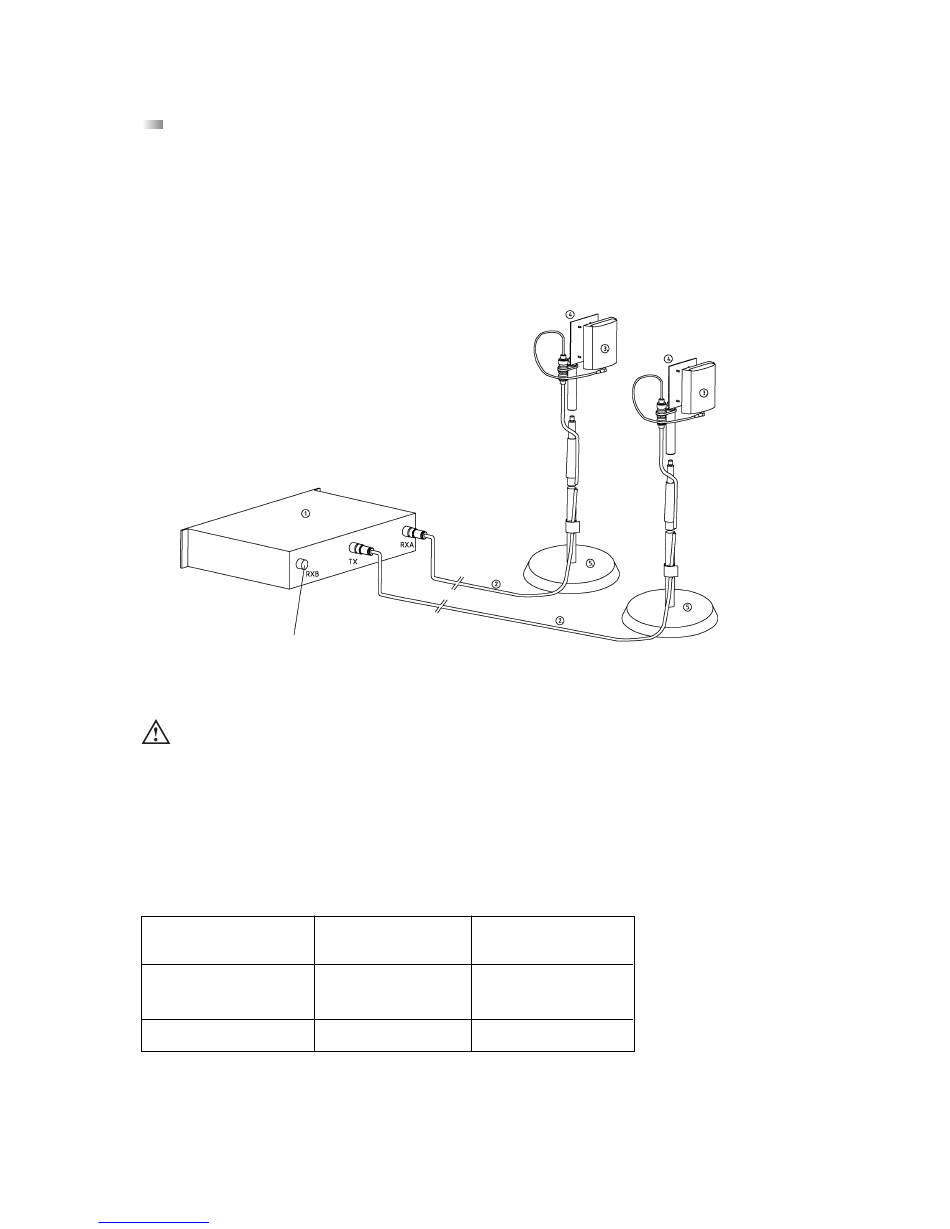

(1) MCW-D 200 control unit
(2) CA 2421/2422 or
(3) CA 2413 planar antenna
(4) CA 2462 mounting kit 3/8"
(5) ST 600 stand 3/8"
see RX A
There must be an unobstructed path between the microphone units and the antennae. The range is around
30 m. For optimum range the surface of the table is important, wood or plastic tables are ideal, but metal tables can
cause interferences and reduce the range.
up to 400 m 2 (20 x 20)
30 - 100
The antennae should be placed as high as possible above the table
in a position close to the participants.
Place the antennae so that they point to the participants (the convex side must point to the front).
Aircell 7
Standard
CA 2420
max. 20 m
= 1 x CA 2422
or 2 x CA 2421
25 mm
manuals search engine
CA 2431/2432 antenna cable
Ercoflex 10
Low Attenuation
CA 2430
max. 40 m
40 mm
