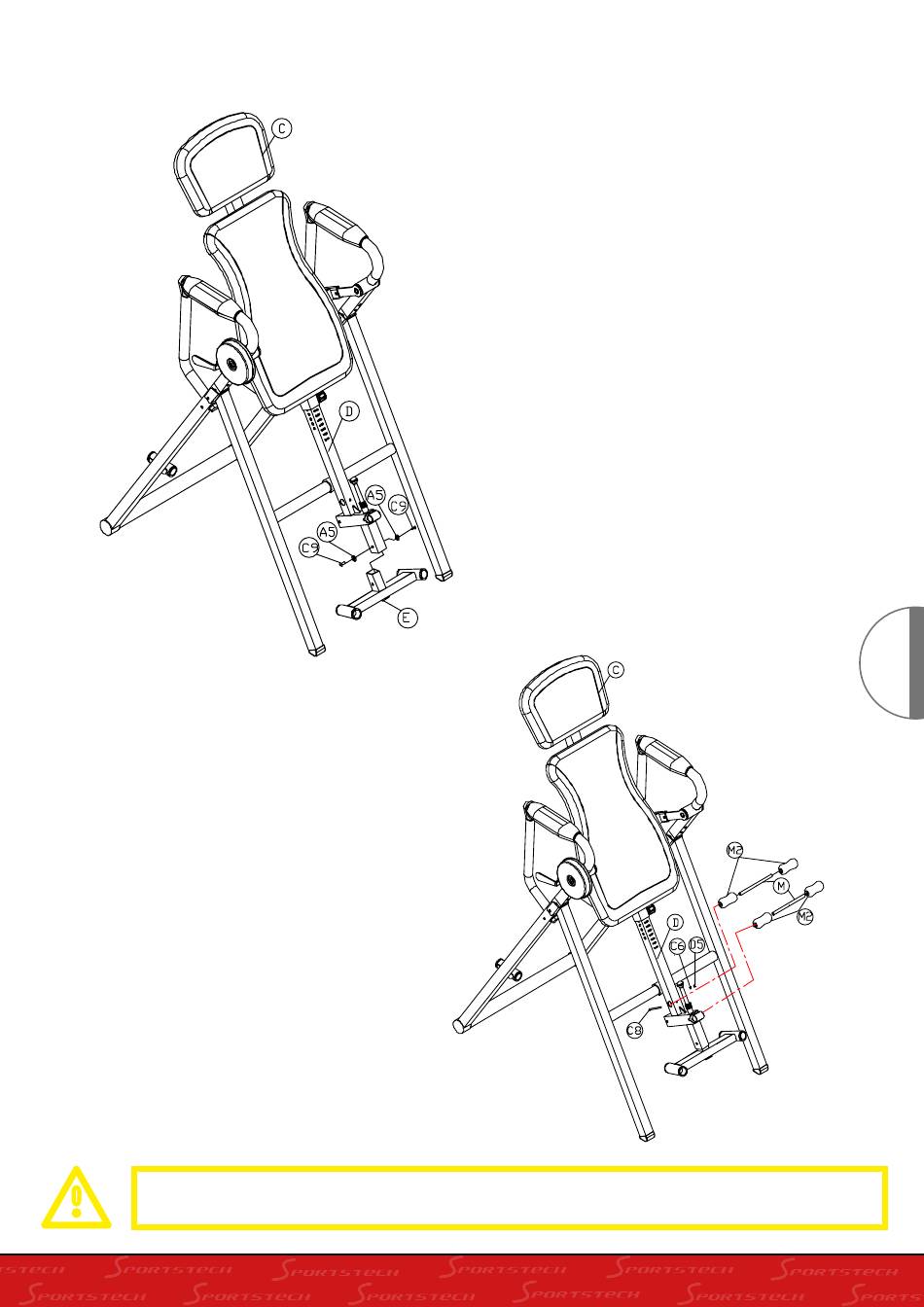

STEP 6
a. Attach Foam Tube (M) onto Adjustable Boom
(D) and fix it with Hex Bolt (C8) + Flat Washer
(C6) and Lock Nut (D5).
b. Insert Foam Tube (M) into Adjustable Boom
(D) and fix Foam (M2) onto Foam Tube (M).
Firmly tighten all component parts and pre-assembled parts!
STEP 5
a. Insert Foot Plate (E) into Adjustable Boom (D)
and fix it with Hex Bolt (E2) + Flat Washer (A5)
and Lock Nut (A6).
