Anhang 7 Anschluss des EC-Ventilatormotors, Fehlerdiagnosen/Störungen und
Konfiguration des Drehzahlregelung
7.1

Anschluss des ECbluefin-Ventilatormotors

Assembly instructions ECblue BASIC-MODBUS, ECblue BASIC
12.3

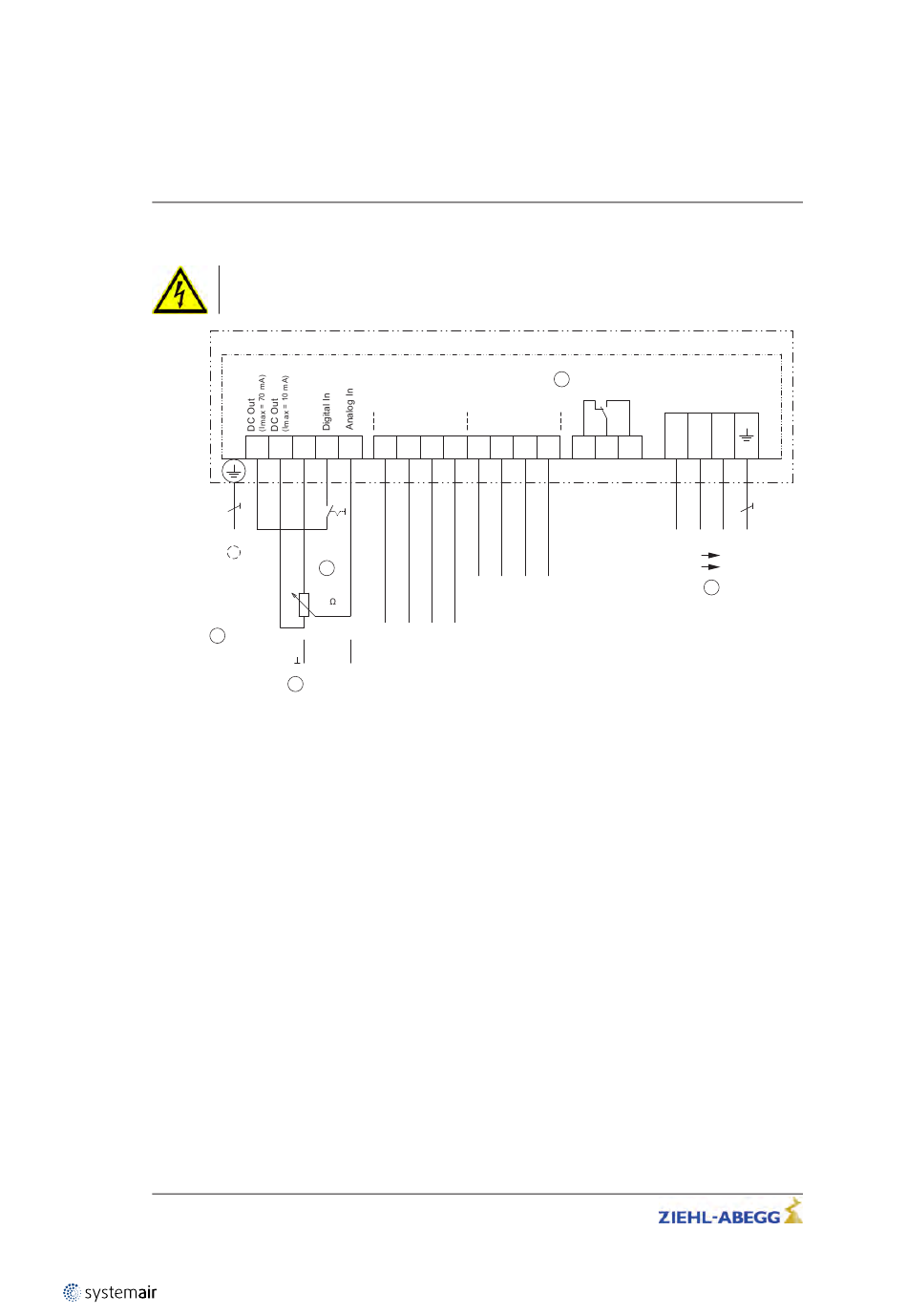

Connection diagrams

Adhere to the further information under Mains connection.
UL: Input (Line)
Copper connecting leads with an insulation temperature of at least 80 °C must be used!
ECblue BASIC-MODBUS
24V 10V GND D1
PE
Externe Drehzahlvorgabe
External speed setting
4
1 Line voltage see rating plate
2 Relay output "K1" for fault reporting (factory function), max. contact load AC 250 V 2 A
- During operation the relay is energised, i.e. the connections "11" and "14" are bridged
- In case of a fault, the relay is de-energised, i.e. the connections "11" and "12" are bridged
- In case of a shutdown using the enable (D1 = Digital In 1) the relay remains energised
3 Digital enable input (factory function)
- Device "ON" when contact closed
- Device "Off" when contact open
4 External speed setting
5 Input 0...10 V, 4...20 mA
6 PWM input, f = 1...10 kHz
L-BAL-F078D-GB 1939 Index 003
(_ _ _ _ _-_I_.D_._ _ _ _), (_ _ _ _ _-_I_.G_._ _ _ _)
PORT 1
A B
E1 GND ID1 GND
(D+) (D-)
1 0
Aus / Ein
Off / On
3
10 k
GND MODBUS Addressing
(RS-485)
+
Eingang
Input
5
0...10 V
4...20 mA
Part.-No.
73/78
Kontaktbelastung
2
Contact rating
max. AC 250 V 2 A
PORT 2
A B
12 11 14
ID2
(D+) (D-)
NC CO NO
K1
Netzspannung
Line voltage
GND MODBUS Addressing
(RS-485)
Enclosure
L1 L2 L3
L1 N
L1 L2 L3/N PE
Leistungsschild
Rating-plate
1
AP00001C
28.08.2018
output |
