Installation
1.2
Hydraulical connection
1.2.1 Installation Trägergerät/Hebezeug Installation on carrier/lifting devise
•
The hydraulic installation is done according to the enclosed hydraulic circuit diagram.
•
The connection to the support frame/lifting device may be accomplished only by qualified personnel.
•
According to hydraulic circuit diagram there is a valve block in the both circuits, which ensures that the
products do slide of the device at pressure loss.
Requirements for hydraulic operation (operating hydraulics of
the carrier):
Connection the device to the energy supply system be sure that the environment is free of dirt and that the
•
connecting hoses are free of abrasion and don not stuck in outstanding parts, while moving.
•

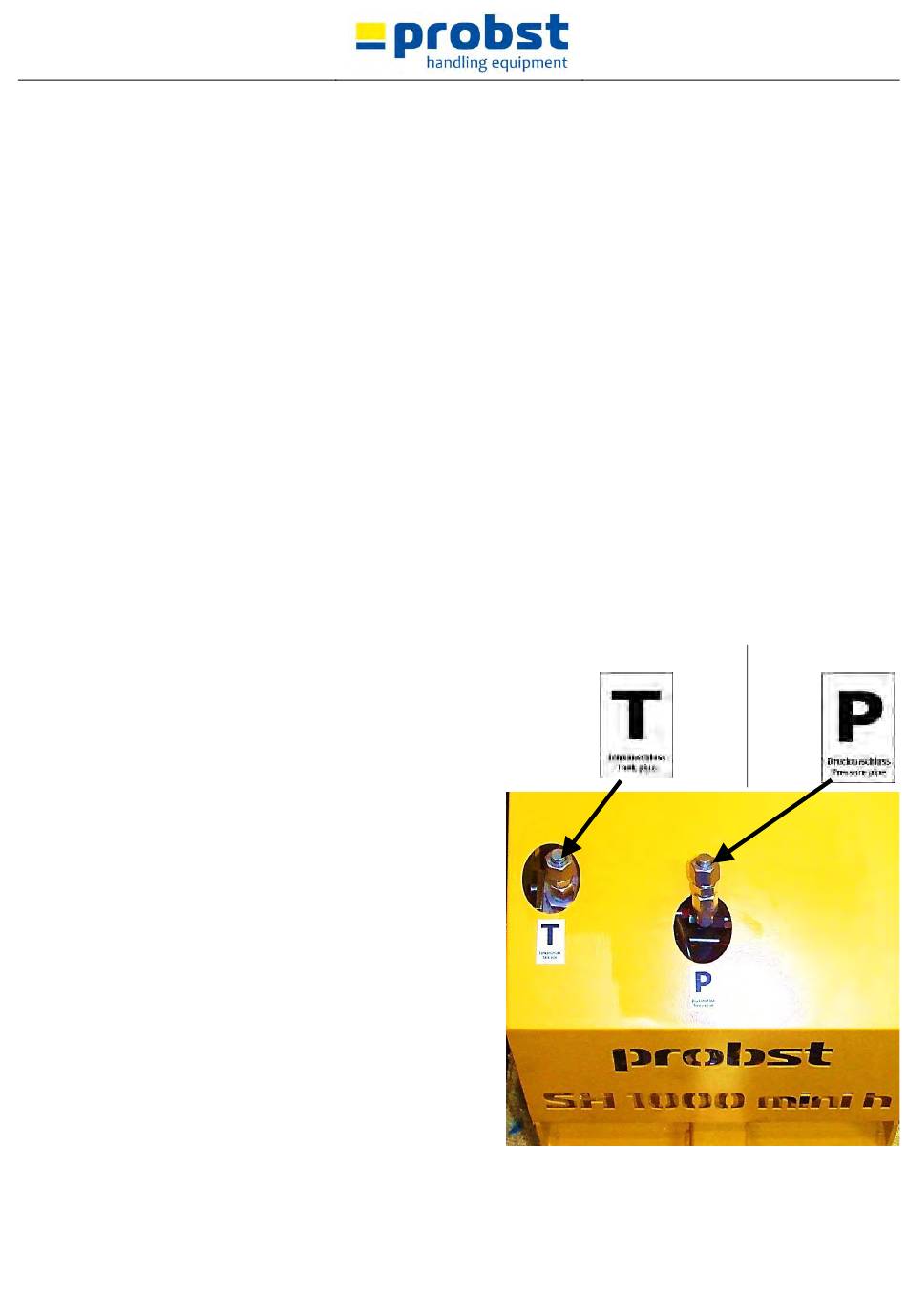

The hydraulic line to the oil tank of the carrier (wheel loader) is marked
with the letter "T".
•
The hydraulic line for the oil pressure is marked with the letter "P".
5240.0020
•
Volumetric flow (l/min), usable min. 16, max.
80
•
Working pressure (bar), usable min. 80, max.
320
•
Backflow pressure: max. 10 bar
•
Lockable control lever for operating hydraulics
(continuous oil flow). Required oil flow at minimum
16 l/min.
Tank connection
V4
22 / 34
Pressure connection
GB
