2.9 M.2_SSD (NGFF) Module Installation Guide
The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and
versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2
Socket (M2) can accommodate either a M.2 SATA3 6.0 Gb/s module or a M.2 PCI Express
module up to Gen3 x4 (32 Gb/s).
* The M2_1 connector is shared with the SSATA3_3; the M2_2 connector is shared with
the SSATA3_2.
* If you install CPU with 28 lanes, the M2_1 only supports SATA type M.2 module.

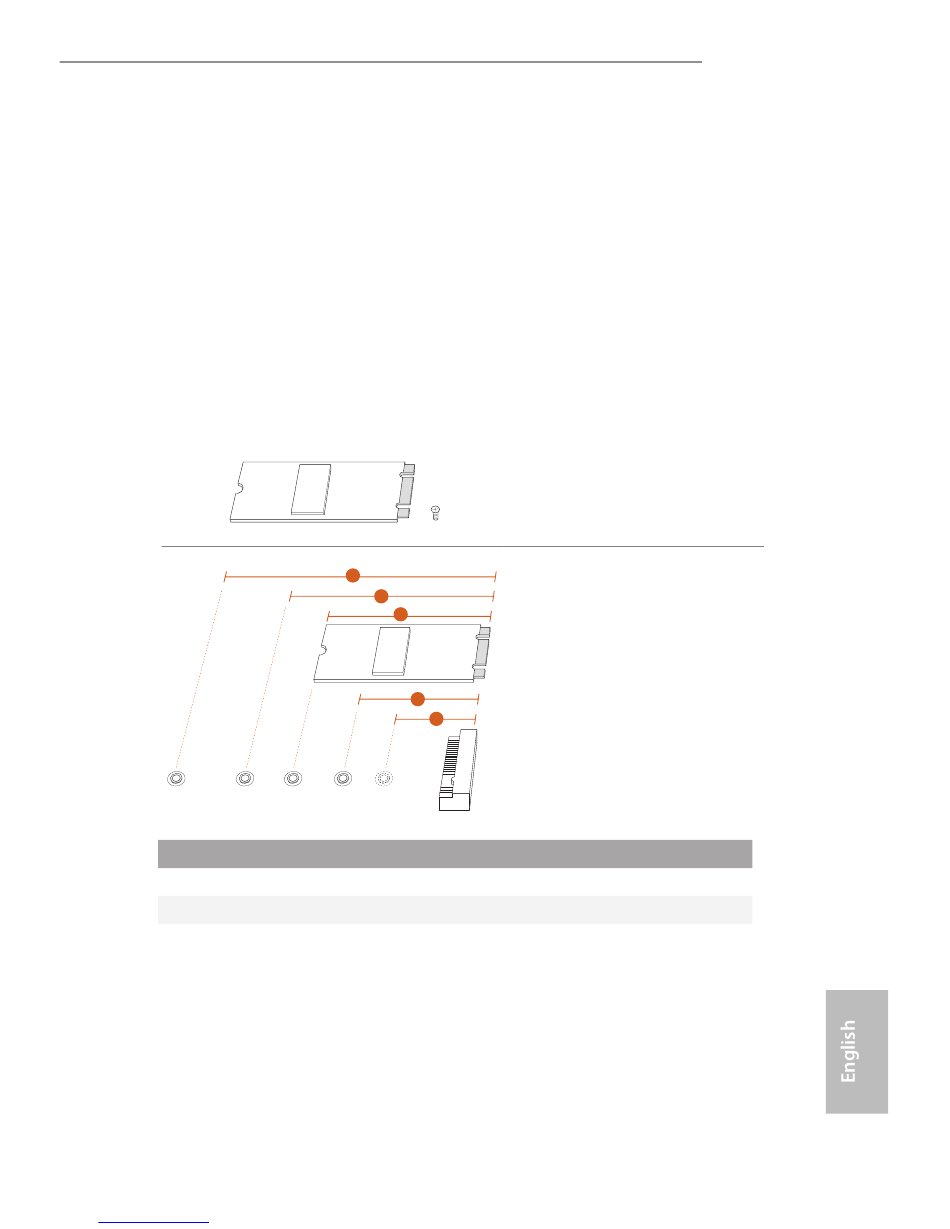

Installing the M.2_SSD (NGFF) Module
The following is an example of installing M.2_SSD (NGFF) module into the M2_2.
E
Nut Location
PCB Length
Module Type
Downloaded from www.Manualslib.com
5
4
D C B A
No. 1
A
3cm
Type2230 Type 2242
manuals search engine
Step 1
Prepare a M.2_SSD (NGFF) module
and the screw.
Step 2
Depending on the PCB type and
3
length of your M.2_SSD (NGFF)
module, find the corresponding nut
location to be used.
2
1
2 3
B C
4.2cm 6cm
Type2260 Type 2280
X99 Taichi
4 5
D E
8cm 11cm
Type 22110
