ASROCK X99 Taichi Handbuch Seite 27

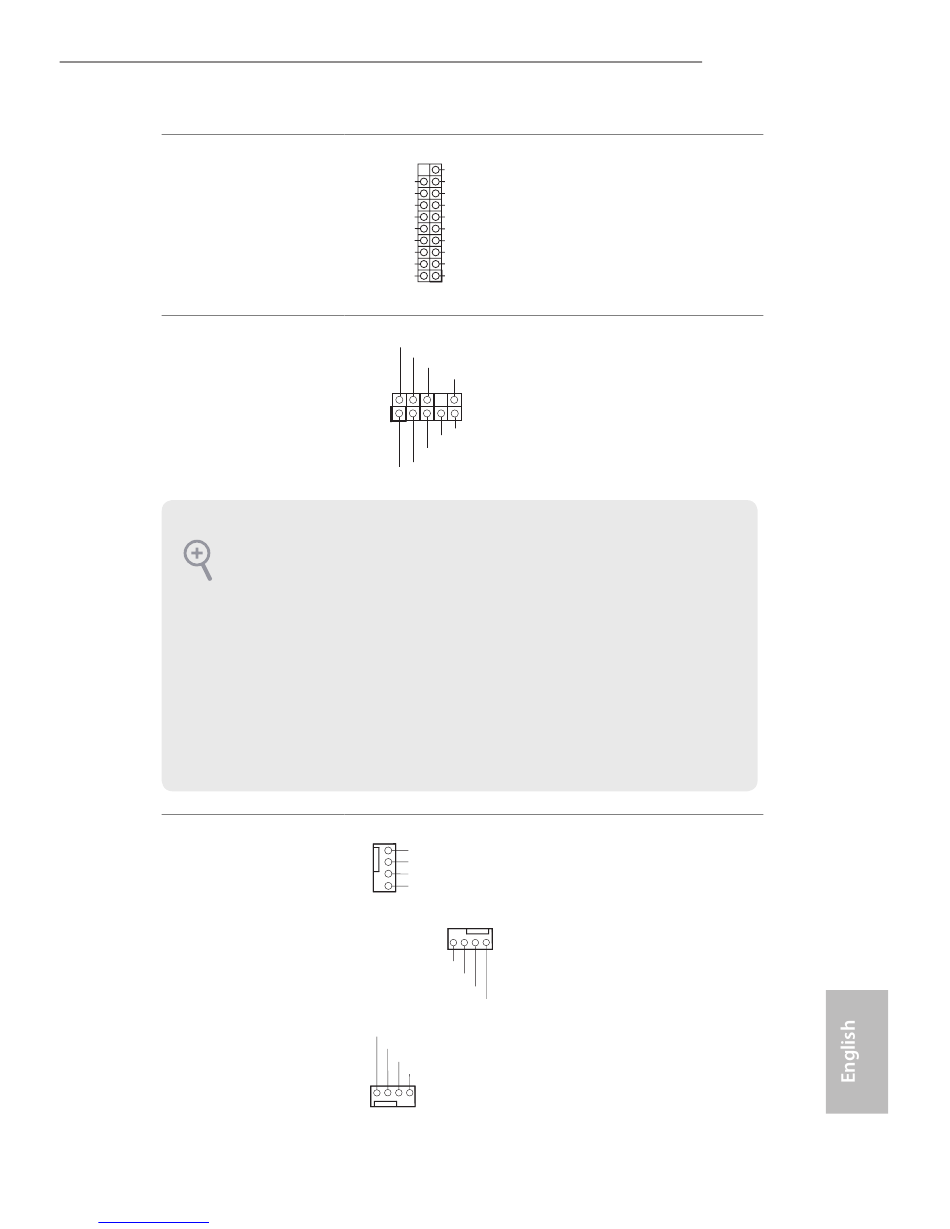

USB 3.0 Header
(19-pin USB3_1_2)
(see p.1, No. 10)
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.1, No. 27)
Chassis Fan Connectors
(4-pin CHA_FAN1)
(see p.1, No. 28)
(3-pin CHA_FAN2)
(see p.1, No. 12)
(3-pin CHA_FAN3)
(see p.1, No. 9)
Downloaded from www.Manualslib.com
IntA_PA_SSRX-
IntA_PA_SSRX+
IntA_PA_SSTX-
IntA_PA_SSTX+
IntA_PA_D-
IntA_PA_D+
1
1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must sup-
port HDA to function correctly. Please follow the instructions in our manual and chassis
manual to install your system.
2. If you use an AC'97 audio panel, please install it to the front panel audio header by the
steps below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for the HD audio panel only. You don't need to connect
them for the AC'97 audio panel.
E. To activate the front mic, go to the "FrontMic" Tab in the Realtek Control panel and
adjust "Recording Volume".
FAN_SPEED_CONTROL
GND
FAN_VOLTAGE
CHA_FAN_SPEED
manuals search engine
There is one USB 3.0 header
Vbus Vbus
Vbus IntA_PB_SSRX- on this motherboard.
IntA_PB_SSRX+
GND This USB 3.0 header can
GND IntA_PB_SSTX-
IntA_PB_SSTX+ support two ports.
GND
GND IntA_PB_D-
IntA_PB_D+
Dummy
1
This header is for
GND
PRESENCE#
connecting audio devices
MIC_RET
OUT_RET
to the front audio panel.
OUT2_L
J_SENSE
OUT2_R
MIC2_R
MIC2_L
Please connect fan cables
GND
FAN_VOLTAGE
to the fan connectors and
CHA_FAN_SPEED
FAN_SPEED_CONTROL
match the black wire to
the ground pin. CHA_
FAN fan speed can be
controlled through UEFI
CHA_FAN_SPEED
or A-Tuning.
FAN_VOLTAGE
GND
FAN_SPEED_CONTROL
X99 Taichi
25
