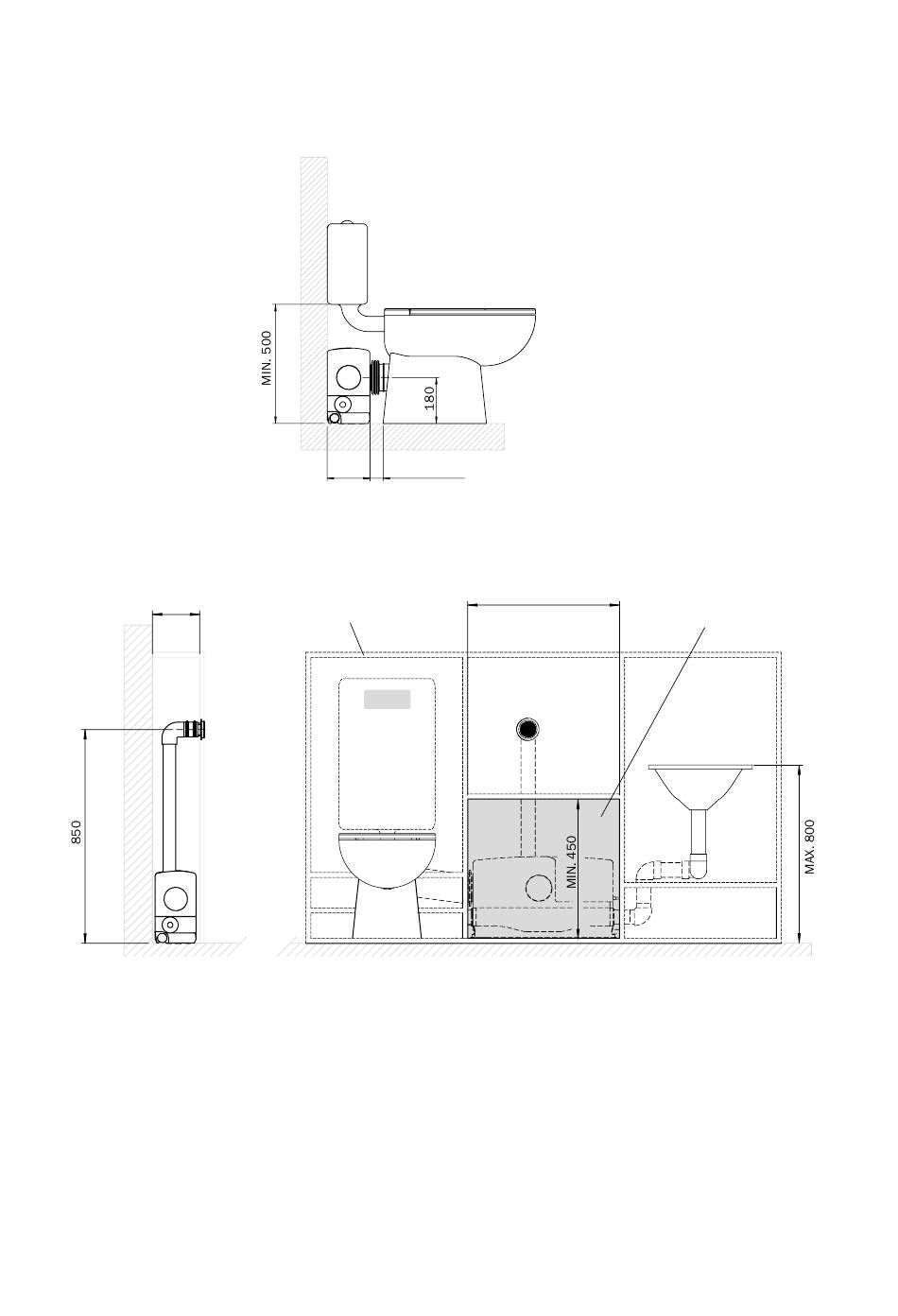

Installation dimensions (mm)
MIN. 190
20. Installation dimensions (mm)
Behind toilet
167 MAX. 130
Behind partition
MIN. 600
MIN. 190
2 1
MAX. 350
5
4
Side view Front view
2%
Figure 14 (1)
DN 50
6
3
MAX. 350
44
DN 50
