Toilet connection

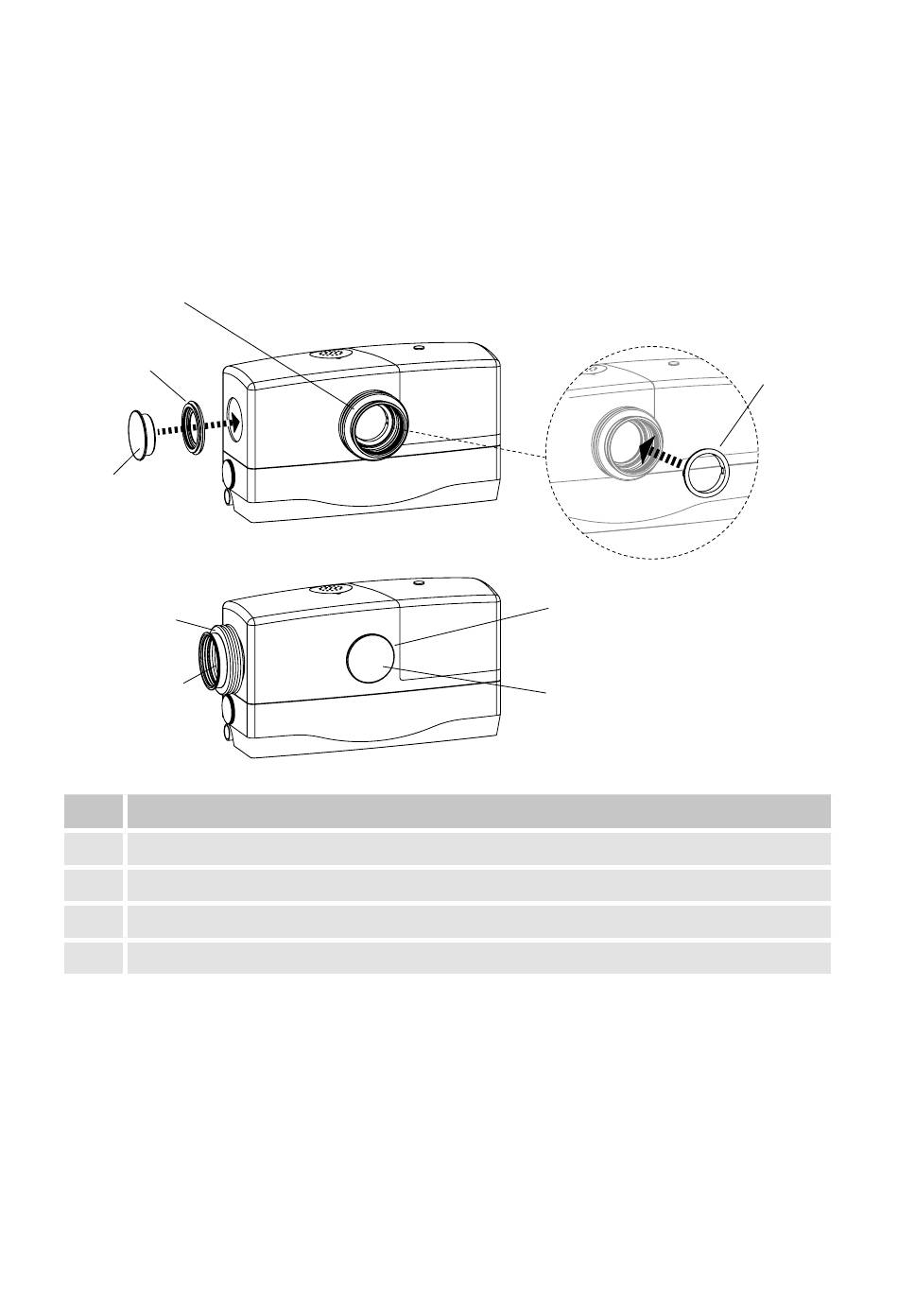

> FLOWCB is designed both for direct connection to the front of the unit when in-
stalled directly behind the toilet (set up A), or for side connection to a sewage pipe
when installed behind a partition (set up B).
The unused inlet is sealed using the push-fit sealing cap (4) and seal (3).
>
> The sealing sleeve (1) is attached to the unit by the clip-on ring clamp (2).
1
3
4
1
2
Pos Description
1
DN 100 sealing sleeve
2
Clamp ring
3
Seal
4
Sealing cap
ATTENTION!
When installed behind a partition the unit should be vented externally using a vent
pipe (see page 36, figure 5).
If not possible a special venting kit is available (see page 41, chapter 16).
