DescripTion

5.1.

Area of application

• The 8232 sensors with a 4-20 mA output are used to measure
the chlorine concentration in liquids.
• The 8232 sensor with a 0-2 V output is used to measure the
chlorine concentration in liquids at very low concentrations.
The sensor must be installed in an analytical measurement chamber
type 8200.
6
english
Type 8232
Description
5.2.

Knowing the sensor

PG7 cable
gland
cap for terminal
strip
terminal strip
shaft
hose ring
(covers the
vent)
membrane membrane cap

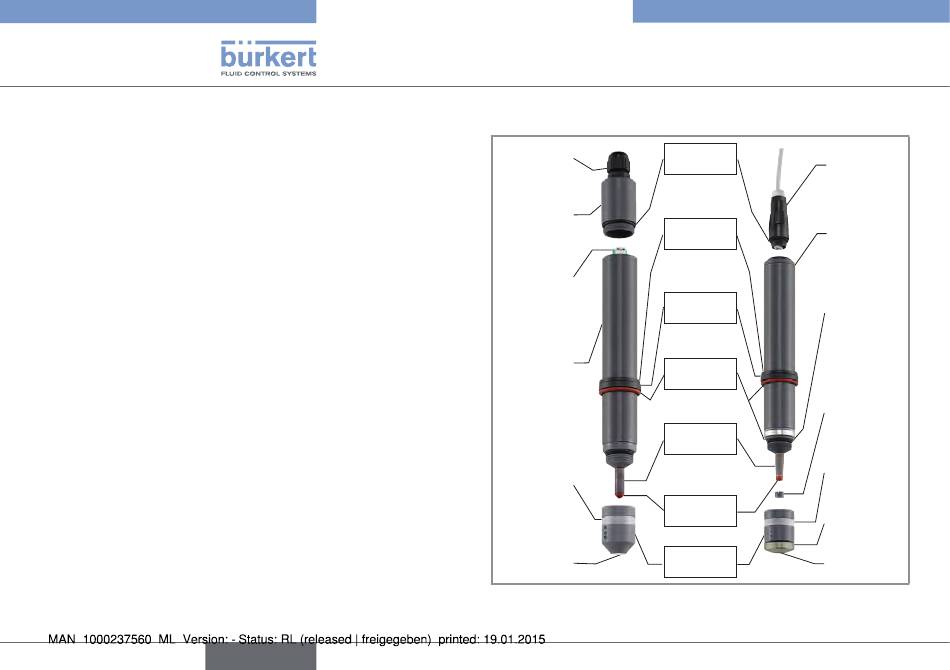

Fig. 1: Description of the sensor
4-pin connector
seal
with cable
(ordered
separately)
shaft
snap ring
counter
slide ring
electrode
seals
internal holder
("G-holder")
reference
electrode
hose ring
(covers the
vent)
working
membrane
electrode
holder
membrane
