nut
sampling
valve for DPD-
measurement
float
indicator
inlet ball valve
water inlet

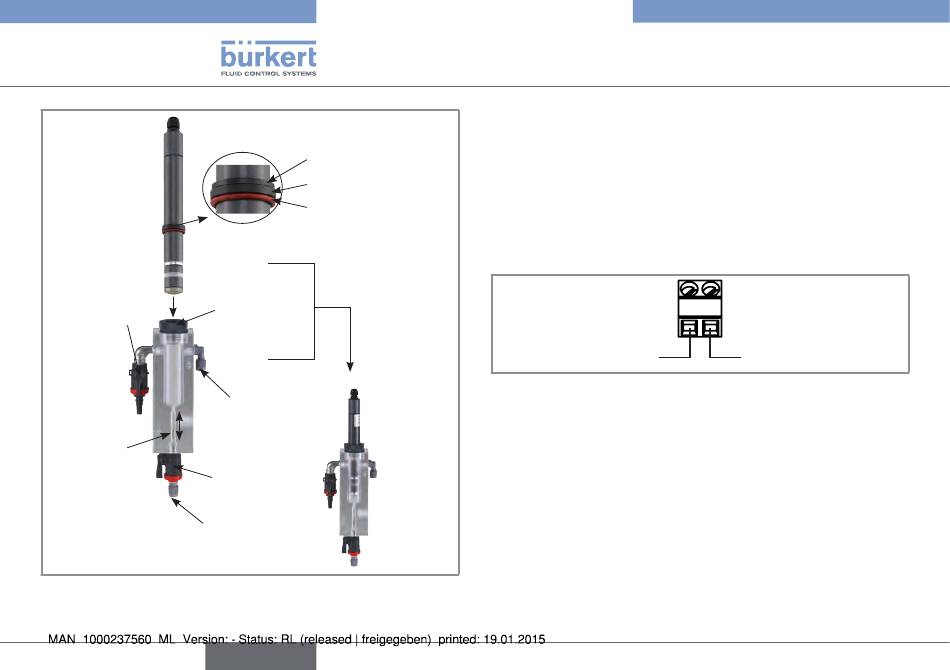

Fig. 2: Description of the installation of the sensor into the
analytical measurement chamber type 8200
16
snap ring
slide ring
seal
water outlet
english
Type 8232
Installationandwiring
7.4.

Wiring the sensor

7.4.1. Wiring the sensors with order codes
566051 and 566052
The sensors with order codes 566051 and 566052 have a 4-20 mA
current output.
The sensor is electrically fed by the remote controller the sensor is
connected to.
Negative power supply
Fig. 3: Terminal assignment of the sensors with order codes
566051 and 566052
→
Use cables with the following features:
• not shielded;
• 4 mm in diameter;
• 5 m max. length.
• wires with 0,25 mm in section
2
1.
Loosen the cap for the terminal strip from the shaft.
2.
Loosen the nut of the cable gland.
3.
Insert the cable through the nut then through the cable gland
then through the cap for the terminal strip.
- +
Positive power supply
