the left side according to phase label (L, N, ). The wire fixing and the bent clamp
have to be tightened finally, then the wire driving rubber has to be fitted to the lower
horizontal surface of the cover frame in a way that it has to protect electric parts
against any possible water inflow, after mounting the cover.

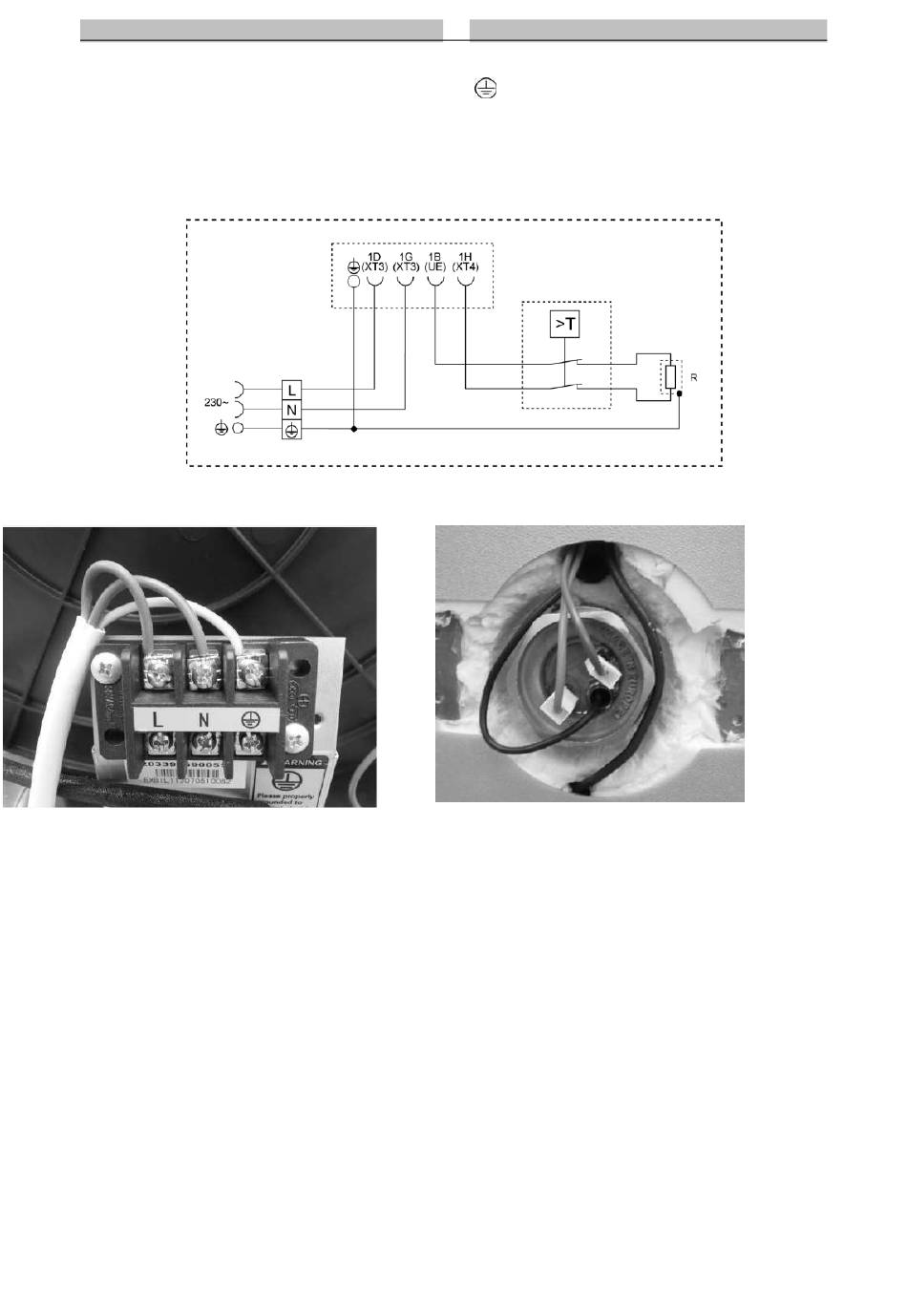

Figure 7.4.-1. shows the electric connection diagram of the hot water tank, which can
also bee seen on the cover of the fitting house.
Figure 7.4.-1.
Figure 7.4.-3.
Figure 7.4.-2.
.
The protective earthing has to comply with the instructions of IEC 60364.
