microDrain System Components

System Cable for
SeeSnake CCU
Case Latch
Pushrod
Guide
Front Case

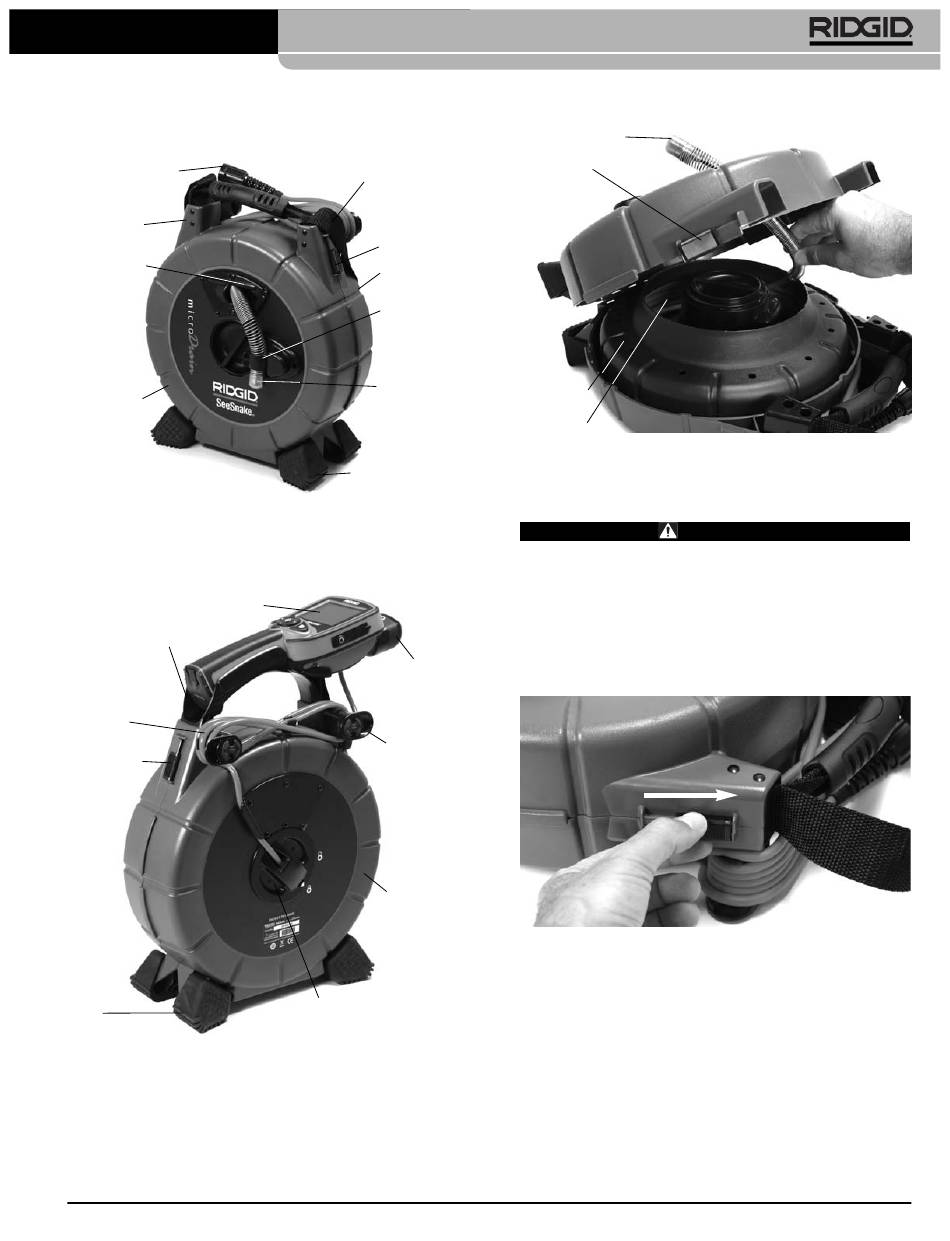

Figure 1 – Front View (SeeSnake Configuration)
microEXPLORER
Camera Monitor
microEXPLORER
Camera Monitor
Cradle
System Cable for
MicroEXPLORER
Camera Monitor
Case Latch
Feet
Figure 2 – Rear View (microEXPLORER Camera Monitor
Configuration)
SeeSnake
Shoulder Strap
Case Latch
Rear Case
Camera Clip
Camera Head
Feet
microEXPLORER
Camera Monitor
Connector Plug
Cord Wrap
Rear Case
Slip Ring Module
Ridge Tool Company
® microDrain™ Inspection System
Camera Head
Case Latch
Removable
Pushrod
Drum
Pushrod
Figure 3 – Inside Case

Assembly

WARNING
To reduce the risk of serious injury during use, follow
these procedures for proper assembly.

Camera Head Routing

1. Set the unit on a level surface.
2. Unfasten the case latches on either side of the
microDrain Reel (Figure 4) .
Figure 4 – Unlatching the microDrain Reel Case
3. Open the front case and locate camera head in the
pushrod drum.
4. Route the camera head out through the pushrod
guide in the front of the case and secure it in the pro-
vided clip (Figures 5 and 6) .
5. Close and re-latch the case.
