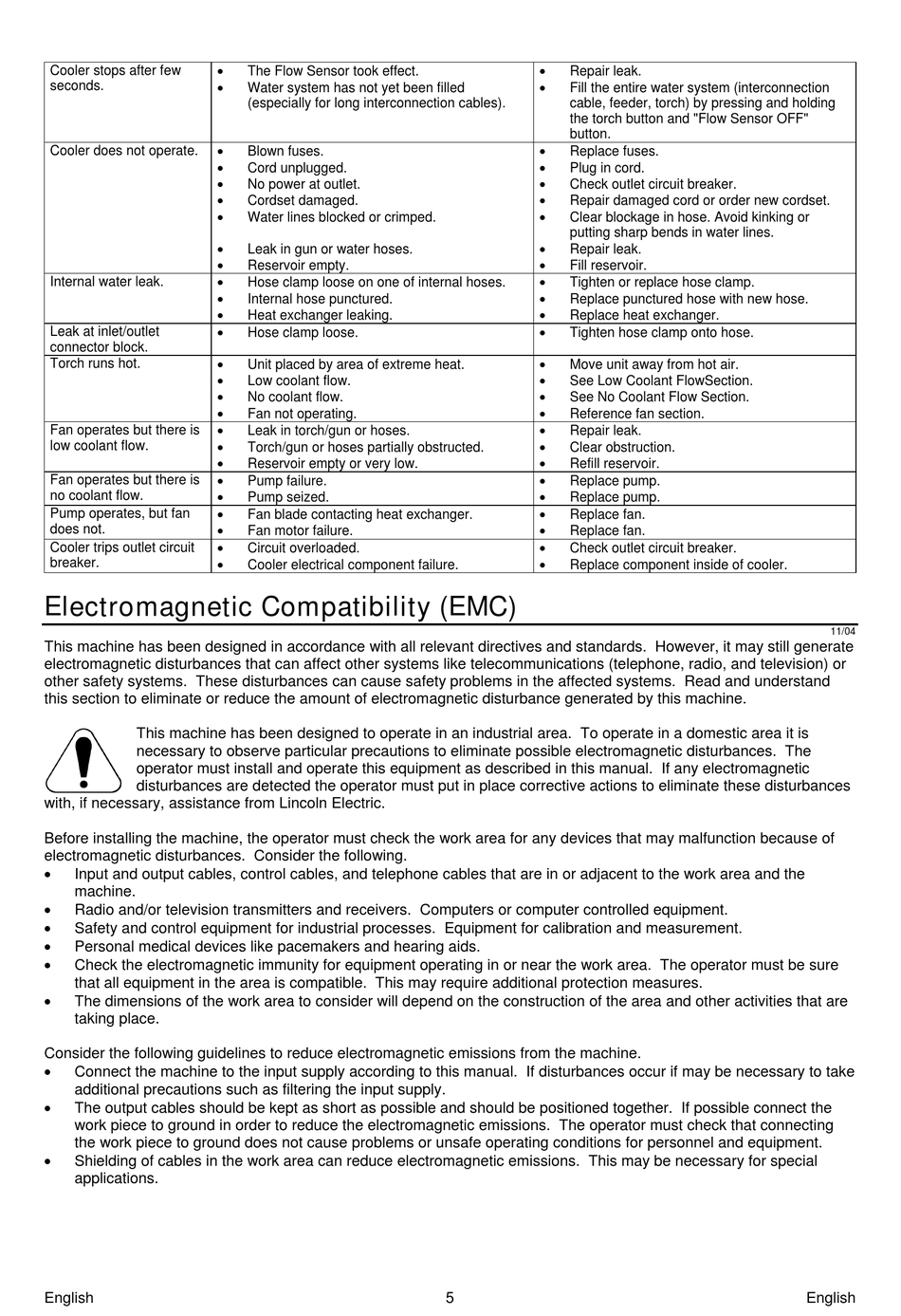

Cooler stops after few
seconds.
Cooler does not operate.
Internal water leak.
Leak at inlet/outlet
connector block.
Torch runs hot.
Fan operates but there is
low coolant flow.
Fan operates but there is
no coolant flow.
Pump operates, but fan
does not.
Cooler trips outlet circuit
breaker.

Electromagnetic Compatibility (EMC)

This machine has been designed in accordance with all relevant directives and standards. However, it may still generate
electromagnetic disturbances that can affect other systems like telecommunications (telephone, radio, and television) or
other safety systems. These disturbances can cause safety problems in the affected systems. Read and understand
this section to eliminate or reduce the amount of electromagnetic disturbance generated by this machine.
This machine has been designed to operate in an industrial area. To operate in a domestic area it is
necessary to observe particular precautions to eliminate possible electromagnetic disturbances. The
operator must install and operate this equipment as described in this manual. If any electromagnetic
disturbances are detected the operator must put in place corrective actions to eliminate these disturbances
with, if necessary, assistance from Lincoln Electric.
Before installing the machine, the operator must check the work area for any devices that may malfunction because of
electromagnetic disturbances. Consider the following.

Input and output cables, control cables, and telephone cables that are in or adjacent to the work area and the
machine.

Radio and/or television transmitters and receivers. Computers or computer controlled equipment.

Safety and control equipment for industrial processes. Equipment for calibration and measurement.

Personal medical devices like pacemakers and hearing aids.

Check the electromagnetic immunity for equipment operating in or near the work area. The operator must be sure
that all equipment in the area is compatible. This may require additional protection measures.

The dimensions of the work area to consider will depend on the construction of the area and other activities that are
taking place.
Consider the following guidelines to reduce electromagnetic emissions from the machine.

Connect the machine to the input supply according to this manual. If disturbances occur if may be necessary to take
additional precautions such as filtering the input supply.

The output cables should be kept as short as possible and should be positioned together. If possible connect the
work piece to ground in order to reduce the electromagnetic emissions. The operator must check that connecting
the work piece to ground does not cause problems or unsafe operating conditions for personnel and equipment.

Shielding of cables in the work area can reduce electromagnetic emissions. This may be necessary for special
applications.
English

The Flow Sensor took effect.

Water system has not yet been filled
(especially for long interconnection cables).

Blown fuses.

Cord unplugged.

No power at outlet.

Cordset damaged.

Water lines blocked or crimped.

Leak in gun or water hoses.

Reservoir empty.

Hose clamp loose on one of internal hoses.

Internal hose punctured.

Heat exchanger leaking.

Hose clamp loose.

Unit placed by area of extreme heat.

Low coolant flow.

No coolant flow.

Fan not operating.

Leak in torch/gun or hoses.

Torch/gun or hoses partially obstructed.

Reservoir empty or very low.

Pump failure.

Pump seized.

Fan blade contacting heat exchanger.

Fan motor failure.

Circuit overloaded.

Cooler electrical component failure.

Repair leak.

Fill the entire water system (interconnection
cable, feeder, torch) by pressing and holding
the torch button and "Flow Sensor OFF"
button.

Replace fuses.

Plug in cord.

Check outlet circuit breaker.

Repair damaged cord or order new cordset.

Clear blockage in hose. Avoid kinking or
putting sharp bends in water lines.

Repair leak.

Fill reservoir.

Tighten or replace hose clamp.

Replace punctured hose with new hose.

Replace heat exchanger.

Tighten hose clamp onto hose.

Move unit away from hot air.

See Low Coolant FlowSection.

See No Coolant Flow Section.

Reference fan section.

Repair leak.

Clear obstruction.

Refill reservoir.

Replace pump.

Replace pump.

Replace fan.

Replace fan.

Check outlet circuit breaker.

Replace component inside of cooler.
5
11/04
