7.6.1 How to open the housing

Loosen the 2 screws on the side, turn the cover and
the upper half of the body about the opening hinge
axis.

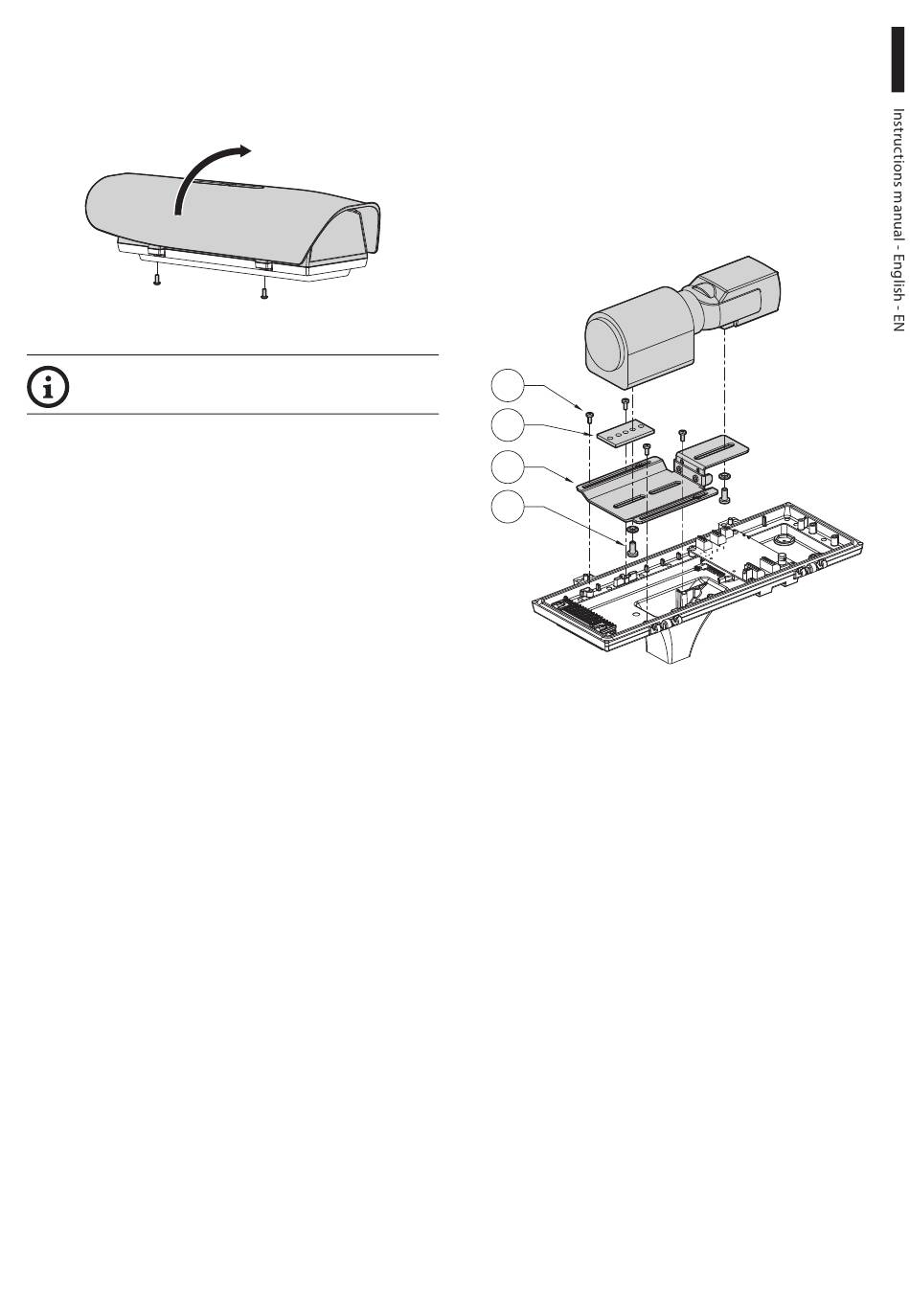

Fig. 7
After installation and wiring, close the
product again.
MNVCUPT3_1511_EN

7.6.2 How to install the camera

Take out the inner support slide (01) loosening the
fastening screws (02). Fasten the camera with the 1/4"
screw (03). Adjust the internal slide so that the lens
and camera are positioned correctly.
Fasten down the adjustable slide in the correct
position using the appropriate screws. When
positioning the camera use also the spacers supplied
for this purpose (04).
02
04
01
03
Fig. 8
Reposition the internal slide and tighten the screws
that had been loosened previously.
