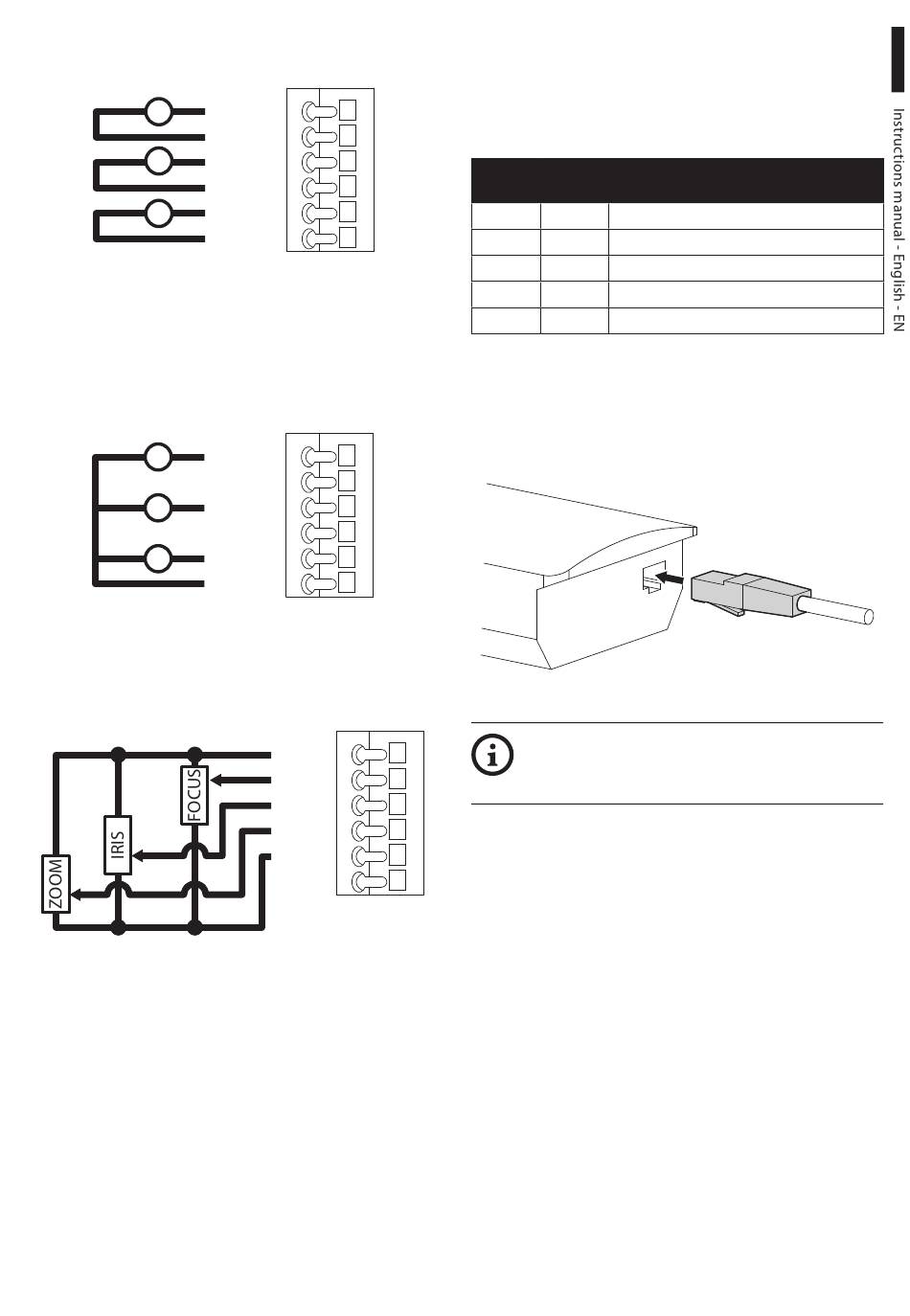

Lenses with reverse polarity motors: Implement
the connections, as shown in the figure..
+
M
+
M
+
M
Fig. 12
CN2.
Lenses with common wire motors: Enable the
relative menu option (10.1.13 Camera Parameters,
page 38). Implement the connections, as shown in
the figure..
+
M
+
M
+
M
Fig. 13 CN2.
Potentiometers: Implement the connections, as
shown in the figure..
Fig. 14 CN3.
MNVCUPT3_1511_EN
FOCUS +
FOCUS -
IRIS +
IRIS -
ZOOM +
ZOOM -
CN2
FOCUS +
FOCUS -
IRIS +
IRIS -
ZOOM +
ZOOM -
CN2
+ POT
FOCUS
IRIS
ZOOM
- POT
GND
CN3
7.7.2 Adjustment of the supply voltage
of the lens motors
Before powering the Pan & Tilt, select the lens power
voltage using DIP1 (7.7 Housing board description,
page 16).
ADJUSTMENT OF THE SUPPLY VOLTAGE OF THE LENS
MOTORS
SW1 SW2 Voltage
OFF OFF 15Vdc
ON OFF 12Vdc
OFF ON 9Vdc
ON ON 6Vdc
Tab. 3
7.7.3 Connection of the communication
line
Connect the Ethernet cable to the camera.
Fig. 15
Gather the excess cable to avoid it
interfering with the wiper operation (in the
versions in which they are available).
