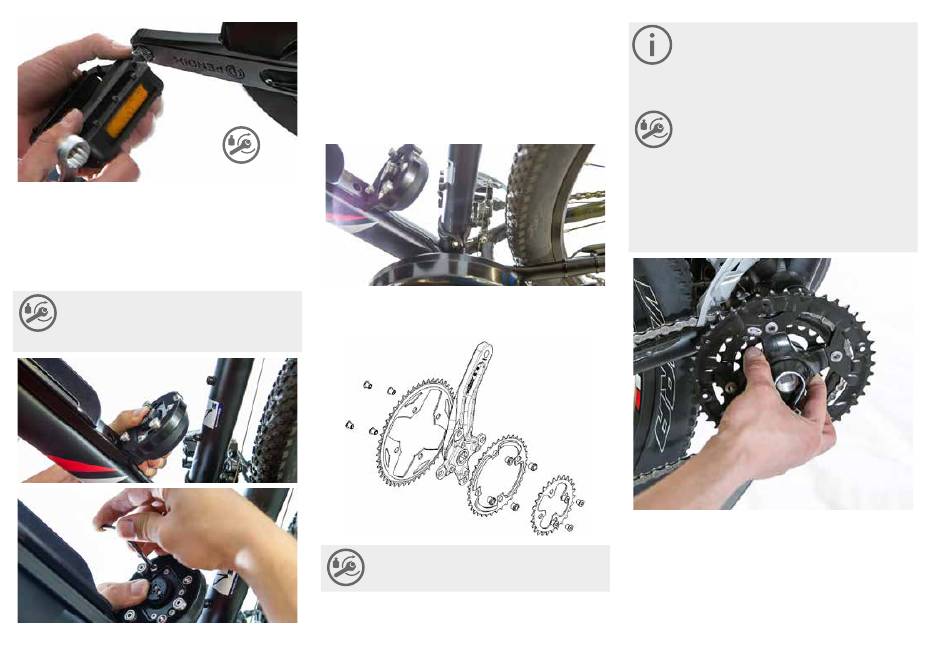

6.5 Cable connection

As shown in the illustration, insert the plug of the
wheel speed sensor and electronic bottom bracket
into the motor in the two fittings. It is not important to
know which plug must be used for either of the sen-
sors, the motor automatically recognizes each sensor.
Using the supplied M4x10 Torx-screws, at-
tach the connector cover to the battery hol-
der from below and tighten to a torque of
1.4 Nm +/- 0.5 Nm.
30
According to length and accessibility, you can lay out
the cable along or beside the frame tube. If necessary,
fix it with cable ties. When laying out and attaching
the cable, make sure it does not come into contact
with the motor, the pedals and rotating parts! The ca-
ble may otherwise be damaged. If the bicycle is a full
suspension bike make sure that the cable is not crus-
hed or abraded during suspension motion!
35 Nm +/- 2 Nm

6.6 Right-hand crank

You must attach the chain wheels before attaching the
crank to the bicycle.
Tighten the chain wheel screws to a torque of
9 Nm +/- 2 Nm.
The chain wheels and pedals are not deliver-
ed with the Pendix system. In other words,
you can use these parts of your bicycle if their
dimensions agree with the details given in the
„Requirements for installation" chapter.
Attach the right-hand crank with assembled
chain wheels and with applied chain on the
greased square shaft section. Tighten the
crank using the supplied crank screw to a
torque of 32 Nm +/- 2 Nm. The screw thread
should already have a thread locking for saf-
ety. If no locking is on the thread, use a stan-
dard liquid screw locking. Caution: check this
crank for correct positioning opposite the
crank on the other side.
