Pendix recommends attachment to available
holes in the frame. The drilling of new holes
can weaken the frame: it is a decision that
must be made by the technician. Pendix can
assume no responsibility for the safety /
duration of new attachments and resultant
possible frame damage.
In the case of a full suspension frame, neit-
her battery nor battery holder may come into
contact with any other parts of the constructi-
on due to suspension movements. Check to
see that sufficient cable length is available
for a correct and safe attachment of the bat-
tery holder.
In the case of a full suspension frame, neit-
her battery nor battery holder may come into
contact with any other parts of the constructi-
on due to suspension movements. Check to
see that sufficient cable length is available
for a correct and safe attachment of the bat-
tery holder.
26
If your frame has no thread for a bottle holder:
Have your battery holder attached by a me-
chanic / expert. Do not drill holes in very light
/ thin-walled frames and especially frames
made of composite materials (carbon frame)!
Drilling holes in such cases can cause broken
frames, falls and severest injuries.

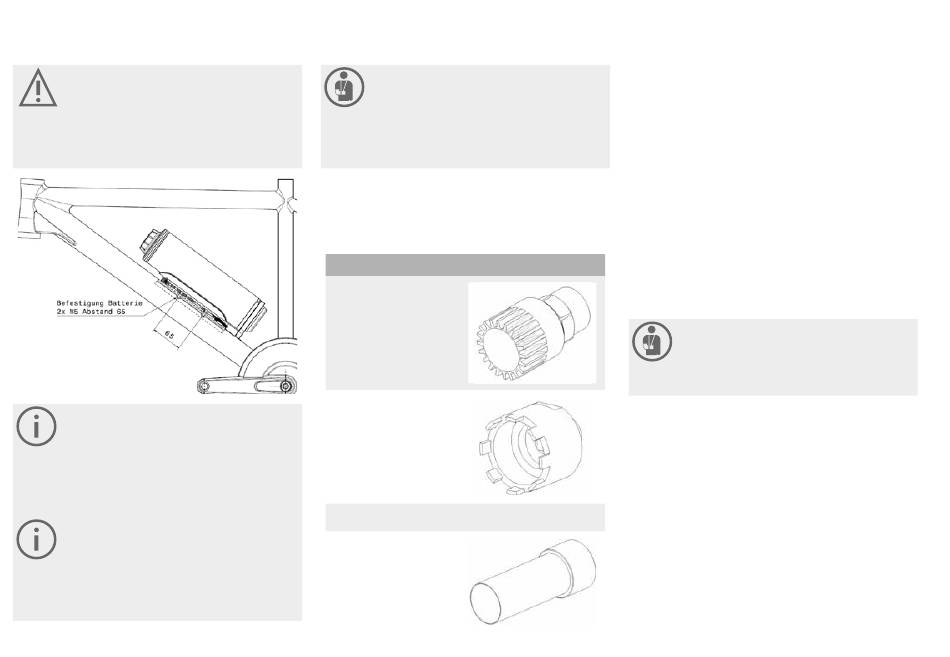

5.3 Special tools required

In order to mount the components, the following spe-
cial tools are necessary and can also be ordered from
Pendix. You will find further information in the Spare
Parts and Supplied Items List.
Mounting the Pendix:
Bottom bracket tool,
right side,
1 / 2" connection
Bottom bracket tool,
left side
1 / 2" connection
Allen key
Assembly help,
bottom bracket
Disassembly of already mounted components
Before you start installing the Pendix, you must remo-
ve the following parts from the bicycle:
• Crank on left
• Chain guard, if available
• Crank on right (including chain wheel)
• Bottom bracket
Proceed as follows:
1. If the pedals are to be used again, you must
remove them as first step
2. Remove the left crank arm
3. Remove the chain guard, if present
4. Remove the right-hand crank arm including the
chain wheel
5. Now take out the bottom bracket
Modern bicycle technology is high tech! Wor-
king in this field demands special training,
knowledge, experience and special tools as
well! If you are unqualified, do not carry out
this work on your bicycle by yourself!
